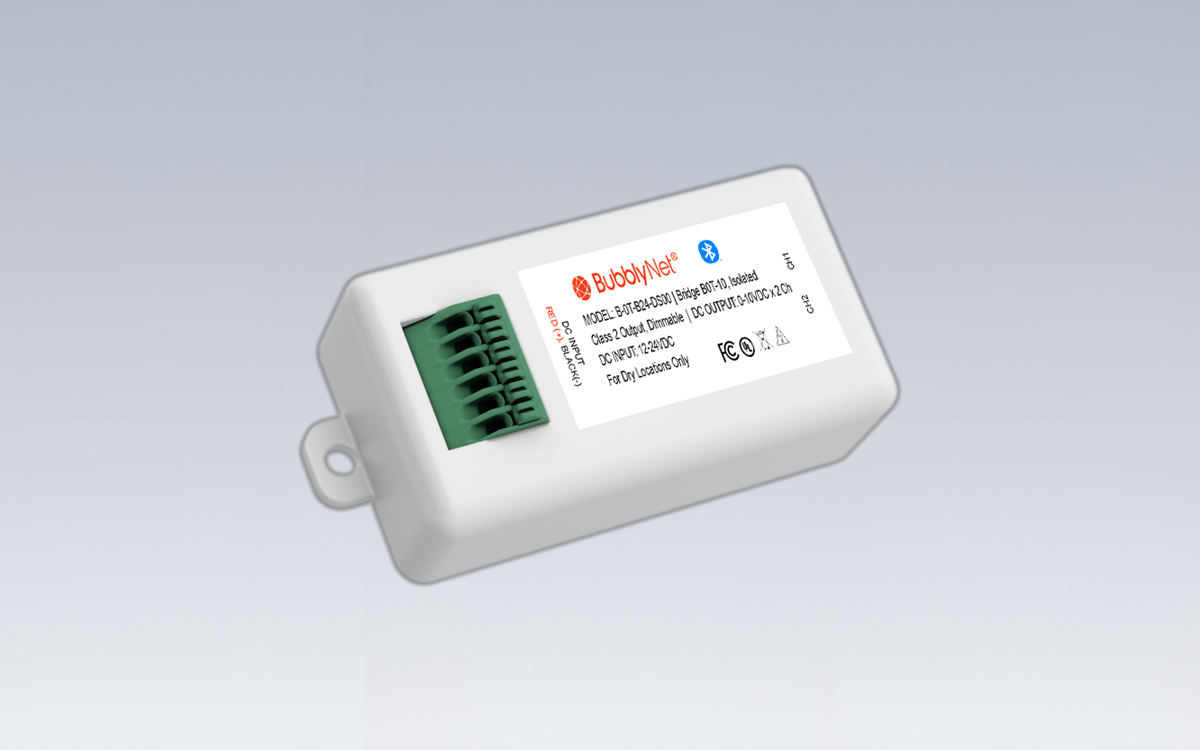

The C-T2C-24-DS00 is a 2-channel tunable white LED controller that transforms two standard 0-10V drivers into a Bluetooth® Mesh node, enabling wireless control and smart lighting functionality. Using its dual-channel architecture, the controller mixes two different light sources—typically warm and cool white—to achieve tunable white or direct/indirect lighting effects. By converting conventional 0-10V devices into intelligent Bluetooth®-enabled components, the controller allows seamless integration into modern lighting control networks without the need for a gateway or additional hardware.
Compact and versatile, the C-T2C-24-DS00 can be installed in various locations, including inside lighting fixtures, junction boxes, within its own UL-listed enclosure, or remotely. It operates on a 12–24VDC power supply and provides two independent 0–10VDC output channels for dimming control. Each channel can manage a separate driver, allowing flexible configuration of tunable white systems or multi-driver applications. The unit is designed for reliable operation across a temperature range of 4°F to 140°F (-10°C to 60°C) and measures 3.25” x 1.5” x 0.875” (82.5 x 38 x 22 mm), offering an efficient and compact solution for both retrofit and new lighting installations.
Setup and integration are straightforward. The controller’s DC input wires connect to a 12–24V power source, while its dual-channel outputs connect to the corresponding 0-10V drivers. Upon powering up, the device automatically begins broadcasting non-provisioned Bluetooth® advertising messages, signaling its availability for network inclusion. Using the BubblyNet App, installers can quickly identify, provision, and commission the controller by assigning security keys, addresses, and other necessary configuration parameters. Once added to the Bluetooth® Mesh network, the C-T2C-24-DS00 can be configured to publish and subscribe data, enabling full interoperability with other Bluetooth® Mesh devices regardless of brand or manufacturer.
As a Bluetooth® Mesh Qualified device, the C-T2C-24-DS00 supports programmable dimming curves and soft ON/OFF transitions for smooth, precise control of tunable white lighting systems. Its wireless architecture eliminates the need for gateways, simplifying installation while maintaining robust network communication and scalability. Ideal for architectural, commercial, and residential lighting applications, the C-T2C-24-DS00 provides a flexible, reliable, and smart solution for implementing Bluetooth® Mesh-based tunable white control within modern lighting environments.
