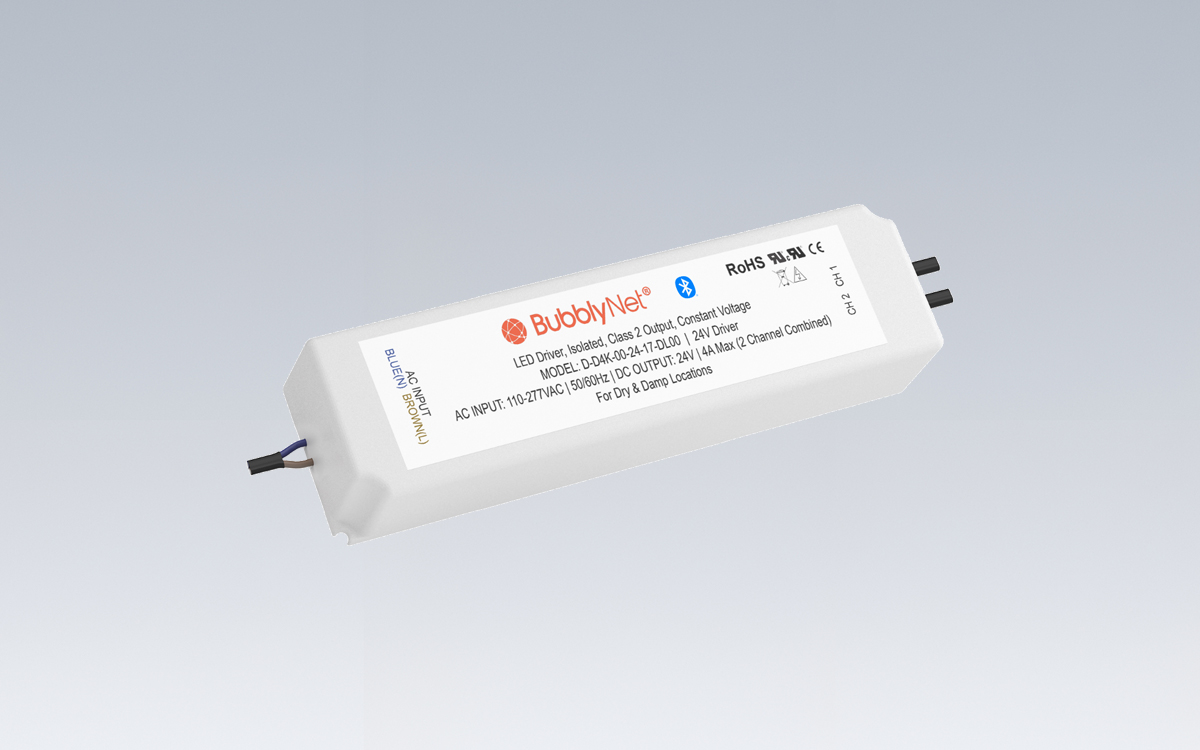

This dual-channel LED driver is a wireless control device built for tunable white LED lighting systems or independent dual-channel configurations. It operates entirely through Bluetooth® connectivity, eliminating the need for a gateway, and serves as a flexible solution for both standalone projects and larger, integrated mesh networks. Acting as two drivers in one, it enables precise control and mixing of different light sources to achieve dynamic tunable white effects across a wide range of applications.
Operating on an input voltage range of 110–277VAC, the driver outputs a stable 24VDC with a maximum combined DC output current of 4A. The unit supports a maximum AC input current of 1A and incorporates comprehensive protection features against overcurrent, short circuit, overvoltage, and overtemperature conditions to ensure reliability and long-term performance. The compact driver measures 7.5” x 2.125” x 1.5” (190.5 x 54 x 38mm), with an optional housing available for installations requiring a larger format at 14.75” x 3.125” x 1.75” (364.65 x 80 x 44.5mm).
Installation is straightforward. The universal AC input wires connect directly to the main line, while the DC output wires connect to the tunable white color channels. Once powered, the driver automatically broadcasts its identification code, signaling that it is ready to be discovered and commissioned using the Bubblynet App. During the provisioning process, the app connects to the driver, assigns security keys and addresses, and prepares the unit to join the Bluetooth® Mesh network. After joining, the driver can be configured for publishing and subscribing data within the network to synchronize with other connected devices.
For optimal performance in mesh environments, drivers should be installed within 30 feet of the nearest Bluetooth® Mesh device to maintain strong signal integrity. Metal barriers, such as enclosures or mounting surfaces, can reduce Bluetooth® signal strength and should be avoided whenever possible. Once provisioned, the LED driver functions as a reliable component of a scalable and intelligent lighting control system, supporting smooth tunable white transitions and flexible configuration without the complexity of external gateways or wired control interfaces.
