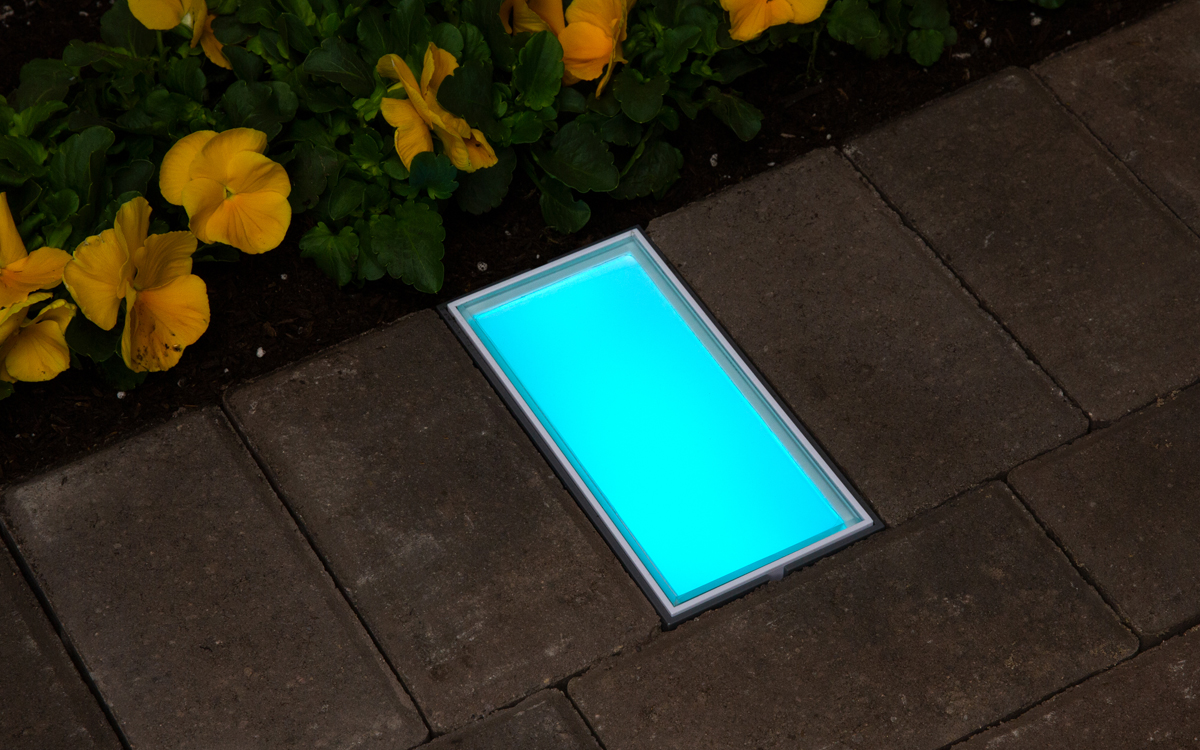

The HP-48 in-grade paver light is a sturdy and sleek fixture that offers a wide range of creative lighting possibilities for both classic and contemporary design applications. Engineered to be drive-over rated, the HP-48 seamlessly integrates with standard paver systems, making it an excellent choice for pathways, landscapes, and other outdoor environments. Constructed with highly durable polycarbonate housing and tempered glass lens, the fixture features a dark slate finish that complements natural surroundings while providing long-lasting performance.
At the core of the HP-48 is an integrated Cree LED module equipped with gold-plated connectors and a conformal coating to ensure maximum reliability and corrosion resistance. The fixture includes proprietary onboard intelligent drivers with firmware-controlled temperature regulation, which maximizes LED lifespan up to 55,000 hours. MoistureBlock™ technology in the socket prevents moisture from wicking into the sealed fixture areas, enhancing durability in challenging outdoor conditions. The light operates on an input voltage of 10 to 15 volts and requires a remote transformer, which must be specified separately.
This in-grade light supports compatibility with Luxor® technology, enabling zoning, dimming, and color control when used with the appropriate options. The ZD and ZDC control options allow grouping of fixtures into up to 250 zones, dimming in 1% increments, and access to a palette of up to 30,000 colors with RGBW LEDs. The standard HP-48 fixture is zoneable with Luxor, while advanced zoning, dimming, and color features require the ZD or ZDC options. It is phase and PWM dimmable, further enhancing its adaptability for dynamic lighting designs.
Designed for direct-burial installation, the HP-48 weighs 2.2 pounds and is approved for drive-over applications in accordance with IES 60598-1 standards, supporting loads up to 4,496 lbf (20 kN). The injection-molded polycarbonate housing includes structural ribs for added strength, and the dark slate color is impregnated into the material to maintain its appearance over time. Operating temperatures range from -20°F to 122°F (-29°C to 50°C), ensuring reliable performance in various climates.
Sustainability is a key focus in the design and manufacturing of the HP-48. Where possible, recycled materials are used without compromising functionality. The LED technology offers optimal energy efficiency, long lifespan, and durability to provide high-quality illumination with minimal environmental impact. The fixture comes with a 10-year limited warranty and meets international compliance standards, including IEC 60598-1 and IEC 60598-2-7 when ordered with the “e” version.
Overall, the HP-48 in-grade light is a highly versatile and robust lighting solution, ideal for enhancing outdoor spaces with reliable, efficient, and customizable illumination that integrates seamlessly into paver systems and landscapes.
