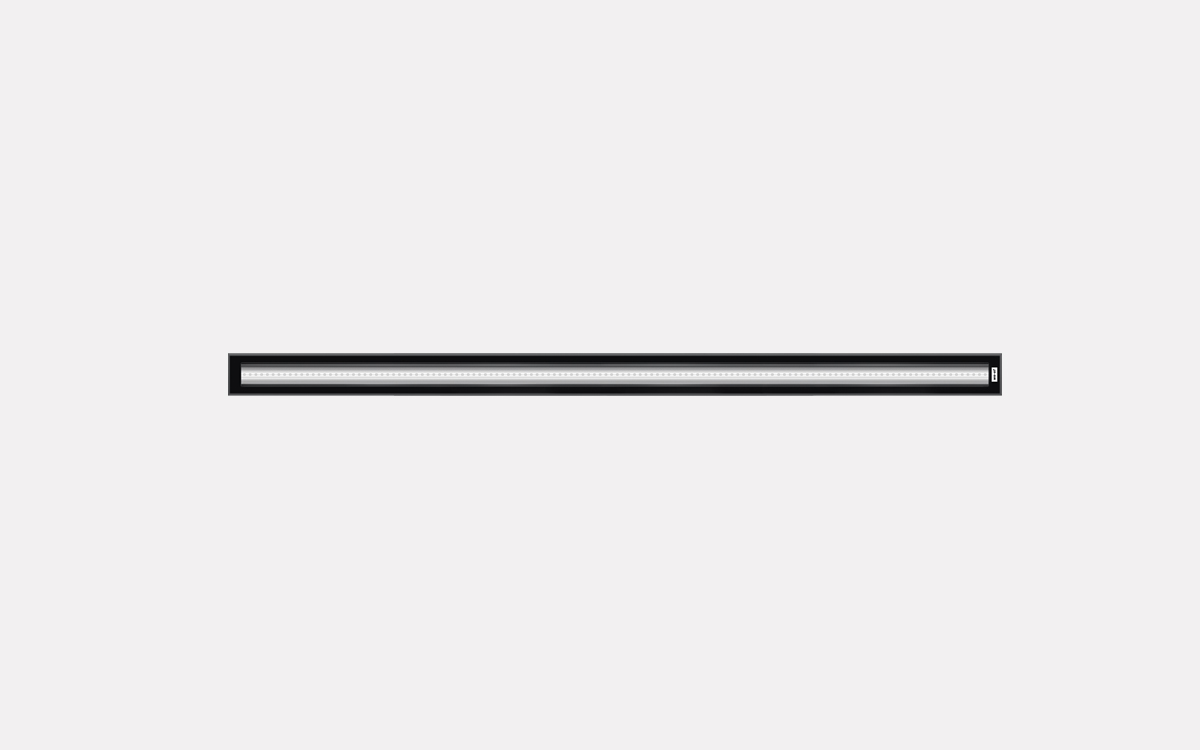

The ETV140-CC LED is a high-performance RGBW color-changing linear luminaire designed for architectural and landscape lighting applications where durability, control, and visual impact are essential. Built with a marine-grade all-aluminium construction and anodized aluminium extrusion, the fixture features PCS polymer-coated stainless steel hardware, a silicone rubber gasket, and a robust safety glass lens, ensuring long-lasting protection in demanding environments. It carries an IP67 ingress protection rating, is additionally tested to IP66, IP68 (0.1 bar for 3 hours, up to 1m depth), and IP69K (80°), and is rated IK08 for impact resistance.
This in-ground luminaire is engineered to withstand light vehicular traffic and static loads. It can be safely driven over at low speeds (without turning or accelerating) by vehicles with air-filled tires, supporting weights up to 5 tonnes per wheel, and is rated for a maximum static load of 3 tonnes in accordance with DIN EN 60598-2-13. The fixture is factory-sealed and includes a sealed termination chamber complete with a cable gland, 0.5 meters of flexible cable, and a sealable junction box (SJB), facilitating secure and efficient installation.
The optical system includes a linear PMMA LED lens offering a range of beam options: symmetric linear beams in very narrow (LEE), narrow (LE), medium (LM), and wide (LB), as well as asymmetric wallwash distribution (LA10), supporting versatile lighting design for facades, walkways, and architectural outlines.
Inside, the ETV140-CC LED is powered by an integral electronic converter with DMX interface, housed in a thermally-separated compartment to ensure optimal performance and longevity. The LED boards are factory-installed and can be easily removed for future upgrades. With a power factor greater than 0.9 and a voltage range of 220-240V at 50-60 Hz, it delivers consistent, efficient performance.
For proper installation, an optional mounting blockout is recommended and must be ordered separately. While the luminaire is built to resist harsh outdoor conditions, it is not suitable for permanent underwater use and must be switched off in the event of flooding. The ETV140-CC LED is a durable, flexible, and intelligent lighting solution for dynamic color-changing applications in architectural and urban environments.
