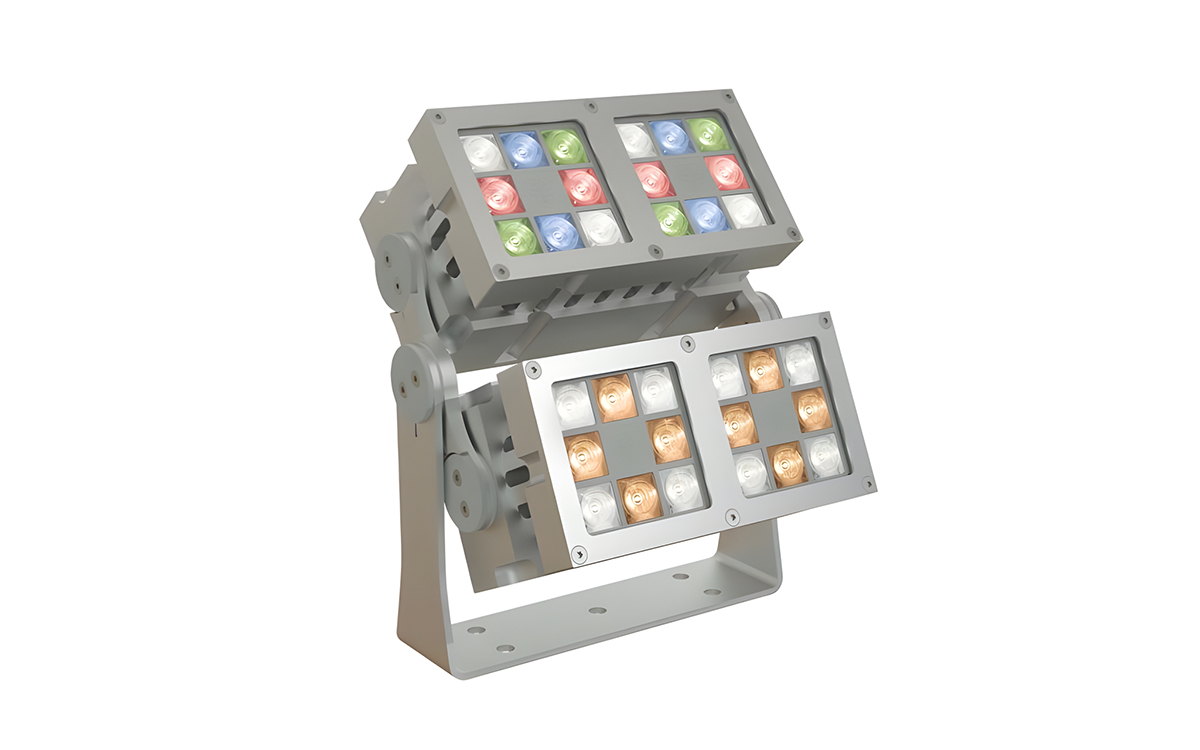

The Revo XXL ColourFlow DMX LED floodlight offers lighting designers unprecedented creative freedom. This innovative fixture allows you to choose multiple colors within a single unit—whether that means two different colors per section or four distinct light types—making it possible to craft truly unique lighting effects. Each section is individually DMX controllable, enabling combinations like two RGBA sections for deeply saturated hues paired with two white light sections for crisp, high-quality white illumination, or four RGBW sections for powerful, vibrant color output. This versatility sets your designs apart with unparalleled customization.
Built with a robust 80-watt power rating and an IP67 rating for outdoor use, the Revo XXL is a surface-mounted fixture housed in a massive, CNC-cut anodized aluminum body that ensures durability and heat management. Its unique design features two fixtures combined in a single housing, allowing for different color choices and beam angles per section, giving lighting professionals an extraordinary level of control. The bracket construction provides precise adjustment and alignment of the light beam, while a Gore-Tex membrane integrated in the ventilation gland helps prevent condensation inside the fixture, maintaining optimal performance.
The Revo XXL is highly configurable, with over 800 possible configurations available. Designers can quickly create their customized version on the manufacturer’s website in just 30 seconds. Additionally, the fixture includes fast, easily interchangeable optics with various lens options ranging from narrow to wide beam angles, including 8º, 12º, 30º, 60º, 80º, and an asymmetrical 12x46º. Installation is straightforward thanks to fully integrated electronics, eliminating the need for external drivers. The fixture connects via a 5-core DMX combi cable and Wago connectors, simplifying setup.
With a lightweight design of 5750 grams and a flexible swivel range of 360° horizontally and 270° vertically, the Revo XXL operates reliably within ambient temperatures from -10ºC to 40ºC. It uses high-power LEDs with a CRI greater than 80, available in RGB-W 3000K, RGB-W 4000K, and RGB-A color options. The power supply supports 100~240 VAC with an internal driver included. Dimming options are versatile, including Casambi, DMX512, and Wireless DMX control. The fixture comes with a 200 cm cable with an open end, and it is certified with CE, rated IP67, and classified under protection class 3. It boasts a long lifetime of 50,000 hours with an L90B10 rating at that mark, supported by a 3-year warranty. Advanced technologies such as Dynamic Power Control and Dynamic Temperature Control further enhance performance, while accessories like a snoot are available for beam shaping. Overall, the Revo XXL ColourFlow DMX floodlight delivers unmatched flexibility, durability, and precision for professional lighting applications.
