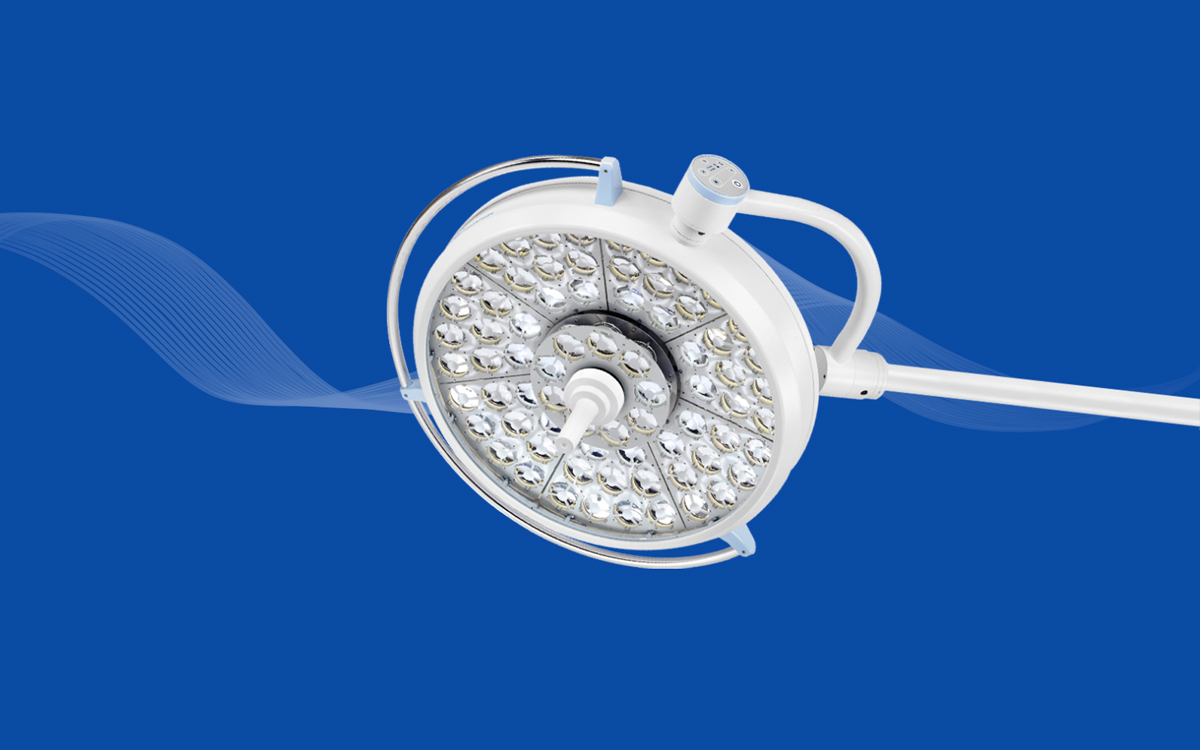

The Pentaled 63N LED surgical light is a premier model in RIMSA’s Series N, distinguished by its manual focus and diameter adjustment capabilities that are fully accessible directly from the sterilizable handle. This allows surgeons to make precise, real-time modifications to the light field without compromising the sterile environment, ensuring optimal illumination at every stage of the procedure. The 63N employs advanced indirect lighting technology, which significantly reduces glare, minimizes shadows, and expands the effective light-emission surface, delivering a safe and comfortable visual environment even during the most complex surgical interventions.
Optically, the Pentaled 63N is built around 72 elliptical reflectors arranged across eight modules, each containing nine high-quality white LEDs. This configuration, combined with a sophisticated reflected-light system, produces a true scialytic effect, offering three-dimensional, shadow-free illumination. Surgeons benefit from exceptional contrast and clarity, with the ability to tailor the focus and beam diameter mechanically by rotating the sterilizable handle. The light field can be adjusted between 160 and 300 millimeters, providing precise control for both large and highly localized operative areas.
Lighting control is highly versatile, with intensity adjustable from 5% to 100%, allowing for a maximum illuminance of 160,000 Lux at one meter. The 63N offers two selectable color temperatures, 4,500 K and 5,000 K, enabling clinicians to match lighting to tissue tone, personal preference, or procedural requirements. For minimally invasive and endoscopic procedures, the Endoled Mode provides soft, adjustable-color illumination that preserves ambient visibility while maintaining orientation within the operative field.
Measuring 63 centimeters in diameter, the Pentaled 63N is the second-largest surgical light in RIMSA’s portfolio, providing extensive coverage for multidisciplinary operating rooms. Its optical and ergonomic features, including 3D Light technology, indirect lighting, and manual focus and diameter adjustments, make it suitable for a wide range of surgical disciplines, including cardiac surgery, abdominal and thoracic surgery, general surgery, neurosurgery, maxillofacial surgery, and proctology.
Designed for durability and long-term performance, the Pentaled 63N LED surgical light features a long-life LED system with over 60,000 hours of operation and precise dimming capability to accommodate varying surgical requirements. Its combination of large coverage, customizable light control, shadow-free illumination, and advanced optical engineering ensures that surgeons have a reliable, high-quality light source for demanding clinical environments.
