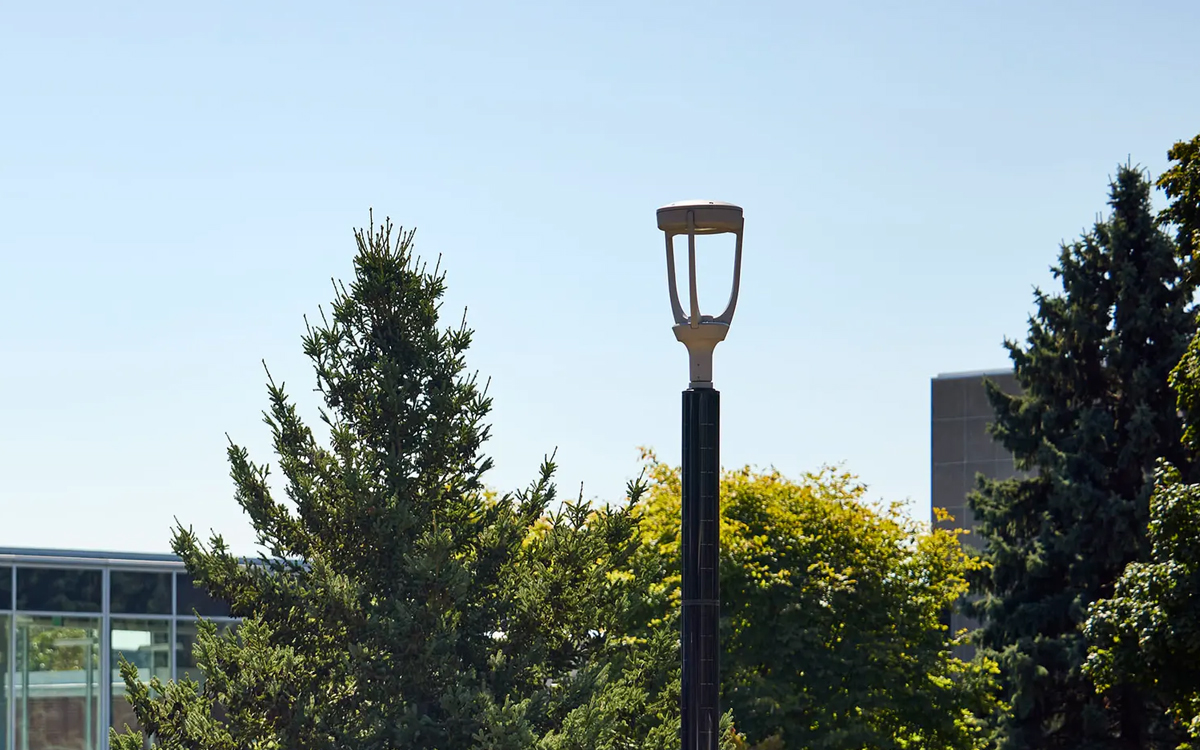

The Northport 360 Solar Post Top Light is a sophisticated solar-powered lighting solution designed to deliver grid-free, high-efficiency performance in both historical and modern public environments. Its unique cylindrical solar array captures sunlight from all directions, maximizing energy generation even in northern climates and during overcast or adverse weather conditions. This solar design is paired with an intelligent, autonomous control system that utilizes machine learning to adjust energy usage based on environmental conditions, ensuring consistent and reliable output even in low-light scenarios.
Aesthetic and functional considerations converge in the Northport’s design, which pays homage to the classic American ‘acorn’ style while meeting modern performance standards. The fixture subtly references this nostalgic form through its negative space, avoiding the traditional drop lens in favor of a streamlined, dark sky-compliant profile. Northport serves a wide range of applications beyond pedestrian settings, including streetscapes and transit environments, and is officially recognized as International Dark-Sky Approved.
Built with durable cast aluminum housing, the fixture incorporates a factory-sealed, field-replaceable light engine cartridge protected by a UV-stable, impact-resistant clear acrylic lens. The borosilicate glass surface of the solar modules resists the accumulation of dust and snow, further enhancing system efficiency. Each fixture is IP66 rated, while the solar control unit housed within the pole meets IP67 standards for weather resistance.
The 360 Solar system includes one to three monocrystalline silicon solar modules (four available on request), each capable of producing over 110 Wp with cell efficiencies exceeding 24%. The modules are pre-wired with MPPT (Maximum Power Point Tracking) controllers and feature a durable borosilicate glass exterior. The solar control unit, enclosed in marine-grade anodized aluminum, contains all control electronics, a high-efficiency LED driver, and a Lithium-NMC battery, with options for 850 Wh or 1275 Wh capacities, designed for a service life of approximately 10 years.
The high-output light engine delivers up to 192 lumens per watt and a maximum of 6400 lumens, with multiple roadway distribution types available. All configurations support 2700K, 3000K, and 4000K color temperatures with CRI >80, and other color temperatures are available on request. The system meets TM21 standards with L70 and L90 lifespans exceeding 60,000 hours at maximum operating current.
Advanced smart features are embedded throughout the system, including GPS/GNSS (supporting GPS, BeiDou, Galileo, GLONASS, and QZSS), a global M2M eSIM, and both over-the-air and USB update capabilities. The integrated HelioSync™ dimming algorithm enables intelligent adaptation to sunrise and sunset patterns, with additional dimming profiles available upon request. Remote monitoring and configuration are supported, and the unit comes Smart City-ready with a five-year service plan included (ten-year option available).
The accompanying pole is constructed from seamless aluminum alloy with a flush-mounted, oversized, and lockable handhole cover. Poles are pre-drilled to match specific mounting requirements and finished with powder coating after fabrication. The cast aluminum base plate includes nut covers and is supplied with galvanized anchor bolts conforming to ASTM F1554 Grade 55. All mounting hardware is included, ensuring easy and secure installation.
Northport 360 Solar exemplifies the seamless integration of heritage-inspired design with modern, off-grid, solar-powered lighting performance.
