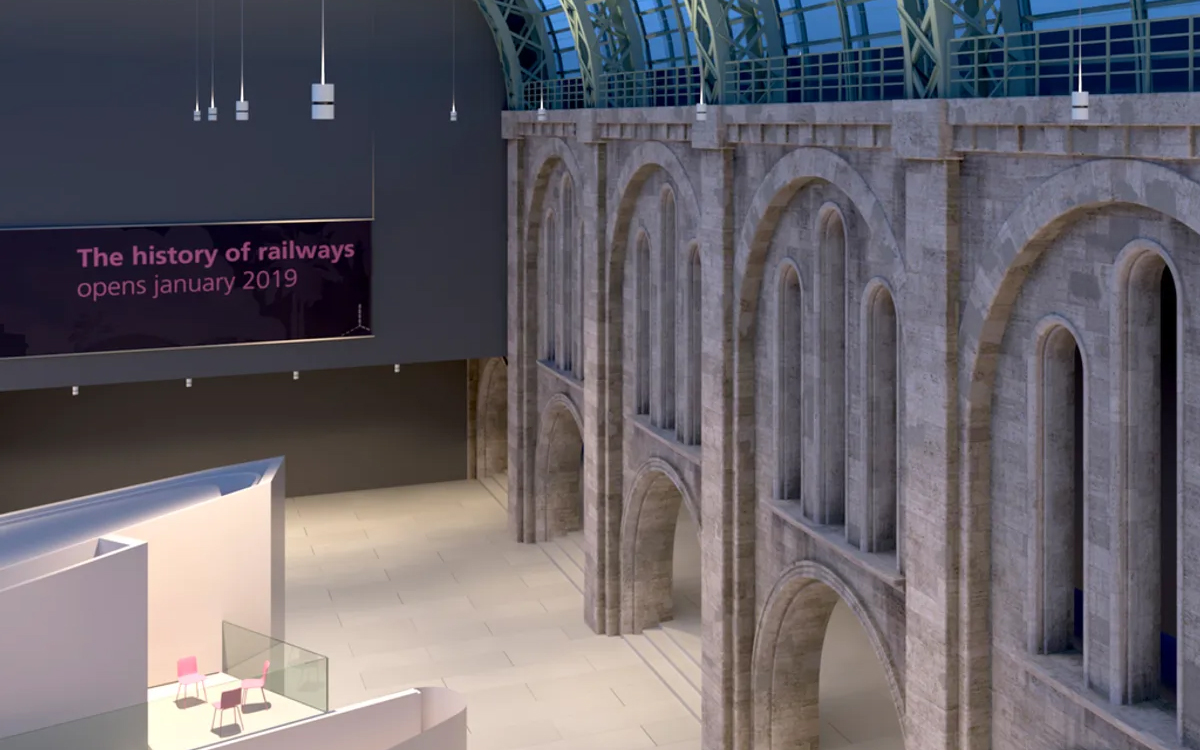

Atrium double-focus luminaires from ERCO are designed specifically for spaces with high ceilings, such as foyers, atriums, public buildings, theatres, and sacred spaces. Their elegant cylindrical housing is not only functional but also visually distinctive, featuring a light-tight ventilation gap that adds to the design’s architectural appeal. These luminaires excel in providing precise and efficient illumination from large heights, thanks to their narrow downlight distributions that focus light exactly where needed without spill. This is particularly beneficial in large-volume interiors, where controlling glare and ensuring adequate brightness is critical.
To enhance ambiance and reduce contrast, Atrium luminaires are also available with an optional indirect lighting component that softly reflects light off the ceiling, emphasizing room height and providing a more comfortable and atmospheric environment. The fixtures are lightweight and can be suspended from the ceiling using their power cable, making installation straightforward, even in challenging spaces. A variety of finishes are offered, including black or silver anti-glare cones, which ensure visual comfort and harmonize with different architectural palettes.
At the heart of Atrium’s performance is ERCO’s in-house developed LED module, which uses high-power LEDs available in warm white (2700K or 3000K) and neutral white (3500K or 4000K). This module, combined with a precision-engineered collimating lens made of optical polymer, delivers consistent and glare-controlled illumination. Below, a Spherolit lens provides flood or wide flood distributions, while a textured polymer diffuser softly uplights the ceiling. The optical system’s superior control allows Atrium to achieve large lumen packages while maintaining high visual comfort, a critical need in demanding visual environments such as auditoriums and lecture halls.
The luminaire’s aluminum cylindrical body, offered in white, black, or silver, is powder-coated for durability and features an interior finish in black or matte silver to optimize light control. A choice of 30° or 40° cut-off angles further refines glare reduction. The system supports multiple control options, including switchable, phase dimmable (trailing edge), and DALI dimmable, with dimming levels precise down to 0.1%—ideal for environments requiring finely tuned light levels.
For uniform general lighting, ERCO recommends a luminaire spacing (d) of approximately half the mounting height (h) above the working plane (d = h/2). This spacing guideline ensures even illumination across the space. When using the indirect light component, suspending the luminaire at least 0.5 meters below the ceiling increases visual comfort by enhancing vertical brightness with diffusely reflected light. Additionally, for optimal wall illumination and room proportioning, a suggested wall offset is equal to half the luminaire spacing (a = d/2).
Altogether, the Atrium double-focus pendant luminaires provide a powerful, elegant, and energy-efficient solution for high-ceiling applications requiring both architectural sophistication and precise illumination control.
