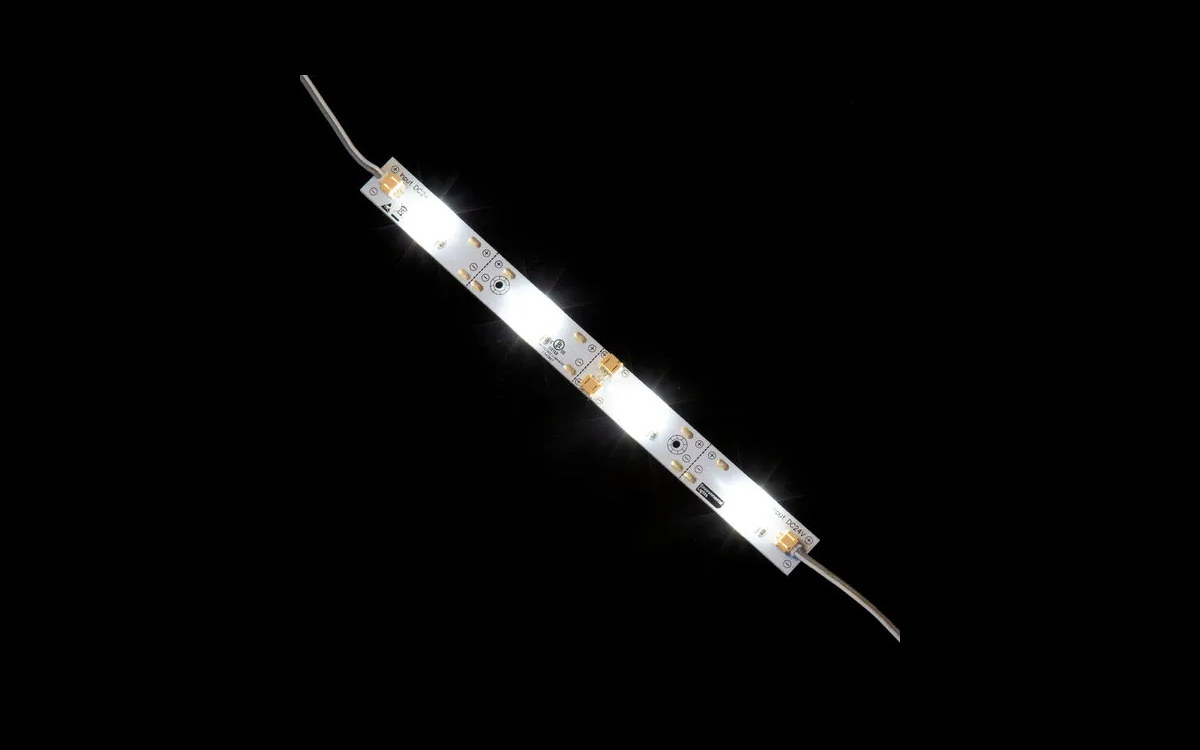

Cuttable 160 Degree LED Lattice Bars are a versatile and high-performance backlighting solution designed to meet the demanding needs of light boxes, sign cabinets, and similar applications where wide and even light distribution is essential. These lattice bars are UL Listed, ensuring safety and reliability in commercial installations, and are specifically engineered to deliver high-quality illumination with exceptional consistency.
Each bar incorporates premium LEDs with an integrated optical lens that diffuses light across a wide 160° beam angle, eliminating hotspots and providing smooth, uniform coverage. At 5000K, the color temperature offers a bright, neutral white light that is ideal for signage, retail, and display applications. For projects that require additional brightness, a high-output version is available, allowing users to tailor the performance to their lighting environment. The bars are designed to match seamlessly with the Performance Line LED Lattice Bars, making it easy to extend or upgrade existing installations without compromising color or output consistency.
Customization is one of the defining features of these lattice bars. They can be cut to size at designated cut points between each LED, allowing installers to create precise lengths to fit unique light box or cabinet dimensions. For large-scale projects, linking bars together is simple thanks to four integrated 2-pin PH connectors on each bar—two located at the ends and two in the middle. This flexibility ensures that complex layouts can be wired quickly and efficiently, especially when paired with optional PH2, 2mm pitch connector accessories that are available separately. Circular mounting holes further streamline installation by providing a secure, reliable mounting option.
Measuring 240 mm (9.45 inches) in length and just 8 mm in height, each lattice bar delivers a brightness of 315.8 lumens while consuming only 3.6 watts of power, resulting in an efficacy of 21.9 lumens per watt. With a CRI of 90+, these bars ensure vivid and accurate color rendering, an essential feature for retail displays and brand signage where true color representation is critical. The design supports linking up to 21 bars in a single run with a maximum current limit of 3.2A, making them suitable for larger installations while maintaining stable and efficient performance.
Engineered for durability, the bars operate within an ambient temperature range of -20°C to 40°C and carry a 3-year limited warranty. They are built with 2835-size LED nodes spaced 60 mm apart, rated at IP20 for dry indoor environments, and meet UL, CE, and RoHS certifications. With reliable 24V DC input, robust construction, and adaptable design, Cuttable 160 Degree LED Lattice Bars provide a professional-grade backlighting solution that balances flexibility, energy efficiency, and superior light quality for both standard and performance-driven applications.
