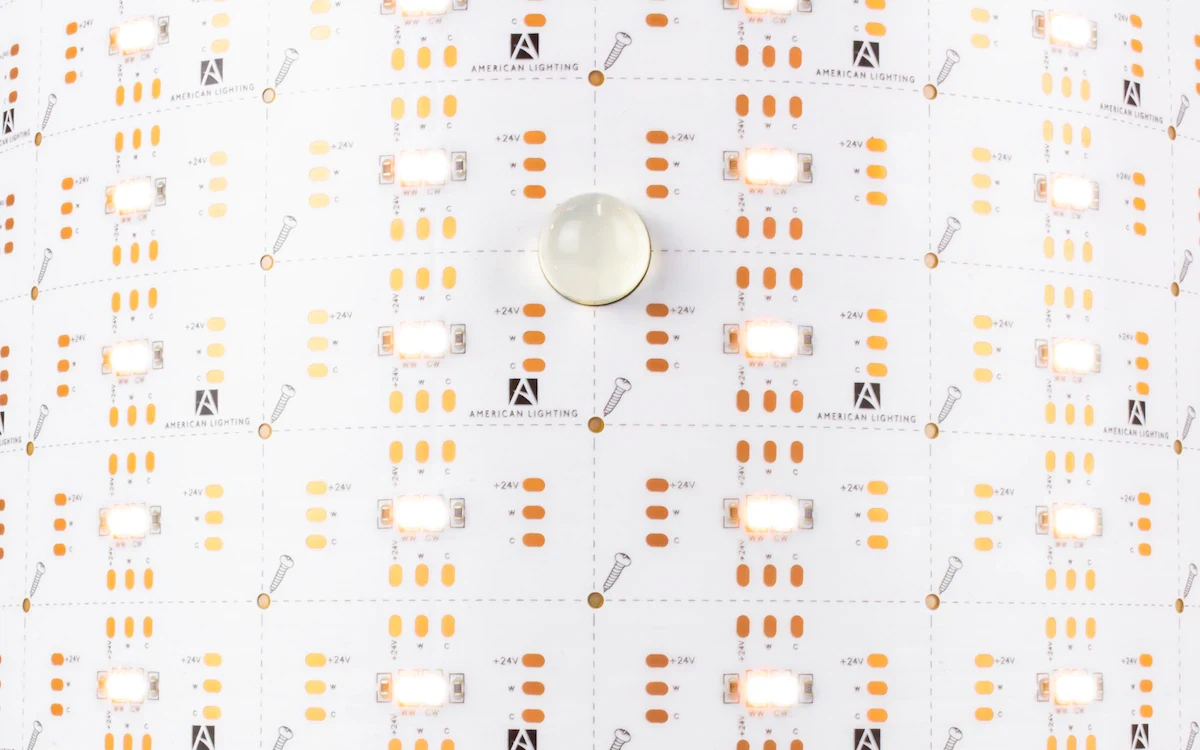

The Trulux Canvas Light Sheet in the 12-by-24-inch tunable white configuration is a versatile, high-quality backlighting solution designed to enhance semi-transparent countertops, decorative panels, and architectural features with smooth, even illumination. Its thin profile and innovative design allow for seamless integration into a wide range of interior applications, providing a clean, modern lighting effect. Each sheet can be cut on-site along the clearly marked 2-by-1-inch increments, ensuring a perfect fit for custom dimensions and complex layouts. Integrated half-inch spacers elevate the surface material above the LEDs, producing a balanced, diffused glow that highlights the natural textures of the illuminated surface.
With a tunable white color temperature range from 2700K to 6000K, the Trulux Canvas Light Sheet offers complete flexibility to create lighting that transitions from warm ambient tones to bright, cool illumination. Delivering up to 1,800 lumens per sheet and featuring a high CRI of 90+, it ensures accurate color rendering and exceptional visual quality. The 120-degree beam spread provides wide, even coverage, while 3M peel-and-stick backing enables fast and secure installation. Built-in terminal ports allow power to be connected from any side, providing versatility in wiring design.
Durability is enhanced by the inclusion of integrated ½-inch stand-offs spaced every 8 inches, each rated to support 35 pounds, giving the sheet a total load capacity of 220 pounds. Operating at 24V DC with a maximum run of 96W and consuming just 20W per sheet, the fixture is energy efficient while maintaining robust performance. Rated for 50,000 hours of use and backed by a 5-year limited warranty, it ensures long-term reliability in both residential and commercial environments.
The Trulux Canvas Light Sheet is IP54 rated for protection against dust and splashing water, cULus listed for safety, and approved for damp location use. With a lightweight design of just 1.9 pounds and a slim 0.47-inch profile, it is easy to handle and install in tight or delicate spaces. Capable of operating in temperatures from -20°C (-4°F) to 45°C (113°F) and offering smooth PWM dimming from 5% to 100%, it is an adaptable, high-performance lighting solution for a wide variety of backlighting and architectural lighting applications.
