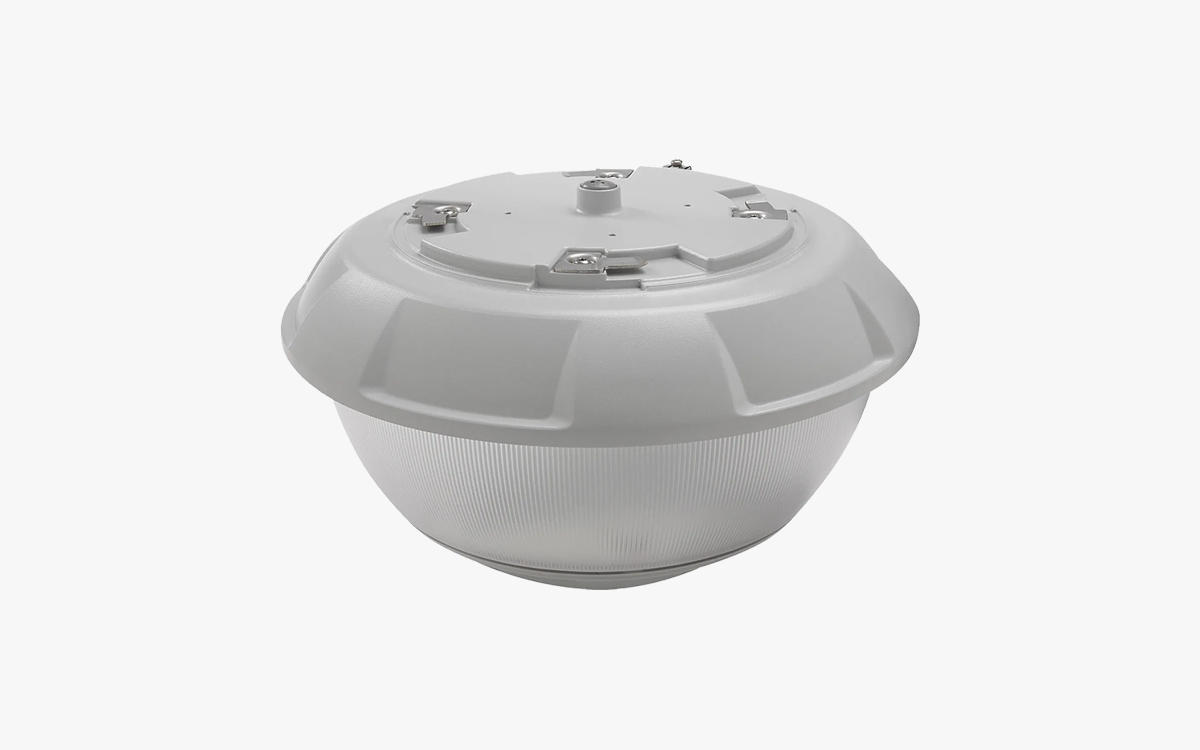

The VG Series parking structure luminaire from Cree Lighting is engineered to deliver optimal, low-glare illumination with a revolutionary indirect optical system that eliminates direct view of the LEDs. This advanced lighting design incorporates a high-efficiency internal reflector and a precisely designed optical lens, ensuring consistent uniformity and maximum light control. The architectural aesthetic, combined with a lightweight, low-profile housing and streamlined installation process, makes the VG Series an ideal solution for both new construction and retrofit applications in parking garages.
Delivering between 3,770 and 5,700 initial lumens while consuming just 33 to 54 watts of power, the VG Series offers exceptional energy efficiency with efficacy up to 114 lumens per watt. Designed to replace up to 175W HID fixtures, it provides significant energy and maintenance savings over time. The luminaire is available in 3000K, 4000K, and 5700K CCT options with a minimum 70 CRI, and finish color choices include black, bronze, silver, and white, all treated with Cree Lighting’s exclusive Colorfast DeltaGuard® finish for long-lasting resistance to corrosion, UV degradation, and abrasion.
Constructed from rugged die-cast aluminum with an integrated, weathertight LED driver compartment and a high-performance heat sink, the VG Series is built to perform reliably in demanding environments. The fixture’s optical system features indirect LED arrays with a precision-engineered lens and optional internal white or specular reflectors that provide either Type V Medium or Type V Wide light distribution. Additionally, it delivers 20% uplight for increased ambient illumination in structured environments.
The VG Series supports multiple mounting configurations to meet diverse installation needs. The direct mount includes a factory-installed 3-foot power cord and mounting bracket for attachment to any appropriate surface. The J-box mount is compatible with standard 4-inch electrical boxes, and the pendant mount features extended wiring and is designed for installation via a ¾-inch IP pendant. Regardless of the configuration, installation is fast and hassle-free.
Electrically, the VG Series supports input voltages of 120-277V, 347V, or 480V at 50/60Hz and delivers a power factor greater than 0.9 and total harmonic distortion under 20% at full load. It comes standard with 6kV surge suppression protection and 0-10V dimming capabilities, supporting smooth integration with external control systems. The luminaire operates effectively in temperatures ranging from -40°C to +40°C (-40°F to +104°F).
The VG Series is cULus Listed, IP66-rated (with JB or PD mounts), and suitable for wet locations. It meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions and complies with ANSI C136.2 surge protection requirements. Some configurations are BAA and BABA compliant and RoHS compliant. Bluetooth®-enabled multi-level sensor options and Zhaga® socket compatibility further extend the VG Series’ capabilities for intelligent lighting control. Select models are DLC Standard qualified, offering additional value for energy rebate programs. Assembled in the USA using both domestic and imported components, the VG Series comes backed by Cree Lighting’s 10-year limited warranty, ensuring long-term performance and peace of mind.
