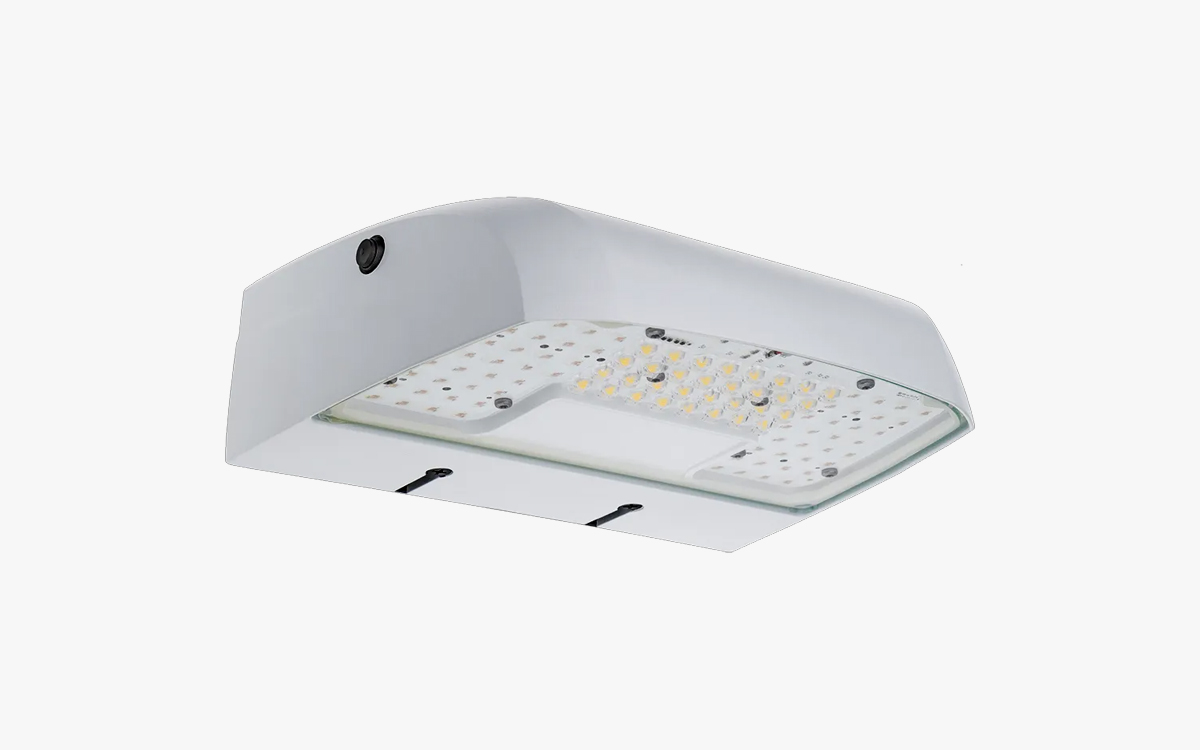

The OSQW™ wall mount luminaire from Cree Lighting is engineered for superior visual comfort and high-efficiency illumination. Featuring patented NanoComfort® Technology, this luminaire significantly reduces glare while delivering precise light distribution exactly where it’s needed. Its sleek, low-profile design is optimized for outdoor wall-mounted applications, offering a visually consistent, architecturally integrated appearance. Built for reliability and ease of use, it allows for through-wired or conduit entry from the top, bottom, sides, and rear, supporting flexible installation over standard or mud-ring single gang junction boxes. A durable, rugged aluminum housing paired with a mounting box designed for LED technology ensures thermal efficiency and long-lasting performance, with an optional emergency battery backup available for added security and compliance.
Offering light output ranging from 1,860 to 8,600 lumens and a wattage range of 16 to 55 watts, the OSQW replaces up to 250W metal halide fixtures while achieving efficacies up to 159 LPW. It is offered in a wide range of color temperatures—including 1900K, 2700K, 3000K, 4000K, 5000K, and 5700K—with CRI options of 50, 70, and 90. Color finish options include black, bronze, silver, and white, all protected by the exclusive Colorfast DeltaGuard® finish for resistance against corrosion, UV degradation, and abrasion. Rated IP66 and suitable for wet locations, the OSQW is designed for both performance and durability in demanding outdoor environments.
The luminaire includes dimming capabilities via a 0–10V control system and supports Bluetooth® Technology Enabled controls, along with multi-level sensors and photocells. Versions with Z1 options include a DALI D4i driver for expanded control compatibility. The electrical system features an input voltage of 120–277V or 347–480V and a power factor greater than 0.9 at full load. It also includes standard 10kV/5kA surge protection, with optional 20kV/10kA surge protection available. Total harmonic distortion is kept below 20% at full load, and the design meets ANSI C137.1-2019 standards for dimming controls.
NanoComfort® Technology utilizes a compact 4x4 LED array, where each LED is paired with its own acrylic polymer lens, carefully sculpted to control and direct light while minimizing harsh glare. The result is a soft, visually comfortable output that doesn’t compromise on performance. For luminaires featuring 5000K CCT, Cree’s TrueWhite® Technology further enhances color rendering and consistency by delivering 90+ CRI light with exceptional efficacy and lifespan.
The OSQW is engineered for long-term durability, meeting rigorous industry standards including IP66 (IEC 60598), IK09 impact rating (IEC 60068-2), ANSI C136.2 surge protection, ANSI C136.31 vibration resistance, and UL924 compliance for the emergency battery option. It is also FCC Part 15 Class A compliant and has been endurance-tested to withstand 5,000 hours of elevated ambient salt fog conditions (ASTM B117). The luminaire is assembled in the USA from US and imported parts, meets Buy American Act (BAA) requirements as a COTS item, and is RoHS compliant.
This wall mount fixture is DLC Premium qualified, with select configurations approved for DLC LUNA and DarkSky compliance when ordered with specific CCTs (19K5, 27K7, 30K7). Whether for general area illumination, security lighting, or environmentally sensitive projects, the OSQW™ wall mount luminaire delivers outstanding performance, advanced optical control, and a visually comfortable lighting experience designed for modern exterior applications.
