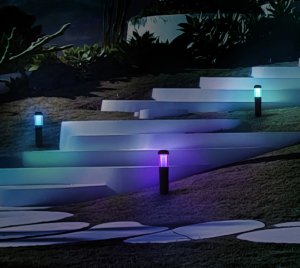

The OSQP™ LED Pathway/Bollard with NanoComfort® Technology from Cree Lighting offers a modern, high-performance solution for landscape, walkway, and general site lighting. Designed to replace traditional 50-100W PSMH bollards, it delivers between 1,440 and 2,830 lumens with an impressive efficacy of up to 142 lumens per watt, all while consuming just 11 to 22 watts of power. This highly efficient luminaire is part of the OSQ family, providing a consistent visual style across site lighting applications.
NanoComfort® Technology is at the heart of the OSQP design, offering superior glare reduction, enhanced visual comfort, and precise optical control. Each LED module contains a 4x4 array of LEDs, each paired with a dedicated acrylic polymer lens sculpted into precision facets that optimize both performance and comfort. This advanced lighting technology provides crisp, well-controlled illumination, making it ideal for pedestrian zones and landscaped areas where comfort and aesthetics are critical.
The OSQP bollard's durable die-cast aluminum housing mounts cleanly to a 4-inch diameter pole (included), maintaining a sleek appearance with no visible mounting hardware. The internal flange is secured using three 3/8"-16x6" anchor bolts with a 1-1/4" hook, ensuring stable installation. The pole also features a concealed wiring path and includes QR codes for quick access to installation documentation, warranty information, and product specifications.
This luminaire is available in several CCT options—1900K, 2700K, 3000K, 4000K, 5000K, and 5700K—with CRI choices of 50 or 70, depending on the selected color temperature. The OSQP’s construction includes a clear tempered glass lens over an acrylic optic, and models with 2R or 3R distributions include rotatable optics for field-adjustable light direction. Cree’s exclusive Colorfast DeltaGuard® finish ensures exceptional resistance to corrosion, UV degradation, and abrasion, with finishes available in black, bronze, silver, and white.
The luminaire supports a full range of controls and dimming options, including 0-10V dimming, high/low settings, occupancy sensors, and a button photocell. It operates on standard 120-277V input, with optional 347V or 480V via step-down transformer. With a power factor over 0.9 and total harmonic distortion under 20%, it also includes integral 10kV/5kA surge protection. Designed for reliability, the OSQP operates across a broad temperature range of -40°C to +55°C (or -20°C to +45°C with EB option).
The OSQP pathway/bollard is UL listed, IP66 rated for wet locations, meets vibration and surge protection standards (ANSI C136.31 and C136.2), and complies with FCC Part 15, Subpart B. It is RoHS compliant and endurance-tested against salt fog exposure as per ASTM B117 standards. For projects requiring Buy American Act (BAA) or Build America, Buy America (BABA) compliance, select configurations qualify. The luminaire is also DarkSky Approved when ordered with 1900K, 2700K, or 3000K CCTs.
Assembled in the USA by Cree Lighting using U.S. and imported parts, the OSQP LED Pathway/Bollard combines architectural appeal, rugged durability, and outstanding performance, making it a smart solution for any modern outdoor lighting application.
