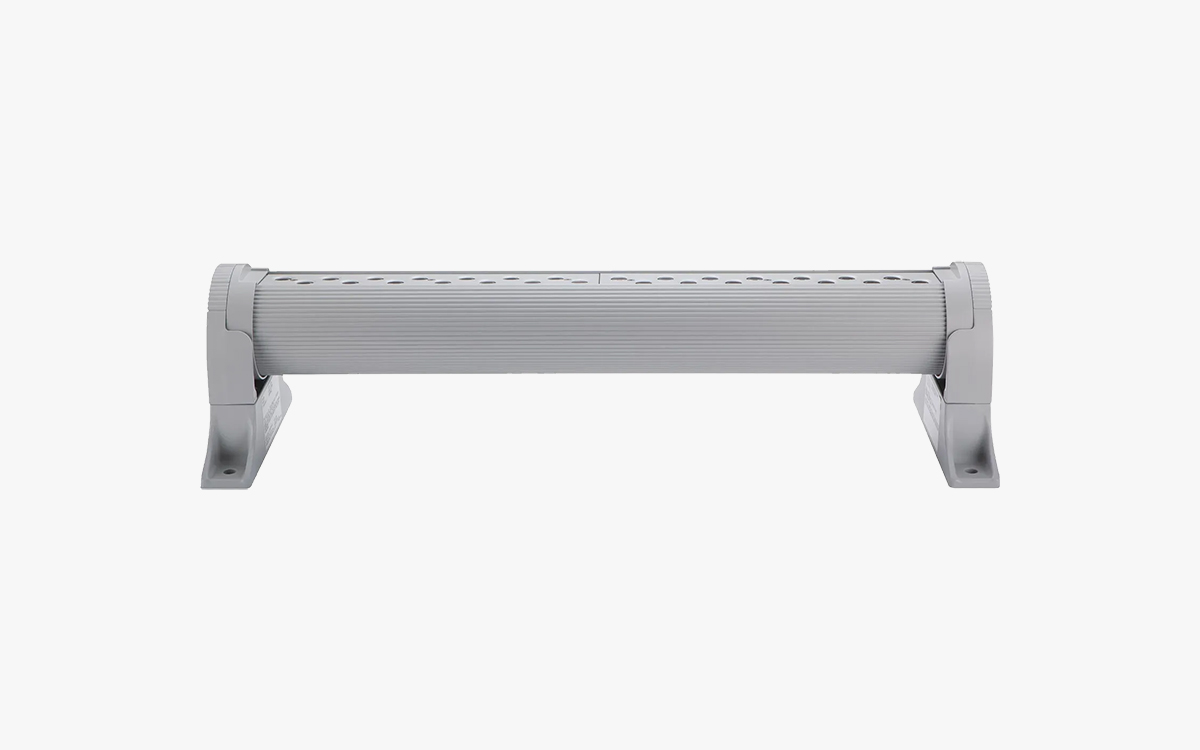

The OL Series Flood luminaire from Cree Lighting combines a sleek, low-profile aesthetic with robust performance, delivering uniform illumination and energy efficiency in a form that integrates effortlessly into any architectural or landscape setting. Designed for reliability and long-term savings, this luminaire features a rugged die-cast aluminum housing and end caps for superior durability and thermal management. The integral weather-tight LED driver compartment and high-performance heat sinks ensure consistent operation in demanding environments, while the patented NanoOptic® Product Technology provides precise, high-quality light distribution.
With a broad light output range of 1,048 to 20,328 lumens and input power ranging from 19 to 251 watts, the OL Series offers exceptional versatility for various exterior lighting applications such as building facades, accent lighting, and signage. It delivers up to 80 lumens per watt and is available in color temperatures of 3500K, 4000K, and 5700K, with CRI options of 70 or 80 depending on the CCT. The luminaire's body can be rotated 360 degrees in 5-degree increments, allowing for precise aiming. Index marks on the end caps aid in accurate adjustment. Optional extruded aluminum arms are available to extend the luminaire up to 18 inches from the mounting surface, enhancing design flexibility.
Built for strength and ease of installation, the fixture includes rugged die-cast mounting pads and a 36-inch outdoor-rated flexible cord for electrical connection. It supports input voltages of 120-277V or 347-480V at 50/60Hz and features Class 1 drivers with a power factor greater than 0.9 and total harmonic distortion below 20%. An integral 10kV/5kA surge suppression system provides standard protection against electrical transients, and the luminaire meets ANSI surge protection testing requirements.
The OL Series is engineered to perform reliably in wet locations and harsh conditions, meeting IP66 standards per IEC 60529 and undergoing endurance testing to withstand 5,000 hours of salt fog exposure per ASTM B117. It is cULus listed, FCC Part 15 Class A compliant, RoHS compliant, and assembled in the USA from domestic and imported components. With Cree Lighting’s exclusive Colorfast DeltaGuard® finish—an E-Coat epoxy primer topped with an ultra-durable powder coat—the fixture resists corrosion, UV degradation, and abrasion, and is available in silver, bronze, black, or white finishes. Backed by a 10-year limited warranty, the OL Series Flood luminaire delivers reliability, efficiency, and visual appeal for long-term outdoor lighting solutions.
