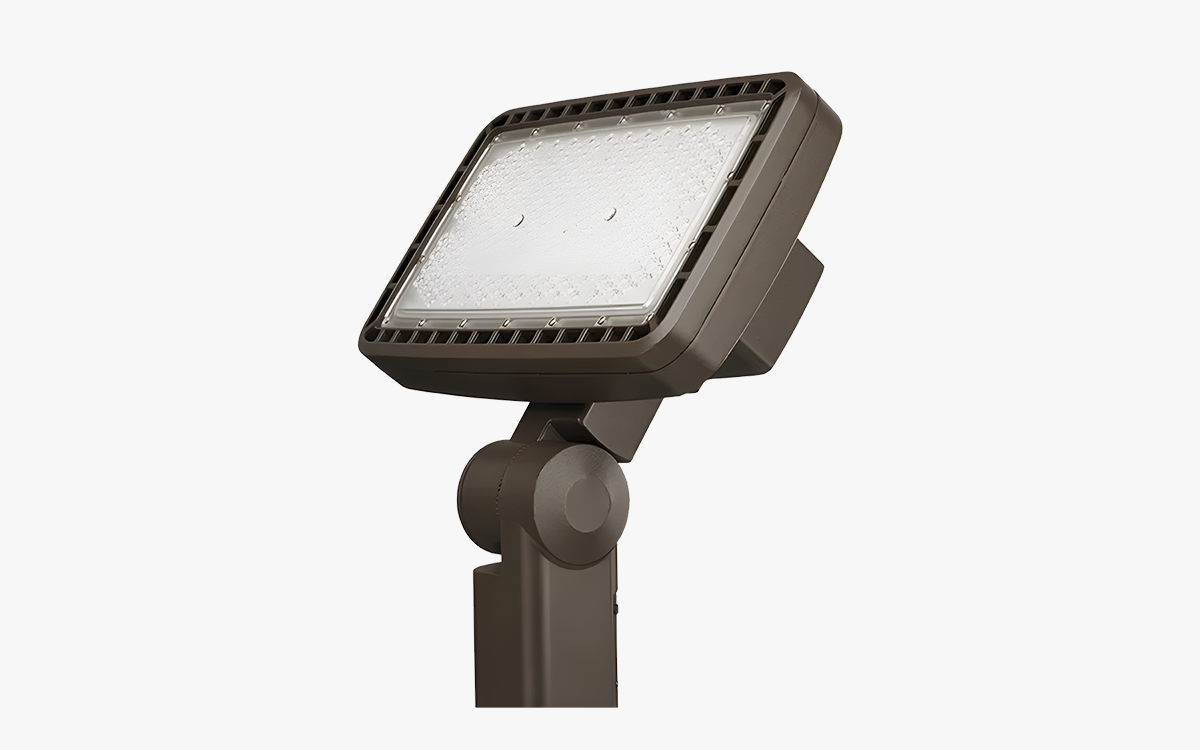

The Noctura® LED Flood luminaire is designed to deliver dependable outdoor lighting performance while minimizing the total cost of ownership. Engineered for quick and simple installation, it offers high efficacy and consistent quality across area, wall, and flood lighting configurations. With lumen packages up to 28,600 lumens and efficacies reaching 158 lumens per watt, this fixture is a powerful yet energy-efficient solution backed by a 5-year limited warranty from Cree Lighting. Available in 4000K and 5000K color temperatures with a minimum 70 CRI, the Noctura® Flood is ideal for both retrofit and new installations in applications such as signage, façade, and accent lighting.
Built with a slim-profile die-cast aluminum housing, the Noctura® fixture features an integral LED driver compartment and advanced thermal management to ensure long-term reliability. The bronze-finished housing, along with all mounting accessories, is coated in a polyester powder finish that withstands environmental wear. Its IP66-rated enclosure makes it suitable for wet locations and outdoor conditions, while a variety of mounting options—including yoke, knuckle, trunnion, and adjustable arm—support installation on ground surfaces, poles, tenons, or vertical walls. The housing includes knockout provisions for button-type photocells, and certain models feature a NEMA® 7-pin photocell receptacle to enable controls integration. The luminaire is also designed for field adjustability, with aiming capability in incremental degrees to ensure proper alignment and uniform illumination.
The optical system utilizes mid-power LED arrays with medium flood (NEMA 4x4) and wide flood (NEMA 6x6) distributions. Paired with 4000K or 5000K CCT options, the optics ensure broad, efficient coverage with top cutoff visor accessories available to reduce light spill and glare. The fixture delivers up to 158 LPW, significantly reducing energy consumption while maintaining performance.
Electrically, the Noctura® LED Flood supports input voltages from 120-277V at 50/60Hz, with Class 1 drivers and a power factor greater than 0.9. Total harmonic distortion remains under 20%, and all models come equipped with integral 10kV/5kA surge suppression protection. Dimming functionality via 0-10V is standard on higher output models (14L, 21L, 28L), supporting lighting controls and energy-saving strategies. The luminaire operates effectively in ambient temperatures ranging from -30°C to +40°C (-22°F to +104°F).
Regulatory certifications include cULus (UL1598), RoHS compliance, and full suitability for wet locations. The Noctura® Flood meets or exceeds standards for IP66 protection per IEC 60529, FCC Part 15 Class A emissions, and ANSI C82.77 for electrical performance. The drivers and LEDs are UL recognized to UL8750 standards, and the mounting systems comply with ANSI C136.31-2018 vibration standards. Altogether, the Noctura® LED Flood luminaire delivers a cohesive, durable, and high-performing lighting solution for a wide range of outdoor environments.
