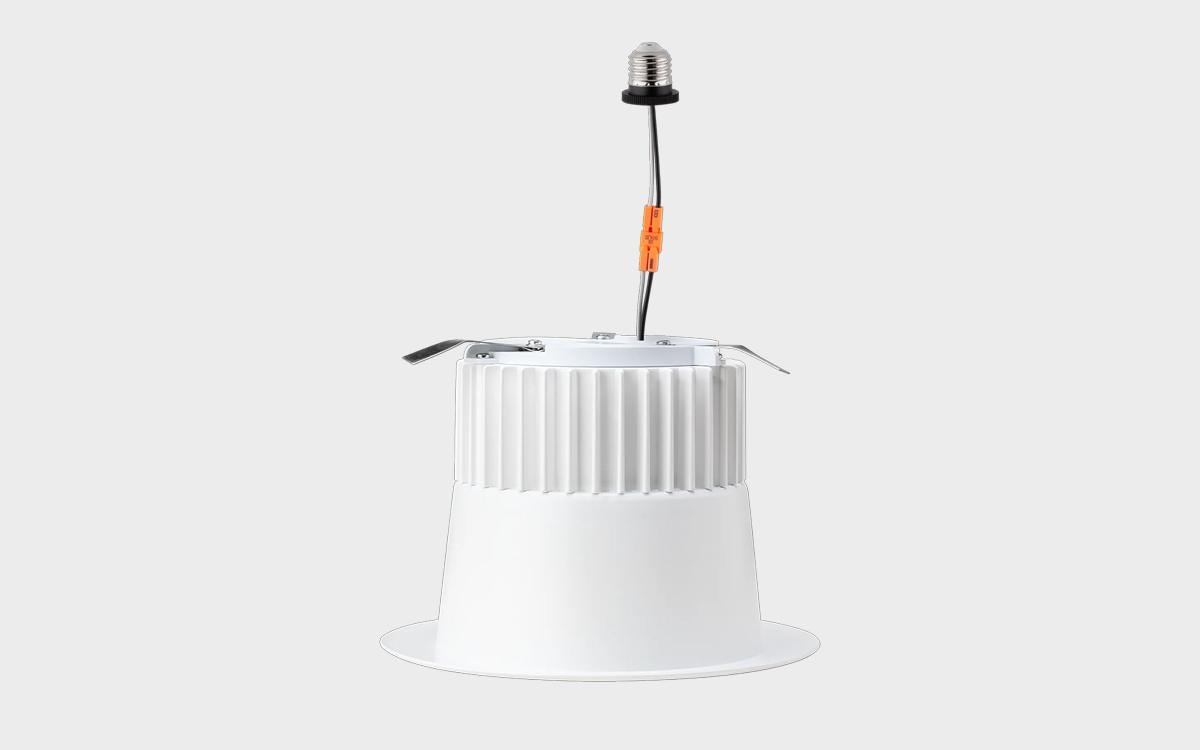

The Cree LRX Series Retrofit Downlights offer a powerful blend of high efficacy, color quality, and reliability for commercial new construction and retrofit applications. These advanced LED downlights are designed to replace CFL pin configurations and deliver high-performance illumination with output ranging from 650 to 3,000 lumens, consuming just 8 to 32.5 watts. With Cree's proprietary TrueWhite® Technology, the LRX Series provides 90+ CRI light and an R9 value above 50, ensuring accurate color rendering and lifelong color consistency. These fixtures support continuous dimming down to 5% and are backed by a robust 10-year limited warranty on the luminaire.
Available in 4-inch (LR4X) and 6-inch (LR6X) sizes, the LRX Series supports multiple lumen packages, ranging from 650 lumens (8W) up to 3,000 lumens (32.5W), with efficacy reaching up to 92 lumens per watt. Correlated Color Temperature (CCT) options include 2700K, 3000K, 3500K, and 4000K, catering to a wide range of visual environments and design preferences. The downlights are universally compatible with input voltages from 120V to 277V (50/60Hz) and include provisions for mounting to E26 and GU24 sockets, as well as LED orange connectors for 120-277V and Cree’s traditional 277V connectors. The deep-recessed optical design helps reduce glare and provides a more comfortable visual experience.
The LR4X model stands out for its compact size and strong lumen output. It offers up to 1,800 lumens while maintaining high efficacy and color quality. The integrated driver and thermal management system help keep LED junction temperatures low, even in demanding ceiling conditions. The LR4X features an aluminum reflector for efficient light redirection and thermal conduction and is compatible with LXT4 snap-in trims. The fixture’s optical system is engineered with reflective and refractive elements to eliminate pixelation and hotspots while maintaining uniform light distribution. It features a beam angle of approximately 85° and a field angle of 140°, ensuring wide coverage and enhanced spatial perception.
For higher output needs, the LR6X version pushes performance further, delivering up to 3,000 lumens with a similar commitment to visual comfort, energy efficiency, and reliability. Designed with the same thermal and optical excellence as the LR4X, the LR6X includes deep-set polycarbonate diffusing lenses that provide excellent glare control and visual cutoff. With a beam angle near 90° and a 140° field angle, the LR6X is ideal for more expansive coverage areas. Like its 4-inch counterpart, it supports dimming down to 5% using most incandescent or trailing edge dimmers depending on voltage. It is also rated for operation in temperatures from -25°C to +35°C (-13°F to +95°F), though certain high-output models such as 18L, 24L, and 30L are recommended up to 30°C (86°F).
Both LR4X and LR6X downlights meet stringent regulatory and voluntary standards, including cULus classification, RoHS compliance, and FCC Part 15 Class B emissions. They are suitable for wet locations when installed in covered ceilings and comply with California Title 24 JA8 and Title 20 Appliance Efficiency regulations (with the exception of the 30L model under Title 20). With a rated L70 lifetime of over 100,000 hours at 35°C and a wide array of mounting and trim options, the Cree LRX Series delivers unmatched performance, long-term reliability, and exceptional value in the retrofit downlight category.
