Cree Essentia Series LED Track Lighting System for Commercial and Retail Spaces

The Essentia® Series Track Lights provide a comprehensive selection of track systems, heads, gimbal rings, and accessories designed to simplify the creation of a complete track lighting solution. Available in both one- and two-circuit track configurations, this portfolio offers flexibility in design and beam control, accommodating a variety of lighting needs. The series comes in black and white finishes, allowing for seamless integration into diverse interior styles.

The light output ranges from 850 to 2,750 lumens, with wattages between 9 and 28 watts, delivering efficacies up to 113 lumens per watt. The fixtures feature an 80 CRI rating, with color temperature options including 2700K, 3000K, and 4000K, ideal for commercial indoor environments such as retail stores, restaurants, and hospitality venues. All track heads are integrated LED, compatible with both one- and two-circuit track systems, and backed by a three-year limited warranty.

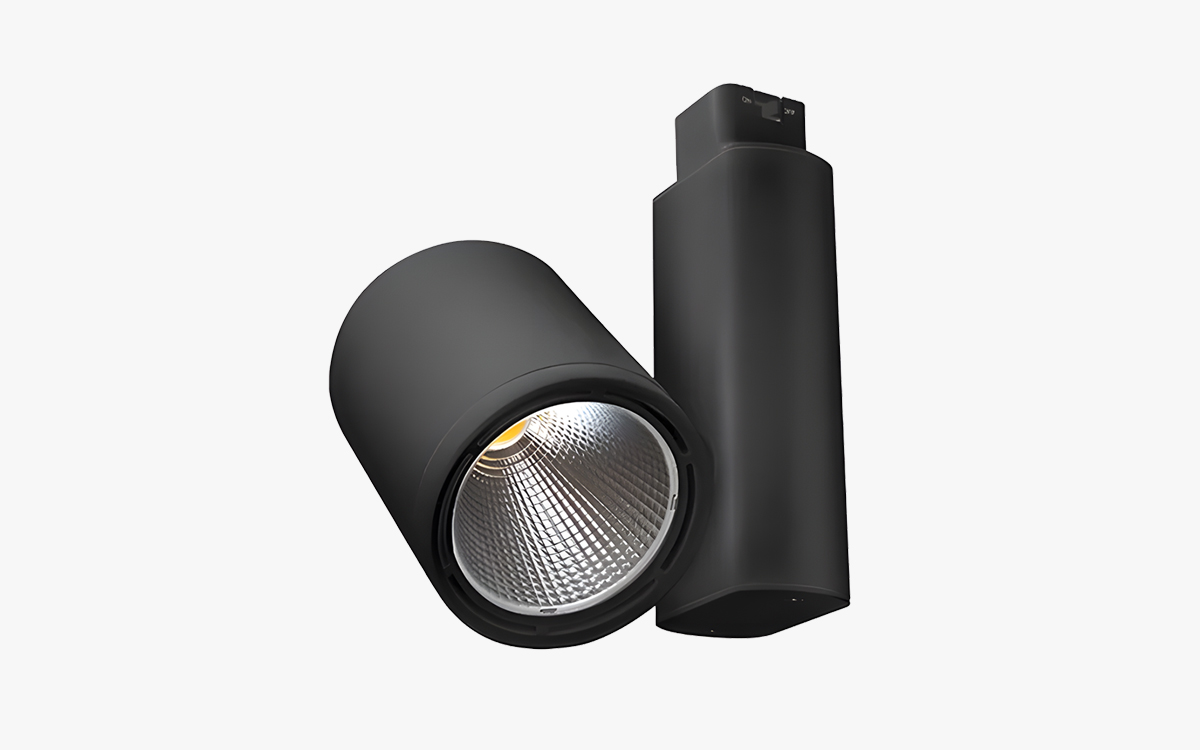

Among the lineup, the Essentia® Series 9W Mini Cylinder Track Heads produce 850 lumens of beautiful light in warm white (3000K) or neutral white (4000K), featuring an adjustable beam spread from 18° to 50°. These heads are constructed with durable die-cast aluminum housing and finished in either white or black polyester powder coat. They are compatible with Essentia Series Track, Juno "T," and TU Series track systems, making them versatile and easy to install. The mini cylinders save installation time by allowing rotation for beam adjustment instead of swapping reflectors and provide approximately 50,000 hours of maintenance-free operation. Dimming down to 10% is possible using compatible triac dimmers.

The Essentia® Series LED Beveled Cylinder Track Heads offer a higher output of 2,250 lumens, available in soft white (2700K), warm white (3000K), and neutral white (4000K). They feature the same adjustable beam spread of 18° to 50° and share the durable construction and finish options as the mini cylinders. Also compatible with Essentia, Juno "T," and TU Series tracks, these heads provide bright, high-quality light for demanding commercial settings, with dimming capability to 10% via triac dimmers and a similar 50,000-hour lifespan.

For even greater output, the Essentia® Series Large Flat Back Cylinder Track Heads deliver 2,750 lumens with interchangeable beam spreads of 20° or 38°. Available in soft white, warm white, and neutral white, these heads are designed for commercial indoor use where powerful, focused lighting is essential. Their robust die-cast aluminum housing and versatile black or white finish make them durable and aesthetically flexible. They are compatible with one- or two-circuit track systems, including Essentia, Juno "T," and TU Series. Like the others, they offer a three-year warranty, dim to 10% with triac dimmers, and provide up to 50,000 hours of maintenance-free use.

The construction of Essentia® Series track heads features die-cast aluminum housing for both the driver and optics, finished with a polyester powder coat in black or white. A polycarbonate adapter with copper conductor ensures reliable electrical connections, while the pivot mount provides up to 350° horizontal rotation and 0–90° vertical tilt for precise aiming. Each head comes standard with both a 20° clear spot lens and a 38° frosted wide lens, allowing quick beam angle adjustments without the need to change reflectors. These track heads are compatible with Essentia Series “CT” tracks, as well as Juno “T” and “TU” tracks (not affiliated with Cree Lighting).

Electrically, the track heads operate on 120V at 60Hz with a power factor greater than 0.9 and total harmonic distortion less than 20%. They function efficiently across a temperature range from -20°C to +35°C (-4°F to +95°F). Controls include integral on/off switches and dimming down to 10% via compatible triac dimmers, supporting smooth, reliable light output adjustment.

Additionally, the Essentia® Series Low Profile Lamp Holders are designed for general-purpose indoor track lighting in commercial, retail, or industrial settings. Compatible with PAR20, BR30, PAR30, and PAR38 lamps from other manufacturers, these holders are built from high-strength injection-molded polymer and available in white or black finishes. They fit Essentia Series and Juno “T” and “TU” track systems, offering a cost-effective and flexible solution with a one-year limited warranty.

The Essentia® Series Track Rails are well-suited for general-purpose indoor track lighting in commercial, retail, or industrial environments. Made with an extruded aluminum body, Lexan fittings, a Noryl insert, and No. 12 AWG solid copper conductors, these rails offer durability and performance. They can be surface or pendant mounted, and each section comes with two dead ends and mounting hardware for easy installation. The rails are also field-cuttable to precisely fit any installation space. The two-circuit track option doubles load capacity, allowing more fixtures per section and enabling separate operation of each circuit for up to three different switching schemes. These tracks are UL and cUL listed and carry a one-year limited warranty.

Overall, the Essentia® Series Track Lighting system combines flexibility, durability, and high-quality LED performance to meet the diverse demands of indoor commercial applications, backed by reliable warranties and compatibility with widely used track systems.
