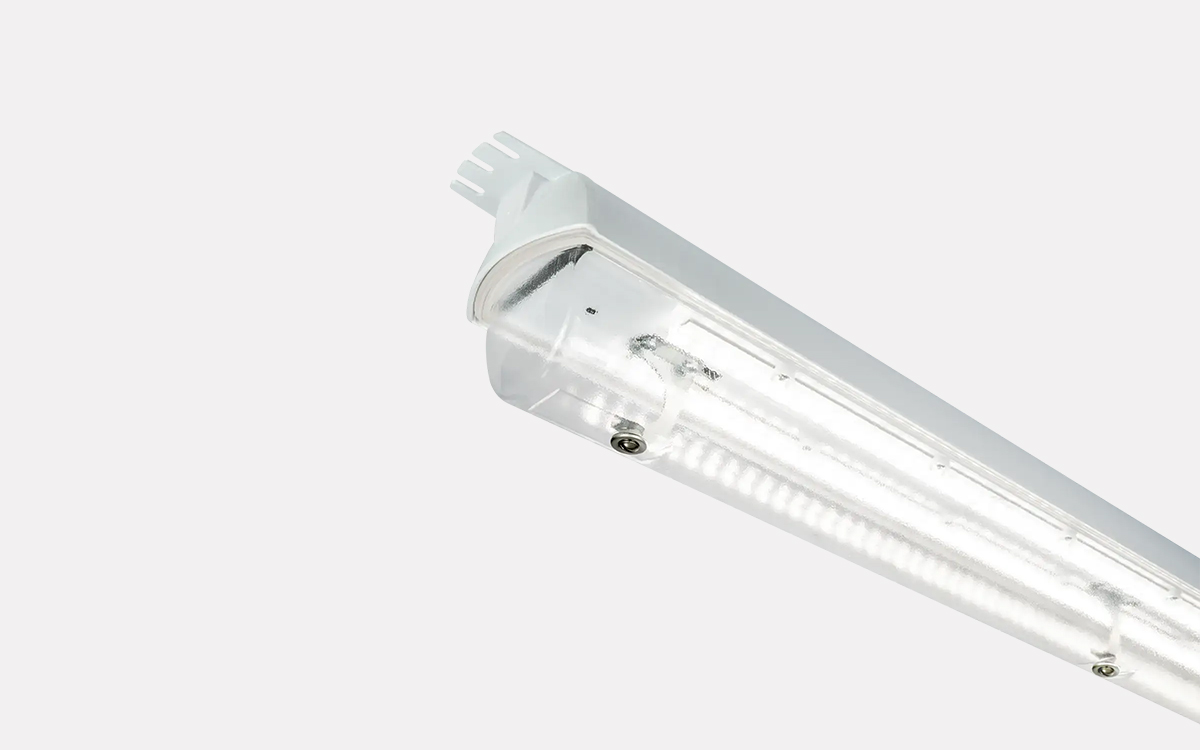

The A-Line Pro is an extremely efficient, multi-purpose luminaire designed for use in demanding and corrosive environments. Constructed with a robust aluminium body and die-cast ends, it features a long-life silicone sponge gasket that ensures an IP66 rating. Users can choose between clear acrylic or polycarbonate covers to suit different needs. External mounting brackets and a fitted flying lead facilitate quick installation without requiring the luminaire to be opened. High-performance optics with options for broad or narrow light distribution deliver illumination precisely where it is needed.
Ideal applications for the A-Line Pro include cold stores, food factories, dairies, abattoirs, water treatment facilities, cable tunnels, and multi-story car parks. The extruded aluminium body not only provides durability but also effectively dissipates heat, helping to prolong the lifespan of the control gear even in higher ambient temperatures. Installation is further simplified by stainless steel mounting brackets embedded into the die-cast ends, and the luminaire can be fully installed without opening. For added security, optional tamper-resistant stainless steel cover screws are available. Additionally, SmartScan wireless technology eliminates the need for control cabling, making the A-Line Pro especially suitable for retro-fit applications.
This surface-mounted luminaire comes in nominal sizes of 1200 mm and 1500 mm and is rated IP66 for protection against dust and water ingress, with an impact resistance rating of up to IK10. It supports presence detection up to 8 meters in height. The lighting options include clear acrylic or polycarbonate covers, with lumen outputs ranging from 2,965 to 18,025 lumens and an efficacy of up to 177.6 lumens per watt.
For emergency lighting, the A-Line Pro offers maintained emergency output between 550 and 650 lumens, with a 3-hour duration powered by a Nickel Metal Hydride (NiMH) battery. LED power ranges from 16 to 101 watts, while total circuit power ranges from 21 to 114 watts. The luminaire features LEDs with a color rendering index (CRI) of 80+ and a standard color temperature of 4000 K. It boasts a rated life of 100,000 hours to L70/B10 standards.
The A-Line Pro meets UKCA and CE compliance requirements and carries an energy efficiency class A rating. It is certified to meet food production standards such as BRC, HACCP, and IFS, and is also compliant with MOD regulations under JSP482 Chapter 8 for 'Category C' areas.
