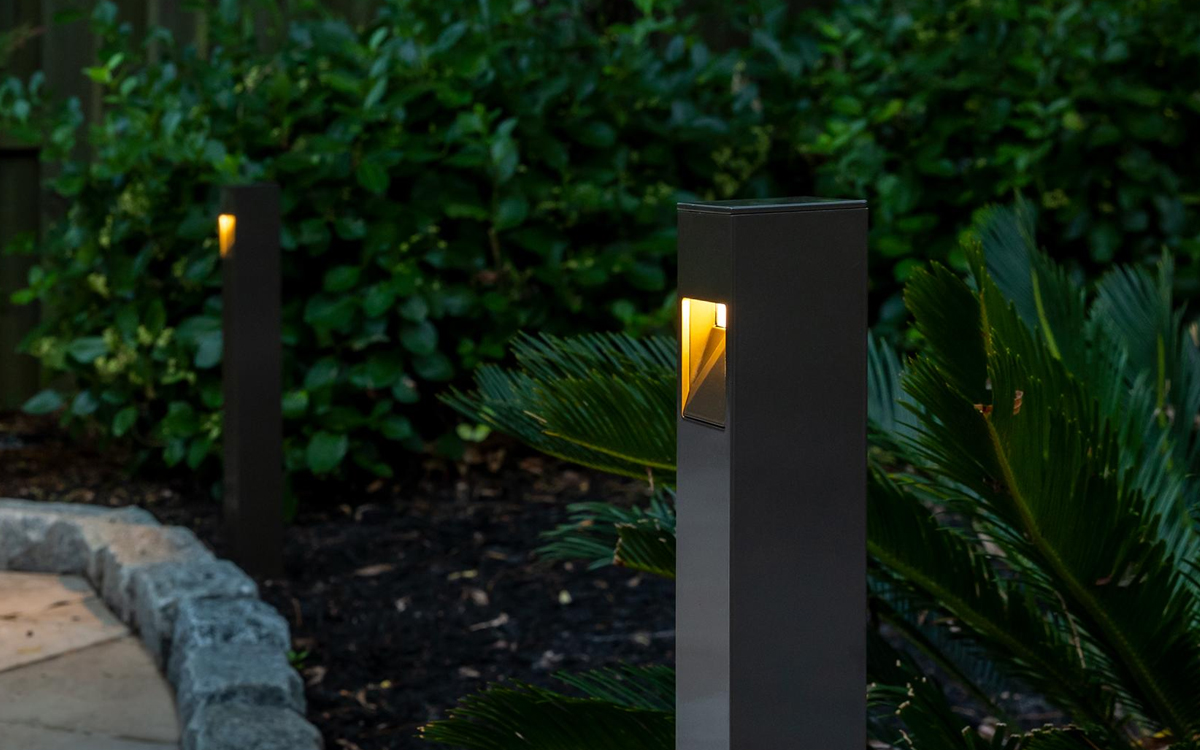

The M-PZ path light is engineered with highly durable die-cast aluminum, making it a versatile and contemporary addition to modern outdoor lighting designs. Its robust construction includes a die-cast A380 aluminum body paired with stainless steel hardware for enhanced durability and corrosion resistance. The fixture features a two-layer marine-grade anodization combined with a polyester TGIC powder coat finish, ensuring superior weather resistance in all outdoor conditions and meeting ASTM testing standards.
This path light incorporates Cree® integrated LEDs with gold-plated connectors and conformal coating to maximize reliability and resist corrosion. The onboard intelligent driver is firmware-controlled to regulate temperature, which extends LED life to an impressive 55,000 hours (L90/B10). The lighting options include single LED, triple LED, or ZDC configurations, offering different total lumen outputs ranging from 43 to 113 lumens, with efficacy up to 27 lumens per watt. Color temperature adjustment lenses come standard with the fixture, providing options from 2,700K to 5,200K to customize lighting ambiance. The optics are designed using LM-79 photometric standards for accurate performance, and the UV-stabilized acrylic lens offers excellent shock resistance and tolerance for thermal expansion and stress.
Designed for efficiency and adaptability, the M-PZ path light supports phase and PWM dimming and is compatible with Luxor® technology for advanced control options. This includes zoning fixtures into up to 250 groups, dimming each group incrementally, and, with the ZDC option, enabling RGBW color-changing capabilities with a palette of 30,000 colors. The fixture operates within an input voltage range of 10 to 15 volts AC/DC and requires a remote transformer (sold separately). Wiring consists of durable 18 AWG cable with SPT-1W insulation rated for 220°F and 300 volts.
Installation is streamlined with stainless steel machine screws and a 30-inch length of 1-inch conduit for secure mounting. The M-PZ is designed exclusively for downward lighting installation, enhancing safety and efficiency. It complies with international standards IEC 60598-1 and IEC 60598-2-7 when the appropriate option is selected. With an ambient operating temperature range from 0°F to 122°F (-18°C to 50°C) and a lightweight build at just one pound, the M-PZ combines durability, flexibility, and contemporary design to enhance any outdoor lighting project.
