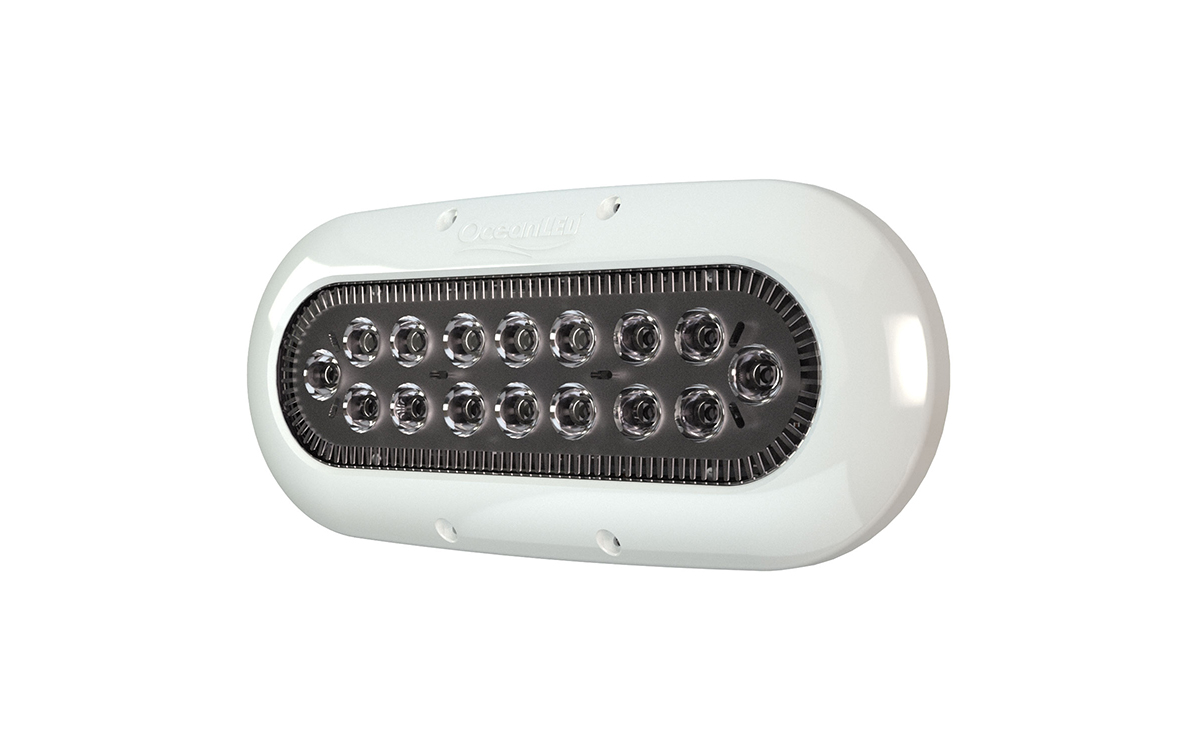

The X-Series underwater light delivers a dynamic lighting experience for boaters who value performance, versatility, and visual impact. With a wide selection of sizes and color options, the X-Series allows for a fully customized light show, helping you enjoy more time on the water—whether relaxing, entertaining, or fishing. Compact in design and simple to install, this fixture integrates advanced technology into a chemically resistant optical polymer housing with a built-in driver, ensuring robust performance in a sleek, low-profile package.
One of the standout features of the X-Series is its IP69k certification—the highest level of protection currently achievable against water ingress. This rating exceeds the industry-standard IP68 by offering full resistance to high-pressure, high-temperature water, providing absolute confidence for long-term underwater use. The X-Series is not limited to submersion, either—it also functions effectively as an exterior light for cockpits, decks, or trailers, further expanding its utility on board.
A 60° circular beam angle ensures broad, even illumination regardless of the mounting orientation, making the light suitable for multiple placements around your vessel. With an internal driver, ultra-low power draw, and no startup current required, the X-Series delivers energy efficiency alongside powerful illumination. It also includes reverse polarity protection for added installation safety. The built-in Active Thermal Control (ATC) system actively prevents overheating by reducing LED power levels when necessary, and, in extreme conditions, can shut off the light entirely to safeguard its components and prolong LED life.
Designed with performance in mind, the X-Series emits up to 4,500 fixture lumens and achieves light penetration of approximately 40 feet (12 meters) in average water conditions, and up to 100 feet (30+ meters) in ideal conditions. This makes it a fantastic choice for both recreational use and fishing applications—especially thanks to its bright, randomized strobing effect, which is proven to attract fish and bait.
Operating on a 9–32V DC power input, the light draws a maximum of 3.2 amps at 12V or 1.5 amps at 24V (color model amperage varies based on the selected color). Weighing just 860 grams (1.9 lbs), the fixture is lightweight and easy to manage, with a standard 9.84-foot (3-meter) extension cable and a minimal 0.5-inch (12.5mm) hole cut-out required for cable entry.
Available in three vibrant color options—Midnight Blue, Multi-Colour, and Ultra White—the X-Series offers bold illumination in a durable, efficient, and stylish form factor ideal for a wide range of marine lighting needs.
