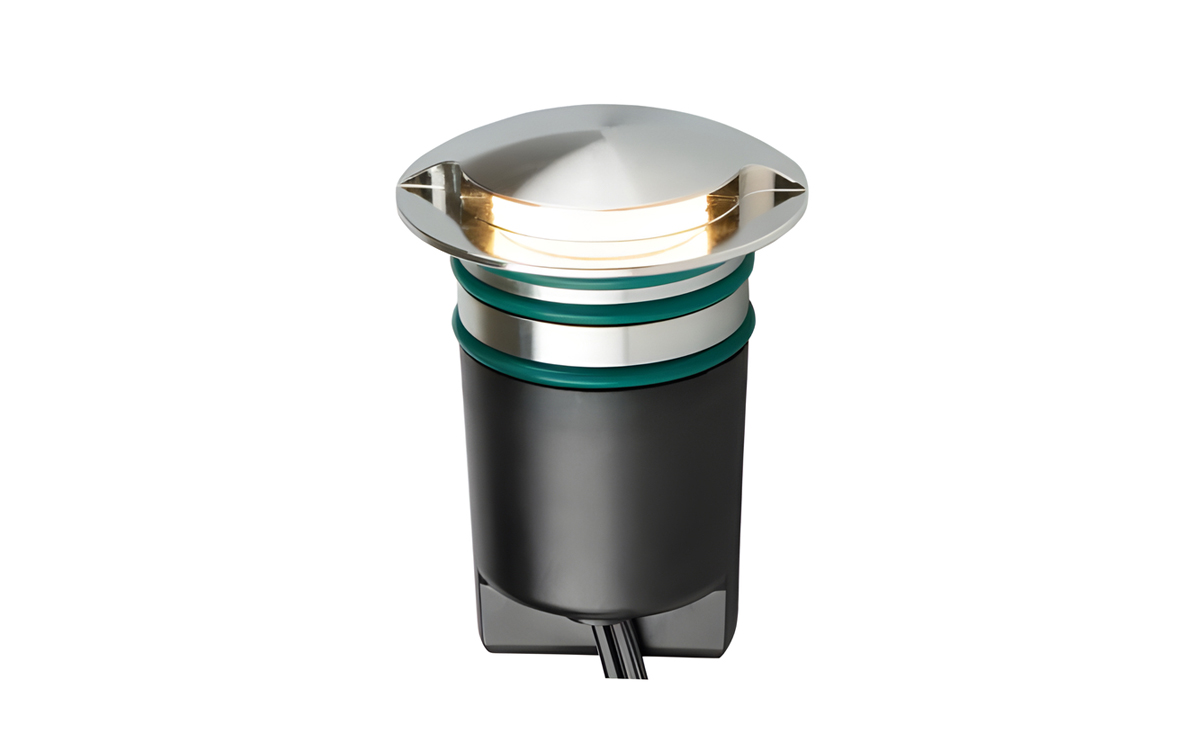

The Vedita VE9 is a compact and versatile luminaire designed for both in-ground and wall-mounted applications, making it ideal for a wide range of indoor and outdoor architectural environments. Engineered with a robust 316 marine-grade stainless steel bezel and durable polymer housing, it offers excellent resistance to corrosion and wear. Each unit comes standard with an ElectroPolishPlus™ surface treatment, ensuring a refined finish and enhanced durability over time. The fixture is supplied with an installation sleeve for straightforward recessed mounting, while an optional LS6107 preinstallation niche is available for concrete pour applications.
With a modest lumen output of 20 lumens and a low power consumption of just 3 watts, the Vedita VE9 delivers accent lighting with maximum efficiency. It features an integral driver configuration and operates on 24 Vdc internationally or 12–15 Vac / 12–24 Vdc in North America. The LED source is powered by high-quality Lumileds® technology, supported by CoolDrive™ onboard thermal management to maintain performance and extend lifespan. The typical lifetime exceeds 60,000 hours (B10, L70, TM21 reported), offering long-term reliability with minimal maintenance.
Control options for the Vedita VE9 include PWM dimming via DMX, DALI, or 0–10V protocols, making it easy to integrate into complex lighting control systems. Despite its compact diameter of just 1.8 inches (45 mm) and low-profile exposed depth of 0.5 inches (14 mm), this luminaire is built for rugged performance. It has a static load capacity of 992 pounds (450 kilograms), allowing for use in pedestrian areas and light traffic zones.
Certified with an IP68 rating for submersion and IK10 for high impact resistance, the VE9 is well-suited for demanding environments. It is also HumanTouch™ compliant, maintaining a surface temperature below 65°C (149°F). With ambient operating temperatures ranging from -20°C to +50°C (-4°F to 122°F), the fixture performs reliably in various climates. Additional classifications include NEMA Type 01 and IES Type IV, with a BUG rating of B0-U1-G1, ensuring it meets key standards for glare control and light distribution. At just 0.9 pounds (0.4 kilograms), the Vedita VE9 delivers exceptional performance in a compact and resilient form factor.
