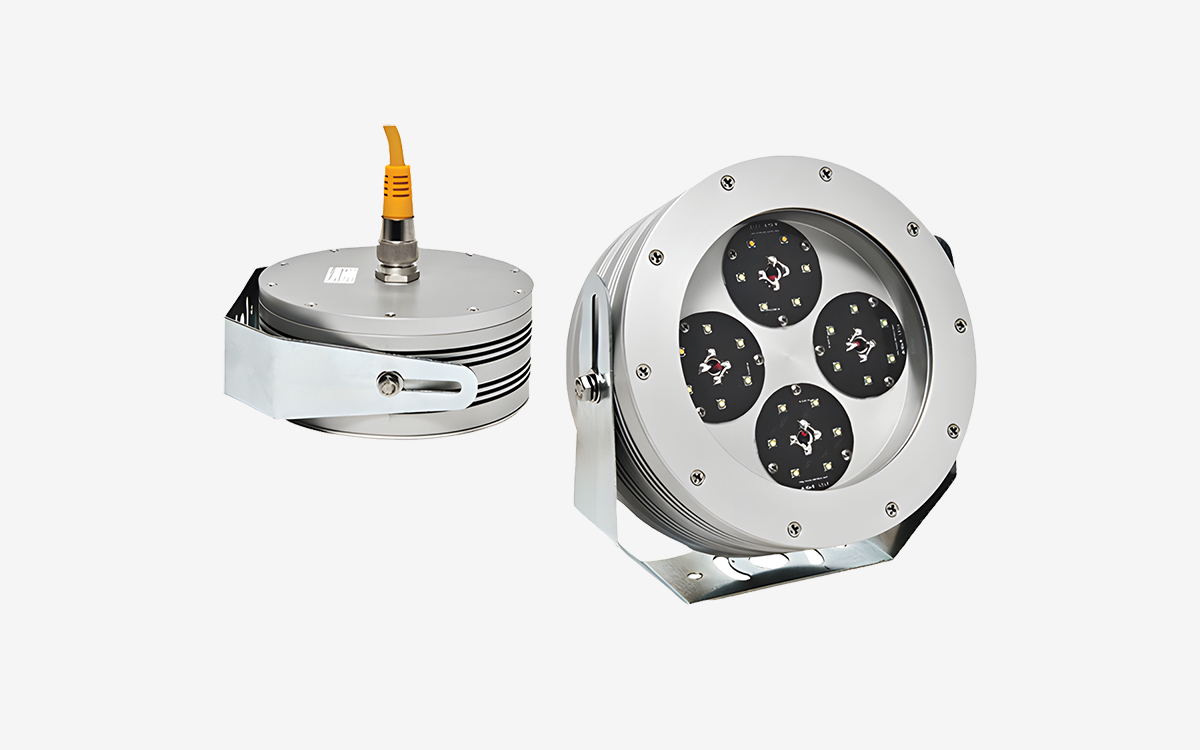

The Nemalux XCANLED is a compact and rugged LED floodlight specifically engineered for demanding industrial environments, including hazardous and general locations. Designed for durability and longevity, this thermally managed fixture operates efficiently in ambient temperatures ranging from -40°C to +45°C and carries an ingress protection rating of IP66, making it ideal for both indoor and outdoor applications where dust, water, and impact resistance are critical.
Powered by 12 to 24 VDC, the XCANLED offers versatile deployment in low-voltage environments common in the oil and gas sector, solar installations, mobile power systems, and modular industrial buildings. It is available with a 6-foot pre-wired lead or a quick-disconnect cable using a 3/4” NPT entry. Customers can choose from a 100° flood or 30° narrow beam profile to suit specific lighting needs. The fixture’s robust housing is machined from a single 7-inch diameter block of copper-free aluminum, finished with a Type II anodized coating for superior corrosion resistance. A durable polycarbonate lens adds impact protection while maintaining a sealed IP66 barrier, and stainless steel fasteners enhance its outdoor viability.
Inside the housing, four LED arrays mounted on MCPCBs ensure redundancy and efficient heat dissipation. Four internal switching drivers support 12 to 24 VDC operation, and the fixture consumes approximately 31.6W at 12 VDC and 33.6W at 24 VDC, drawing 2.64A and 1.4A respectively. The XCANLED is dimmable and built to operate on ELV systems. When integrated into DC-powered sites, it eliminates the need for costly AC inverters, allowing seamless low-voltage installations with reduced energy losses.
The XCANLED is certified under UL 2108 and CSA C22.2 No. 250.0 for general use and meets the requirements for Class I, Division 2, Groups ABCD, T3 for hazardous locations. Its longevity is backed by LM-80 test data showing performance exceeding 60,500 hours, based on long-term testing with CREE LEDs. Standard units are supplied in 5000K color temperature with a CRI of 70, though custom options ranging from 2700K to 6500K and higher CRI variants are available upon request.
The XCANLED’s unique capabilities have supported a wide range of use cases. In the oil and gas industry, it provides localized lighting on drilling rigs, coil tubing units, and service trucks. Its DC compatibility makes it suitable for deployment in solar-powered applications and remote modular facilities. Within SAGD buildings, XCANLEDs have been used for illuminating sight-glasses, contributing to safe and continuous plant operation. The military and aerospace sectors have also adopted custom XCANLED configurations for use in extreme vibration zones and near high-heat sources such as rocket engine test chambers. These versions may include specialized optics, IR-reflective lenses, and flicker-free drivers for high-speed video capture.
A notable application includes a NASA wind tunnel, where XCANLEDs were selected for their reliability and stable light output under precision testing conditions. The fixture’s flexibility, durability, and customizability make it a trusted choice across industrial sectors where reliable lighting is mission-critical.
