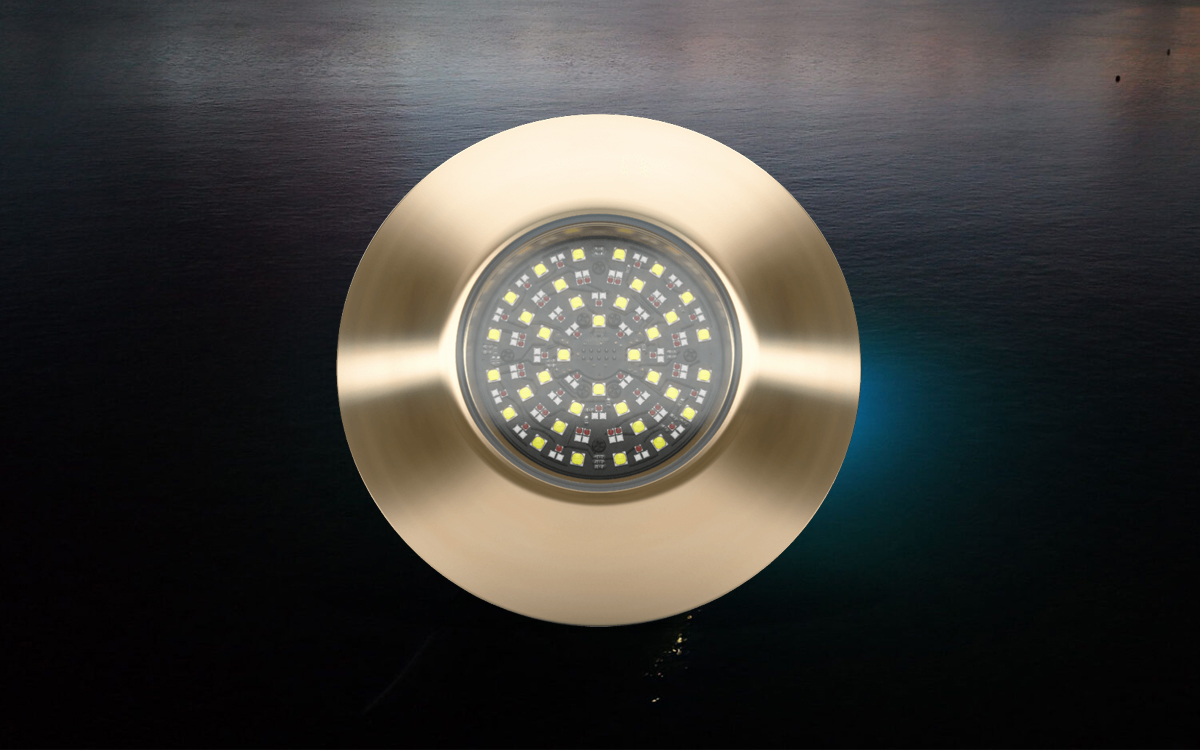

The Lumishore TIX1604 is a fully controllable, high-performance underwater LED lighting fixture designed to deliver breathtaking illumination and vibrant color-changing effects for luxury marine environments. Equipped with EOS full-color change (RGBW) capabilities, the TIX1604 produces a stunning 17,500 verified fixture lumens in white and offers a maximum luminous output of 39,375 lumens. Its ultra-wide 110° beam angle ensures expansive, even lighting coverage, making it ideal for creating the iconic halo-effect around the entire hull of the vessel.
Built for versatility and powerful performance, the TIX1604 is suitable for transom, side, and bottom mounting, offering flexible installation across a range of vessel types and hull geometries. The fixture features a marine-grade aluminum bronze housing, ensuring long-term durability and corrosion resistance in harsh marine environments. With a high-efficiency HICOB LED array that includes 36 white 10W LEDs, 36 green 3W LEDs, 36 blue 3W LEDs, and 48 red 3W LEDs, the TIX1604 delivers dynamic color performance and superior brightness.
One of the standout advantages of the TIX1604 is its internal LED array paired with an external multi-channel driver, simplifying installation and allowing for full servicing from inside the hull. This integrated approach reduces downtime and enhances ease of maintenance while preserving the integrity of the vessel’s exterior. The fixture operates on a 24V DC supply, with an AC option available, and draws a maximum current of 6.5A.
For complete lighting control, the TIX1604 connects directly to your onboard multifunction display (MFD) or the optional Lumishore Display, providing intuitive access to an extensive range of lighting features. These include synchronized lighting, speed-adjustable color cycles and sweeps, customizable favorites, fixed and random strobe modes, programmable scenes, and full brightness adjustment. The system also supports Wi-Fi control via app, auto light discovery and setup, and a sound-to-light feature that synchronizes lighting effects with onboard audio, creating an immersive entertainment experience.
The Lumishore TIX1604 combines cutting-edge technology, advanced functionality, and uncompromising brightness in a sleek, robust package—offering a premium lighting solution for owners seeking the ultimate in underwater visual impact and control.
