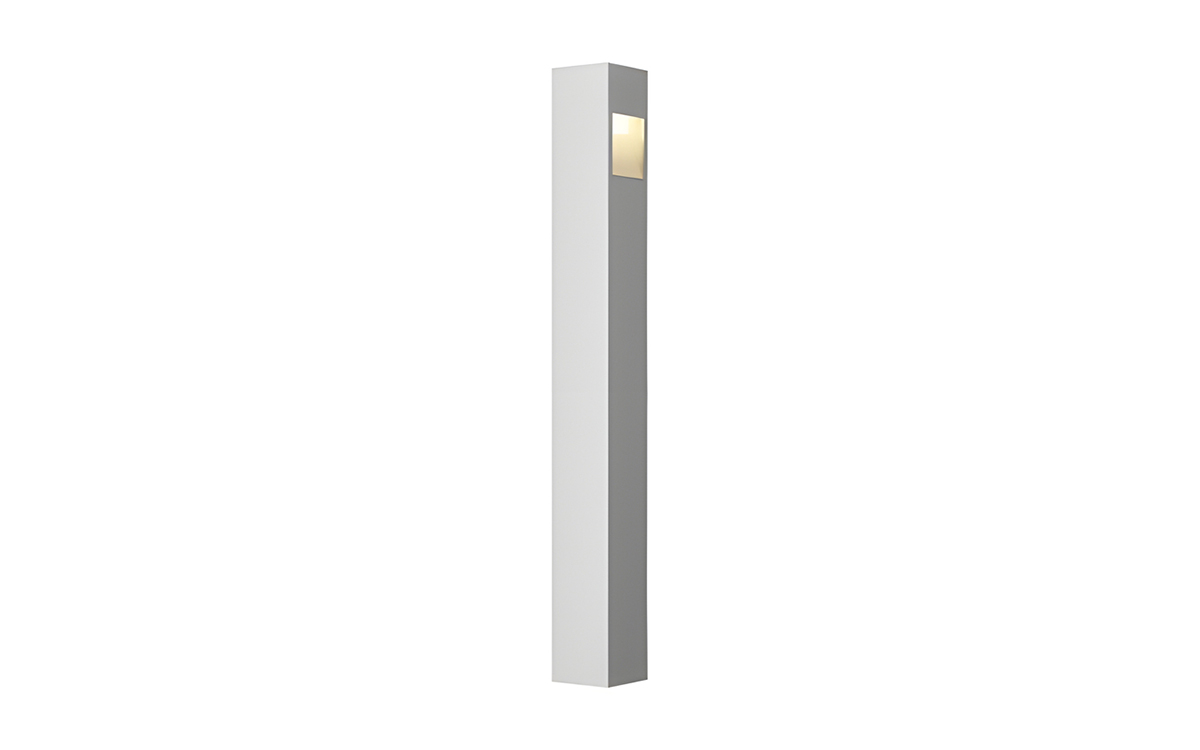

The aRondel-6 is a robust and versatile LED bollard light, thoughtfully engineered to meet the demands of modern landscape and architectural lighting applications. Constructed from durable die-cast aluminum, the fixture is designed for high performance and long-term outdoor use. It features a clean, minimalist form that seamlessly integrates into contemporary designs, while delivering reliable downward lighting. For those seeking color flexibility, an RGBW version is available and compatible with ZDClink® controllers for advanced lighting control.
With a total luminous output of 185 lumens, the aRondel-6 operates at power levels of 2.2, 4.4, or 7.2 watts, depending on the configuration. It accepts input voltages of 10–15 Vac/dc for white LED versions and 11–15 Vac/dc for RGBW, with a remote transformer required. Integrated drivers and premium LED components—Lumileds® for white and Cree® for RGBW—ensure consistent performance. The fixture also features CoolDrive™ onboard thermal management, extending the rated lifetime to over 72,000 hours for white LEDs and 55,000 hours for RGBW variants. Dimming is supported via Luxor® controls or trailing-edge dimmers.
For zoning and dimming flexibility, the aRondel-6 works with the ZDClink® Controller using Luxor® Technology. This enables the user to assign luminaires to up to 250 individual zones, dim each group in 1% increments, and select from over 30,000 colors when using RGBW models. The standard version also supports zoning through ZDClink®.
Built to withstand harsh environmental conditions, the aRondel-6 features an A380 aluminum housing and extrusion, secured with tamper-resistant stainless steel hardware. Its finish consists of a dual-layer marine-grade anodization and a TGIC polyester powder coat, tested to ASTM standards for maximum durability. The fixture is suitable for dry, damp, and wet locations and is certified for a wide range of international compliance standards including UL, CSA, IEC, FCC, and EN regulations.
Each unit includes a 30-inch length of standard North American 1.0" schedule 40 conduit and a stabilizer for secure mounting. It is designed strictly for downward illumination, with glare controlled by a recessed aperture. The frosted polycarbonate lens offers excellent shock resistance and accommodates thermal expansion, while MicroAntileach™ technology protects internal components from moisture intrusion. Wiring is rated for 220°F (105°C) and supplied with a 10-foot lead (shorter for international models).
The aRondel-6 meets Dark-Sky criteria when used with a 3,000K or lower color temperature and carries a BUG rating of B0-U1-G0, ensuring minimal uplight and glare. This bollard is an ideal choice for environmentally responsible, high-performance landscape lighting projects.
