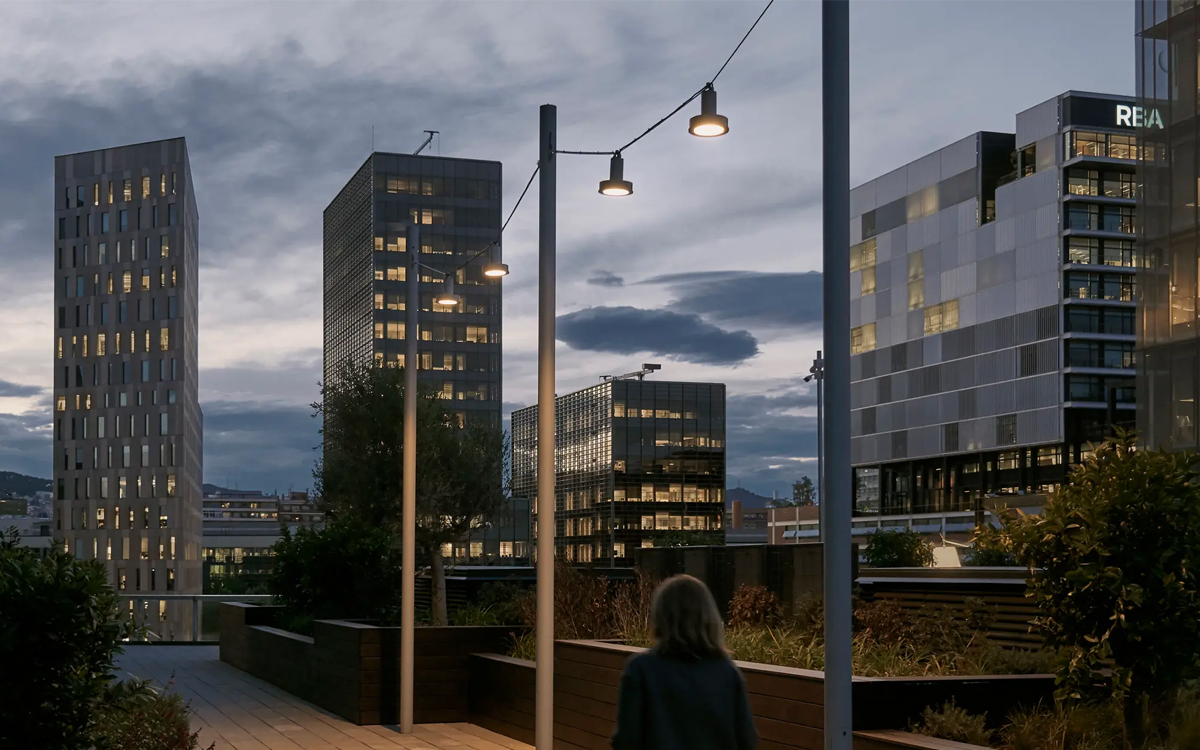

The Arne S Catenary Light is a smaller luminaire designed to create intimate lighting experiences that bring the warmth and ambiance of indoor lighting to outdoor environments. Inspired by the renowned Danish architect and designer Arne Jacobsen, this light offers versatility for a wide range of applications. In its catenary configuration, Arne S provides designers with unique flexibility to maximize pedestrian space while delivering purposeful, beautiful illumination with remarkable precision. The luminaire is available in multiple color temperatures, lenses, and drive currents to suit various lighting needs.
Arne S offers nine different distribution types and multiple mounting options, including pole, catenary, and surface mounts. The pole and surface mount brackets feature tilt and roll capabilities to efficiently direct light where needed. Standard pole heights include 3.4m, 4.2m, 5.0m, and 5.8m, while poles for catenary applications can be custom engineered for specific projects (cable not included). The light supports multiple power outputs and beam options and is designed with zero up-light, making it International Dark-Sky approved. It is UL Listed and suitable for wet locations, ensuring durability in outdoor settings.
Constructed from die-cast aluminum, the Arne S luminaire features tempered glass lenses available in clear or opal diffused finishes. Its light source options include high-quality PCB LEDs such as Cree XPG2 and CoB LEDs like Birdgleux Gen 7. The fixture offers color temperatures of 3000K and 4000K, powered by a 120V-277V supply. It includes an integrated Class 2 dimmable driver with a standard 1-10V dimming interface, and DALI dimming is available upon request. The unit is IP66 rated for protection against dust and water and achieves a TM21 L70 lifespan of over 60,000 hours. Weighing only 8 pounds, the luminaire has an effective projected area (EPA) of 0.36 square feet.
Designed for flexibility and ease of use, the Arne S ships prewired and fully assembled. It offers full 360-degree rotation and tilt capabilities, allowing it to efficiently illuminate walkways, architectural structures, monuments, and landscapes. For installation support, detailed wiring diagrams and instructions are available in the installation guide. This combination of design, function, and durability makes Arne S ideal for enhancing outdoor pedestrian spaces with elegant, precise lighting.
