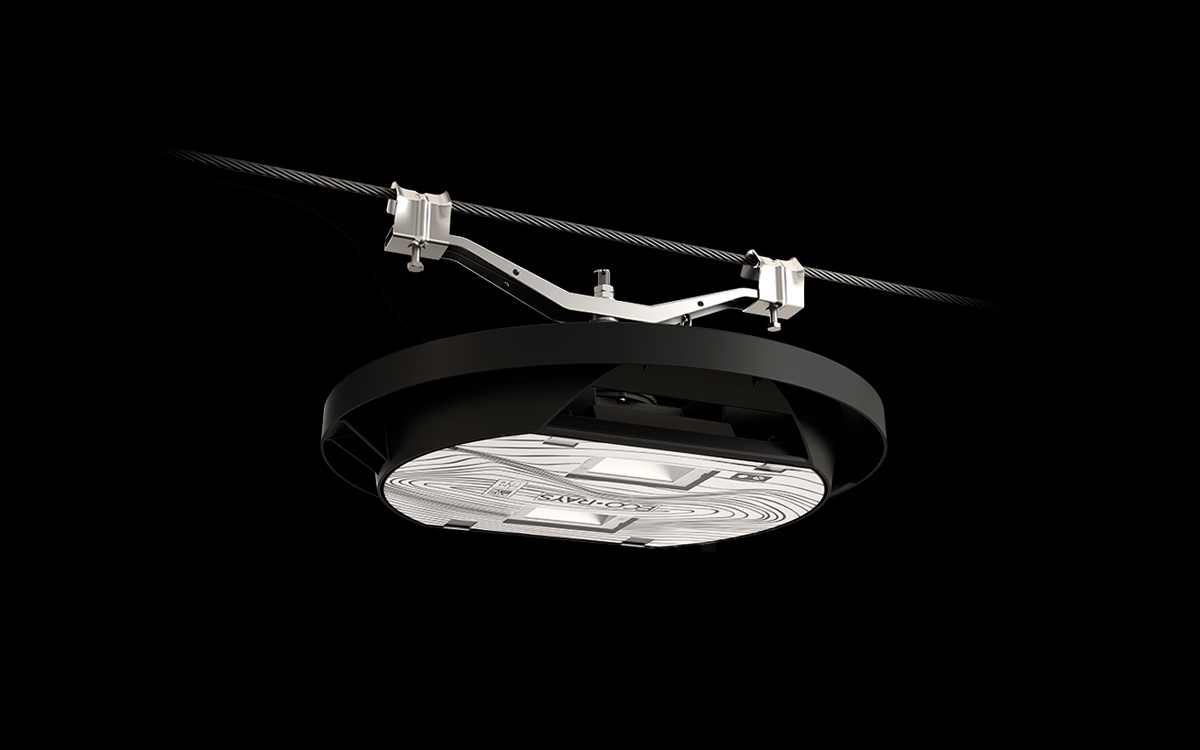

The ECORAYS TS LED catenary street light is a specialized luminaire developed for suspended installations over roadways using steel cables, offering a practical solution in situations where pole-mounted lighting is not feasible. As the suspended version of the renowned ECORAYS series, it combines technical reliability with design adaptability, providing a flexible and visually unobtrusive approach to urban lighting. Its modular optical system and advanced LED technology ensure optimal light distribution and performance, making it a high-quality choice for modern streets and public spaces.
ECORAYS TS represents the next generation of smart-ready street lighting solutions. With Zhaga-D4i certification, the luminaire guarantees full Plug&Play interoperability between lighting fixtures and smart nodes, enabling cities, installers, and end-users to adopt a truly open, future-proof lighting technology. Its optical versatility includes a symmetrical TS optic specifically for central road applications, with LED color temperatures available in 4000K, 3000K, 2700K, and 2200K, along with a color rendering index of 70 or higher. The luminaire achieves a light output ratio of 100%, with zero upward light loss, and belongs to the photobiological safety EXEMPT GROUP. Its LED modules offer efficiency up to 185 lm/W at 140mA, operating at 85°C for 4000K sources. The optical group is rated for over 100,000 hours at L90 according to TM-21 standards, ensuring long-term performance and reliability.
Mechanically, the ECORAYS TS is robust and built to endure challenging outdoor environments. The fixture has an IP66 rating for ingress protection and IK08 mechanical resistance. It supports suspended mounting on cables ranging from 5 mm to 12 mm in diameter, with horizontal tilt adjustment of ±15° and full 360° rotation on the vertical axis. The luminaire weighs a maximum of 7 kg, with exposed surfaces of 0.04 m² on the side and 0.17 m² on top. The modular design allows for removable LED modules and gear trays, facilitating easy maintenance and future upgrades. It operates reliably across a wide temperature range of -40°C to +50°C and supports standard 220–240V, 50/60Hz input with a power factor exceeding 0.9 at full load. Mains connections are made via H07RN-F cables up to 1.5 mm², with optional IP66/68 connectors for cables up to 2.5 mm² and 14 mm diameter.
Surge protection for the ECORAYS TS is substantial, providing up to 12kV protection depending on the insulation class and configuration. Optional SPD units offer 12kV-10kA protection with LED signaling and thermal fuses to safely disconnect the load at the end of its life. For control and smart lighting integration, the luminaire supports fixed power (F), automatic dimming (DA) with default or custom profiles (DAC), constant light flux (FLC), DALI digital dimming, and both NEMA 7-pin and Zhaga 4-pin sockets for seamless networked lighting solutions.
Constructed from durable, high-quality materials, the ECORAYS TS body is made of powder-coated die-cast aluminium (UNI EN1706) for long-term resistance to corrosion and environmental wear. The fixing components are crafted from stainless steel AISI 316L, ensuring robust support for cable-suspended installations. The optical system uses 99.85% pure aluminium with a vacuum-sealed 99.95% surface finish, meeting A+ optical grade according to DIN EN 16268 standards. Protection is provided by a 5 mm thick flat tempered glass screen with high transparency, while the metallic M20x1.5 gable gland and polyurethane gasket ensure a sealed, weatherproof enclosure.
Combining modular optical design, robust construction, and smart-ready technology, the ECORAYS TS is a versatile and reliable solution for modern urban streets, cultural districts, and public spaces, delivering uniform lighting performance, long-term durability, and future-ready integration into intelligent lighting networks.
