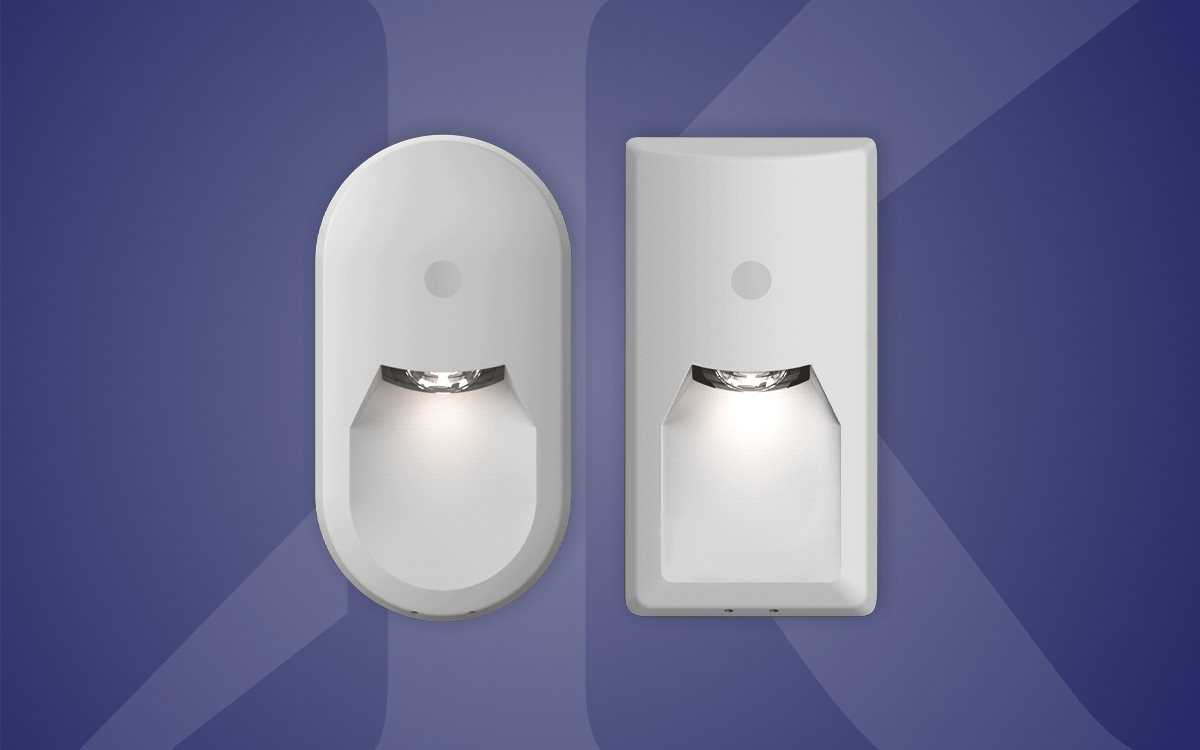

The Hitsville wall mount task light is a ligature-resistant fixture specifically developed for behavioral health environments and other sensitive spaces, including hospitality areas, labor and delivery suites, patient rooms, public areas, and theaters. The fixture offers a capacitive touch dimming switch option, providing precise lighting control for adaptive environments. It is available in two lumen outputs—150 L and 300 L—and can be fitted with an optional IP66 rating for wet or outdoor locations. The fixture features either a pill-shaped or rectangular cast aluminum faceplate with discreet fastener placement along the lower edge, mounting the unit securely to the wall while maintaining a sleek and durable appearance. Optional tamper-resistant screws and a white BioGard™ antimicrobial finish further enhance its suitability for healthcare and high-traffic environments.
The task light employs a high-quality LED source with static white output, specifiable color temperatures of 3000 K, 3500 K, or 4000 K, and a CRI of 90+, ensuring accurate color rendering and visual comfort. The LED module provides up to 300 lumens delivered at a maximum system wattage of 5.9 W and features selectable beam distributions to match specific application needs. The module’s position is adjustable with the optional adjustable light engine (Option -AL), allowing precise directional control of light on work surfaces or task areas. Optical performance is supported by a 1/8″ clear polycarbonate lens integrated into the robust faceplate, with gasketing around the lens and edges for moisture and dust protection.
The fixture is fully rated for indoor and outdoor environments, capable of operating in temperatures ranging from -20°C to 60°C (-22°F to 140°F). Its 0-10V CCR dimming system allows 100% to 1% light level adjustment, and the continuous capacitive touch dimming option (Option -TSD) provides smooth, user-friendly control, although touch dimming functionality is reduced in wet conditions. The fixture is compatible with standard 120–277 V power and is load-insensitive, ensuring stable operation across a wide range of installations.
The housing is constructed of 16 GA galvanized steel, with IK10 impact and vandal resistance when installed using the behavioral mounting bracket. Recessed wall installation is compatible with covered indoor or outdoor locations, and a universal mounting bracket supports both -PLL and -RCT faceplates for convenient field replacement. The faceplates are available in obround or rectangular shapes, pull-tight to the wall, and all installations must use Kirlin-provided housing to maintain UL, C-UL (Canada), and listing compliance. The fixture is Type IC approved for direct contact with insulation and UL Wet-Listed for durability in wet, damp, or dry environments, making it a reliable, safe, and hygienic task lighting solution for healthcare, public, and hospitality spaces.
