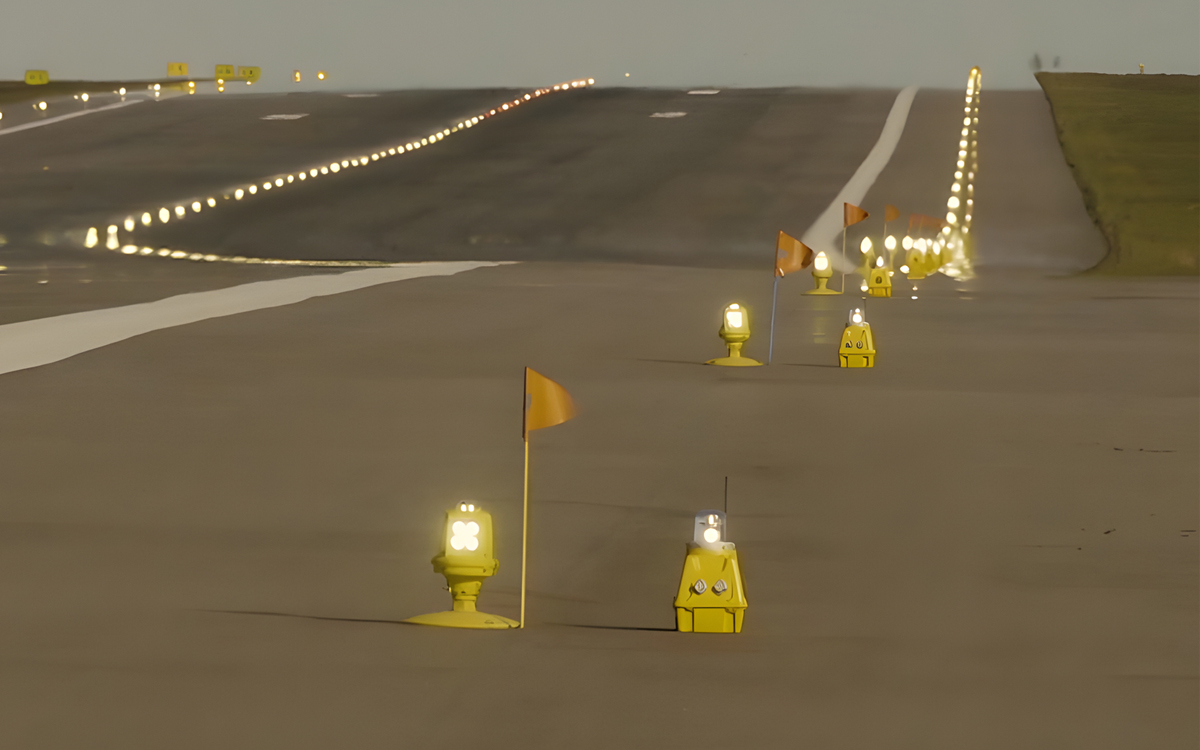

The Medium Intensity Portable Runway Edge Light (White/Red) by S4GA is a versatile and rapidly deployable mobile airfield lighting solution designed for use on temporary runways, remote landing strips, emergency airfields, and backup airport infrastructure. Engineered to meet international aviation regulations, this elevated runway edge light emits white and red light (clear/red), is battery-powered, and can be controlled remotely. Its compact, durable design allows for fast setup and reliable performance in even the most challenging environments.
Compliant with global standards set by ICAO, EASA, FAA, CASA, AFAC, TP312 (Canada), CZ CAA (Czech Republic), and NATO STANAG, the light delivers exceptional optical performance verified by accredited laboratories. The unit produces a light intensity of 1,200 candela (white) and 320 candela (red), using combined optics that are both omnidirectional and bidirectional. The LED module has a lifespan of over 100,000 hours and consumes a maximum of 9 watts. NVG compatibility is available via optional infrared LEDs, allowing for safe operations under night vision conditions. The optics are designed to be user-replaceable for long-term serviceability.
The system supports several battery configurations, offering flexibility for diverse operational needs. The standard version includes two deep-cycle VRLA lead-acid batteries (12V / 9Ah each), delivering up to 180 hours of autonomy at 30% brightness. Alternative options include lithium-ion batteries (408 Wh total capacity, 340-hour autonomy) and LiFePO4 batteries (288 Wh, 240-hour autonomy), both providing extended lifespans of up to 3,000 cycles. For extreme environments, the Arctic Pack utilizes a single 12V / 10Ah Cyclon battery offering 100-hour runtime and up to 15 years of life. All batteries are user-replaceable, air-transportable, and globally available.
Charging options enhance operational flexibility. The light can be recharged using the OCT-401 external charger or through drop-in trailer charging systems, both with an 8-hour recharge cycle. An optional solar panel system enables off-grid operation, making the light suitable for remote or undeveloped locations.
Control and monitoring capabilities are built on a wireless mesh network with over 10 km of relayed range. Operating at 868 MHz (with optional 915 MHz or 2.4 GHz), the system allows steady, flashing, and dusk-to-dawn lighting modes. The unit supports visible light, infrared, or combined output modes. Activation can be managed via the UR-101 handheld controller, UR-201 control and monitoring unit, or the ALCMS computer interface (when connected to UR-201), ensuring seamless integration with existing airfield management systems.
The light prioritizes safety and reliability, offering five levels of system failure protection and a secondary backup battery to maintain operation. Real-time performance monitoring is available through the ALCMS platform, and each light includes a manual emergency ON/OFF button for immediate activation.
Built for rugged conditions, the unit's dome is constructed from borosilicate hardened glass that is UV-resistant, while the main body is made of Lexan polycarbonate, UV-stabilized and colored aviation yellow for visibility. Mounting options include frangible fittings for hard surfaces and rubber pads for flexible deployment on any terrain. The unit includes a detachable antenna, battery level indicator, pressure-stabilizing valve, and a transportation fuse. A robust aluminum carrying handle and optional quick-release or permanent mounting add to field usability. The housing is rated for a 15-year lifespan and features ingress protection (IP68) and impact resistance (IK10), both verified through accredited lab testing. Dimensions are 244 mm x 185 mm x 297 mm.
Environmental performance is equally robust, with an operating temperature range of -20 to 50°C (optional -40 to 80°C), making it suitable for global deployment. Photometric and chromaticity compliance aligns with ICAO Annex 14, Volume I, 9th Edition (2022), clauses 5.3.9.8 and 5.3.9.9, and Appendix 1, Figure A1-1b. The unit also meets the requirements for secondary power supply outlined in the ICAO 7th Edition (2016) and holds STAC conformity certification (2024), along with CE declarations for RED (2014/53/EU) and RoHS (2011/65/EU) directives.
With a focus on operational readiness, resilience, and international compliance, the S4GA Medium Intensity Portable Runway Edge Light provides a reliable lighting solution for temporary, mobile, or emergency aviation operations. Its modular, field-serviceable design, extended battery autonomy, and advanced control features make it an essential tool for defense, civil aviation, and humanitarian flight operations worldwide.
