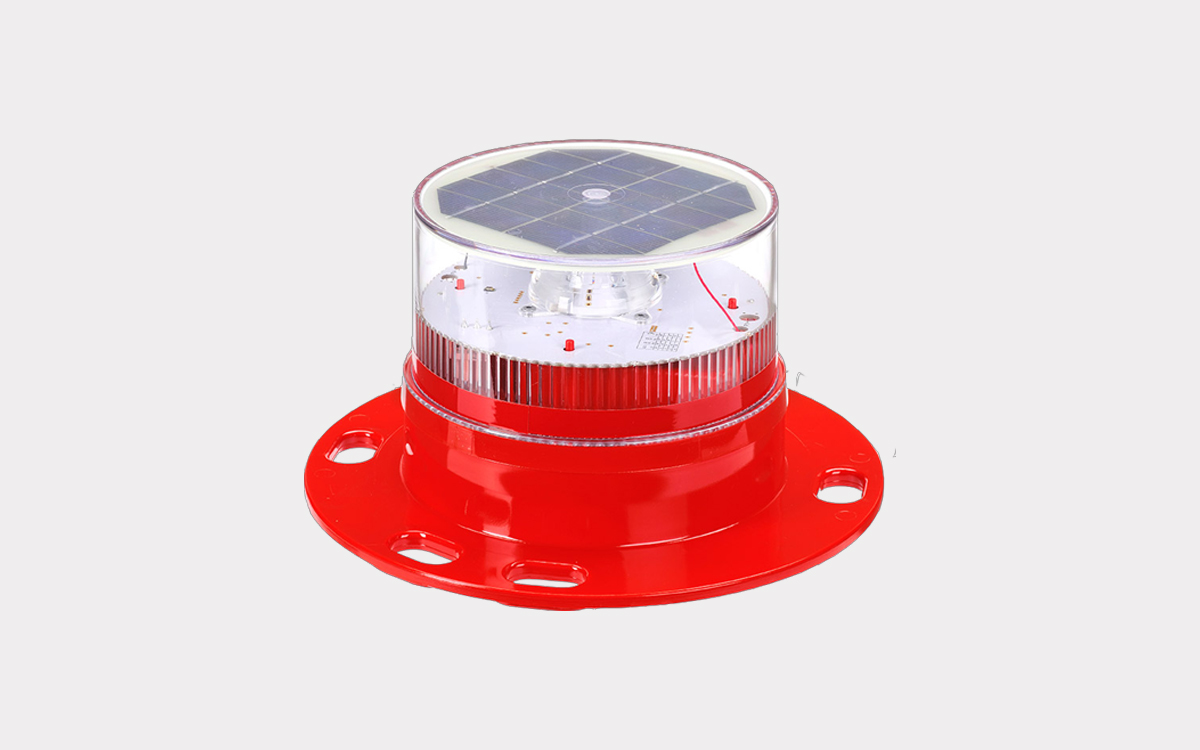

The AV-OL-60 Solar Obstruction and Barricade Light by Avlite Systems is a compact, durable, and self-contained solar-powered LED lighting solution designed for a wide range of hazard, barricade, and obstruction marking applications. Built for rapid deployment and reliable performance in remote or temporary settings, this light operates completely independently of external power sources, utilizing an integrated solar module and internal battery system for dusk-to-dawn illumination. With automatic night activation enabled by a sensitive photodiode, the AV-OL-60 turns on at low ambient light levels and can be configured for either steady-on or flashing output modes. It is particularly suited for use in construction zones, airfield barricades, and general safety hazard locations where grid power is unavailable.
Engineered for durability, the AV-OL-60 carries an IP68 waterproof rating and is certified for compliance with FAA AC150/5370-2F standards, making it suitable for critical barricade and construction lighting installations. The housing and lens are made from UV-stabilized LEXAN® polycarbonate, providing superior resistance to environmental exposure and mechanical impacts. Designed for long-term reliability, the unit’s high-intensity LEDs are rated for over 100,000 hours of operation and require no globe replacements. It also includes a user-replaceable high-grade NiMH battery, available in standard 8.6Ah or optional 17.2Ah capacities, delivering up to 230 hours of runtime at full intensity. The charging process is microprocessor-regulated and powered by a monocrystalline solar module with a 1.4W output.
The AV-OL-60 is compact yet robust, with dimensions measuring 120 mm in height and 231 mm in width, and it weighs approximately 1.1 kg (2.4 lbs), or 1.3 kg (2.9 lbs) with the larger B2 battery option. The light features a 360-degree horizontal LED output and is designed with external optics and interior flute lens architecture for efficient light distribution. With a design life exceeding 12 years and a 3-year product warranty, it ensures long-term value and minimal maintenance. The unit withstands harsh environmental conditions, meeting MIL-STD-202G standards for shock and vibration, operating in temperature ranges from -40°C to +55°C, and resisting wind speeds up to 160 kph (100 mph) and humidity levels from 0 to 100%.
Additional options enhance the AV-OL-60’s functionality, including an external ON/OFF switch, IR LED variants, an external charging port, and extended battery capacity. With ISO9001:2015-certified manufacturing and compliance with CE standards (EN61000-6-4:2019 and EN61000-6-2:2019), the AV-OL-60 exemplifies rugged design, technical precision, and reliable performance for safety-critical lighting needs in aviation, construction, and general hazard environments.
