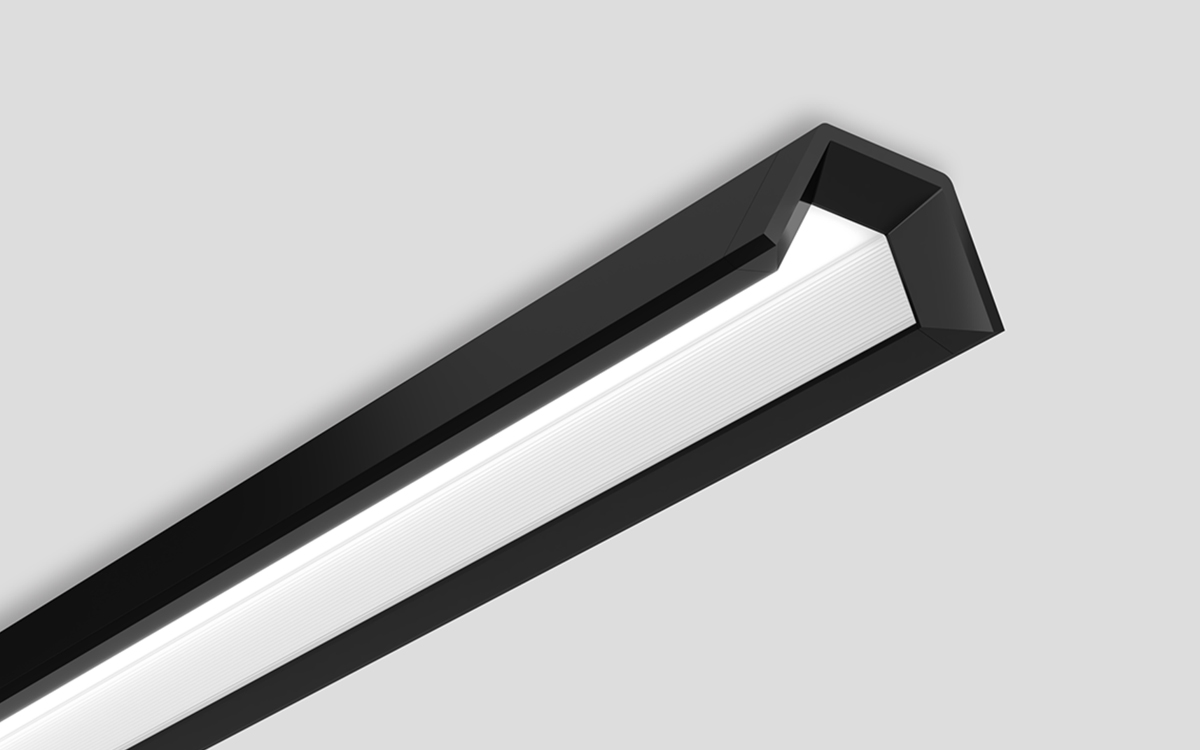

The Zen Surface luminaire from Axis Lighting showcases a refined fusion of engineering and design, offering high-performance LED lighting through an innovative SurroundLite optical system. This advanced lighting solution delivers spherical, three-dimensional batwing distributions with superior efficacy and shielding options that promote visual comfort and lighting effectiveness. Central to Zen’s performance is its precision-engineered light guide made of PMMA, designed to emit light uniformly across both horizontal and vertical planes, creating a balanced and visually pleasing environment.
SurroundLite technology is rooted in the fundamental physics of light interaction with matter. The light guide is composed of precisely coded and aligned molecules that shape the LED output in all directions. This results in multi-directional light distribution that fills every corner of a room and enhances brightness balance. The in-plane mixing capability of the optical system maximizes color uniformity, while the luminaire’s smooth, diffuse light output eliminates direct LED “head-lighting” effects. The SurroundLite design also incorporates microgroove side wall shielding, contributing to glare-free, efficient downlighting that remains comfortable even in high-output applications.
Zen Surface is available in direct or direct/indirect distribution options and outputs up to 900 lumens per foot with an efficacy of up to 89 lumens per watt. The light engines feature a minimum CRI of 80 or 90 and offer color temperature choices of 3000K, 3500K, or 4000K with outstanding consistency, meeting a 3-step MacAdam ellipse standard both within and between fixtures. The LED modules are field-replaceable and upgradable, ensuring long-term value and future adaptability. They are accessible from above using a screwdriver and quick connectors, making maintenance and updates simple.
Constructed with thermal efficiency in mind, the luminaire’s aluminum housing serves as a heat sink to optimize LED life, delivering at least 50,000 hours of operation with 85% lumen maintenance in 25°C ambient temperatures. Zen Surface is suitable for dry and damp indoor environments, with an operational temperature range between 0°C to 40°C (32°F to 104°F). It is certified to UL and CSA standards and meets UL2108 requirements for both integral and remote drivers.
Physically, the fixture is crafted with quality materials: extruded aluminum housing, die-cast aluminum end caps, cold-rolled steel mounting brackets, and a uniform frosted acrylic lens enhanced with a microgroove pattern. The internal components include painted aluminum and die-cast aluminum brackets, all contributing to the fixture's durability and premium finish.
Zen Surface supports multiple smart lighting platforms, including DALI, POE (Power over Ethernet), MOLEX, IGOR, and SMARTENGINE. It is compatible with emergency lighting systems via remote battery packs or emergency circuits, and operates on universal input voltage (120–277V). Available in various lengths—2’, 3’, 4’, 5’, 6’, 7’, 8’, and 12’—Zen Surface offers scalable, seamless design integration for modern architectural spaces.
