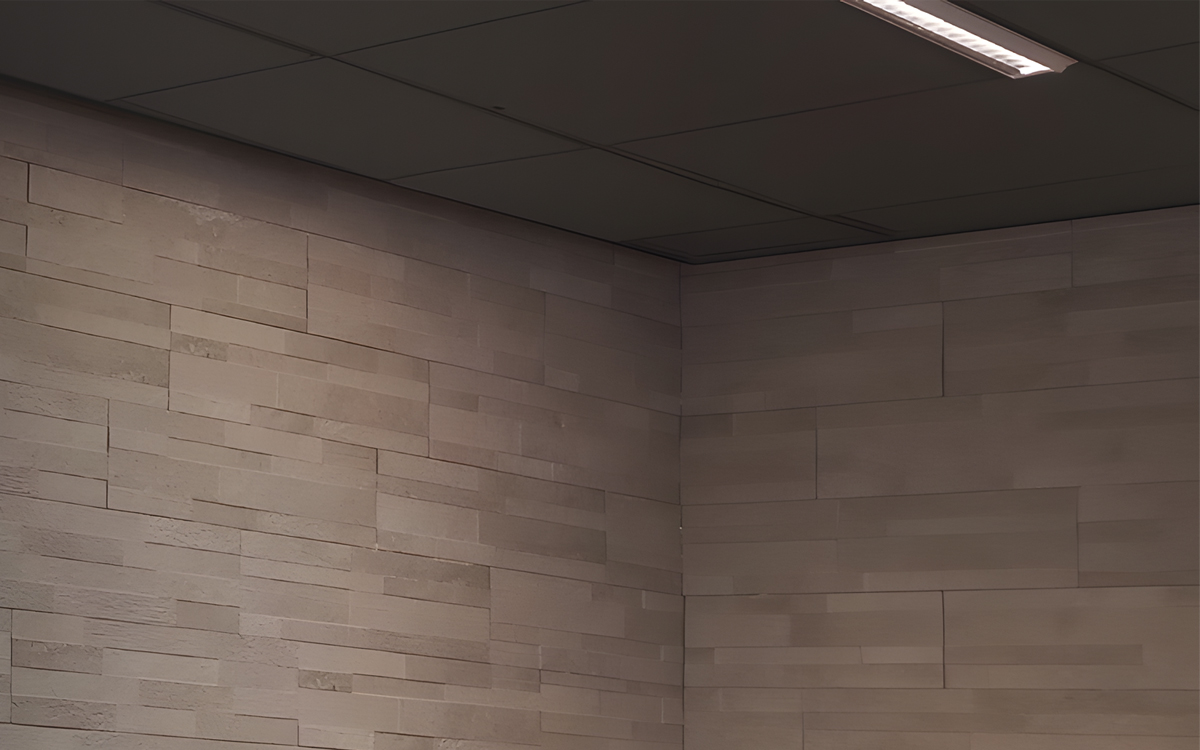

Wall Wash Perfekt is designed to deliver exceptional wall illumination with both efficiency and elegance. Featuring patented asymmetric vertical SurroundLite™ optics, this luminaire combines a sleek, small form factor with innovative optical performance to achieve evenly distributed vertical light. This technology enables luminaires to be spaced up to 10 feet apart without compromising the consistency or quality of wall washing, opening up design possibilities while maintaining visual comfort.
SurroundLite’s advanced 3D distribution allows Wall Wash Perfekt to bathe vertical surfaces in even, glare-free illumination. The wide and comfortable lighting effect enhances architectural features and contributes to the overall ambiance of the space. This makes it particularly well-suited for gallery walls, lobbies, hallways, and other applications that require high-quality vertical lighting.
Constructed with durability and sustainability in mind, the housing is extruded aluminum with a nominal thickness of 0.080 inches and contains up to 70% recycled content. The die-cast aluminum end caps and joiners add structural integrity, while specular aluminum reflectors help optimize light output. The acrylic lens with Microtek detailing ensures efficient light diffusion, and the entire assembly is suspended via aircraft cable for a clean, floating appearance. Cable grips provide easy, secure connections along the length of the product.
The luminaire supports a wide range of driver options, including Lutron LDE1 Hi-lume 1% EcoSystem with Soft-on, Fade-to-Black, as well as DALI, DMX, Xitanium SR, and several Tunable White configurations. Options like DPTW and LDTW drivers offer advanced dimming and color temperature control capabilities. It also supports Power over Ethernet (PoE) drivers and smart control protocols including MOLEX, IGOR, and SMARTENGINE. Emergency lighting compatibility is provided via optional integral battery packs or emergency circuit configurations. Input voltages supported include 120V, 277V, 347V, UNV, and DC.
Wall Wash Perfekt is engineered for seamless continuous runs with a refined connection system. Available in lengths from 2 to 12 feet in 1-foot increments, systems exceeding 12 feet are assembled on-site using Axis’s precision joining mechanisms. This modular approach allows for tailored configurations while ensuring structural stability and lighting uniformity.
Certified to UL and CSA standards, the fixture is IC rated for use in insulated ceilings and compliant with NYC building codes. It is rated for dry and damp locations, operating reliably in ambient temperatures ranging from 0°C to 40°C (32°F to 104°F). The integrated thermal management system uses the aluminum housing as a passive heat sink to extend LED lifespan and maintain performance.
The lighting system incorporates a vertical light guide optical system that is currently patent pending. A black multigroove linear trim enhances aesthetics, while optional black louvers provide deeper longitudinal shielding. The microgroove aluminum material, finished in black, completes the clean visual profile.
Wall Wash Perfekt offers a minimum CRI of 80 or 90, ensuring accurate color rendering. It is available in fixed CCTs of 2700K, 3000K, 3500K, and 4000K, all with excellent color consistency within a 3-step MacAdam ellipse. For more advanced dynamic color options, Axitune systems are also available (consult technical documentation).
The luminaire delivers up to 1000 lumens per foot with efficacy reaching up to 84 lumens per watt. It features direct asymmetric light distribution and is available in standard segment lengths of 2', 3', 4', 5', 6', 8', and 12', with system run options for extended applications. Wall Wash Perfekt is a comprehensive lighting solution where form meets function, offering a balance of visual performance, sustainability, and flexibility.
