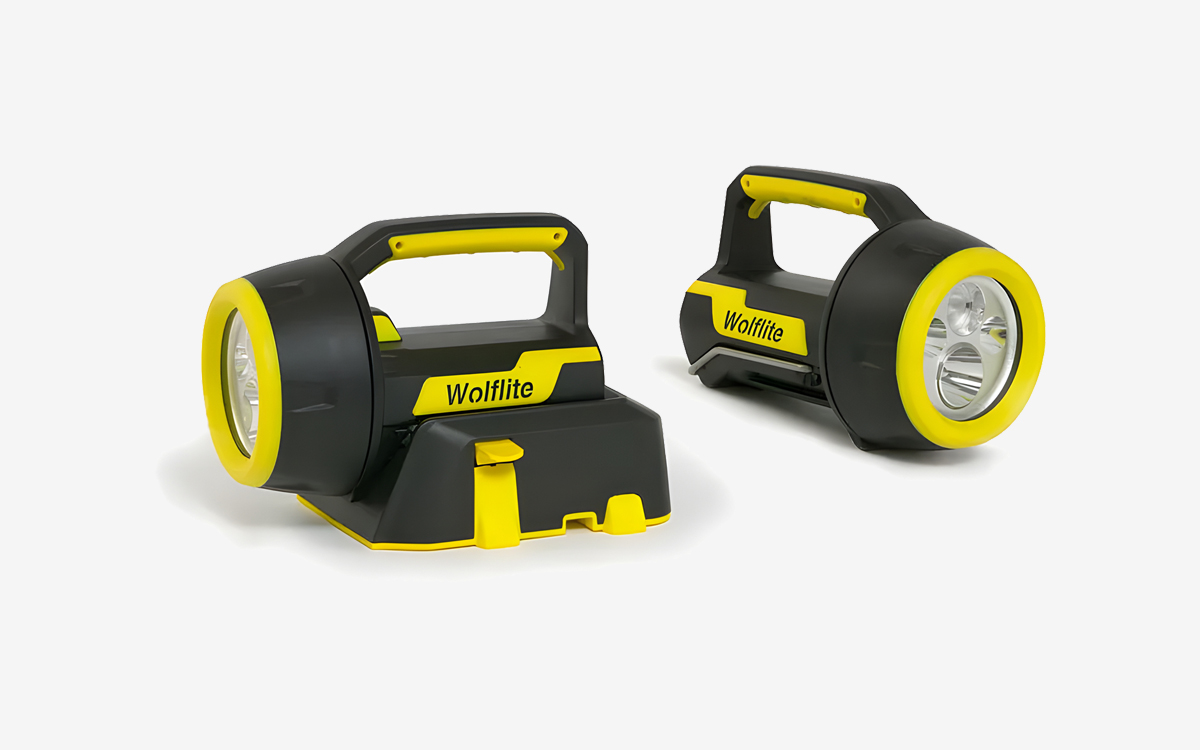

The Wolflite® XT Rechargeable Handlamp represents the pinnacle of modern lighting technology, delivering exceptional performance, robustness, reliability, and versatility tailored for the harshest and most demanding environments. Fully CE marked to the ATEX directive and IECEx certified, this handlamp is designed for safe operation in potentially explosive atmospheres, including Zones 1 and 2 for gas, and Zones 21 and 22 for dust. Additionally, a Zone 0 certified version is available, broadening its suitability for even more hazardous locations.
Available in multiple models to optimize performance for specific tasks, the XT Rechargeable LED Handlamp features bespoke optics combined with the highest performing ‘fitted for life’ LED light sources. These innovations ensure outstanding light output from a high-intensity spot beam, ideal for applications that require concentrated illumination. For tasks needing broader but less intense lighting, a wide-angle flood option is also offered. Furthermore, select models can be equipped with additional colored LED signals to enhance functionality. All XT range handlamps offer intuitive single-handed switching, designed to be easily operated even while wearing gloves, allowing users to switch functions quickly and efficiently in challenging conditions.
Battery life varies by model, with high output durations ranging from 4 hours on the XT-50 to 11 hours on the XT-90. When set to power-saving mode, these durations effectively double, offering extended use during prolonged operations. Battery charge status is clearly indicated through a series of high-intensity red LEDs that progressively turn off as power diminishes, culminating in a flashing beam that signals the need for recharging. The lamp’s lithium-ion battery technology ensures improved reliability by eliminating the common ‘memory effect’ seen in older batteries. The quick-charge base station fully replenishes the handlamp’s battery in as little as two hours, depending on the model. This charging dock also doubles as a holder with a convenient ‘snap-in/snatch-out’ mechanism that securely retains the lamp while allowing fast removal. Additionally, an emergency illumination function automatically activates the handlamp if power to the charger is interrupted, providing a reliable standby light source in critical moments.
Constructed with a compact, lightweight, yet high-strength body, the XT Rechargeable Handlamp offers proven impact resistance even at sub-zero temperatures. The rugged design includes a rubber-armored lens ring and reinforced handle and sides to improve grip and absorb shocks. Its lens is manufactured from toughened glass, providing excellent resistance to scratches and chemical corrosion. The enclosure itself is electrostatically safe and non-hazardous, contributing to its full IP67 certification, which guarantees dust-tight sealing and protection against immersion in water.
The Wolflite XT Rechargeable Handlamp is certified to ATEX and IECEx standards for use in Zones 1 and 21, with an additional Zone 0 version available for more stringent applications. Its ultra-bright high-power LED delivers up to 430 lumens, while switchable spot and flood beam options enhance versatility across different lighting requirements. The lamp can operate continuously for up to 11 hours at full power, with power-saving mode extending this to 22 hours. All models except the XT-50 include an integral stand that enables hands-free beam direction, enhancing user convenience. Rapid charging capability replenishes the battery in about two hours. It also features an emergency illumination mode that activates during power failures to the charger. The handlamp is supplied with a shoulder carrying strap for easy transport and is suitable for both cyclic use and short or long-term standby applications.
The industrial certifications for the Wolflite XT handlamp include I M2/II 2GD Ex ib I Mb/IIC T4 Gb IP67 and Ex ib IIIB T185°C Db, with an operational ambient temperature range of –30°C to +40°C. The mining certifications include I M2 Ex ib I Mb IP67 and I M1 Ex ia I Ma IP67, reflecting the product’s versatility in extreme environments. It is protected by intrinsic safety classifications “ib” and “ia” for Zones 1 and 2 gas groups IIA, IIB, and IIC, and Zones 0, 1, and 2 gas groups IIA, IIB, and IIC, respectively. Its dust protection covers Zones 21 and 22, dust groups IIIA and IIIB, with a maximum surface temperature rating of 185°C.
Certified under ATEX Baseefa09 ATEX0326X and IECEx BAS 09.0153X, the handlamp’s enclosure is made from impact-resistant thermoplastic with electrostatic non-hazardous properties. The lens is constructed from toughened glass to ensure durability, while the entire unit is rated IP67 according to EN60529:1992, assuring excellent ingress protection against dust and water for reliable operation in the most demanding hazardous environments.
