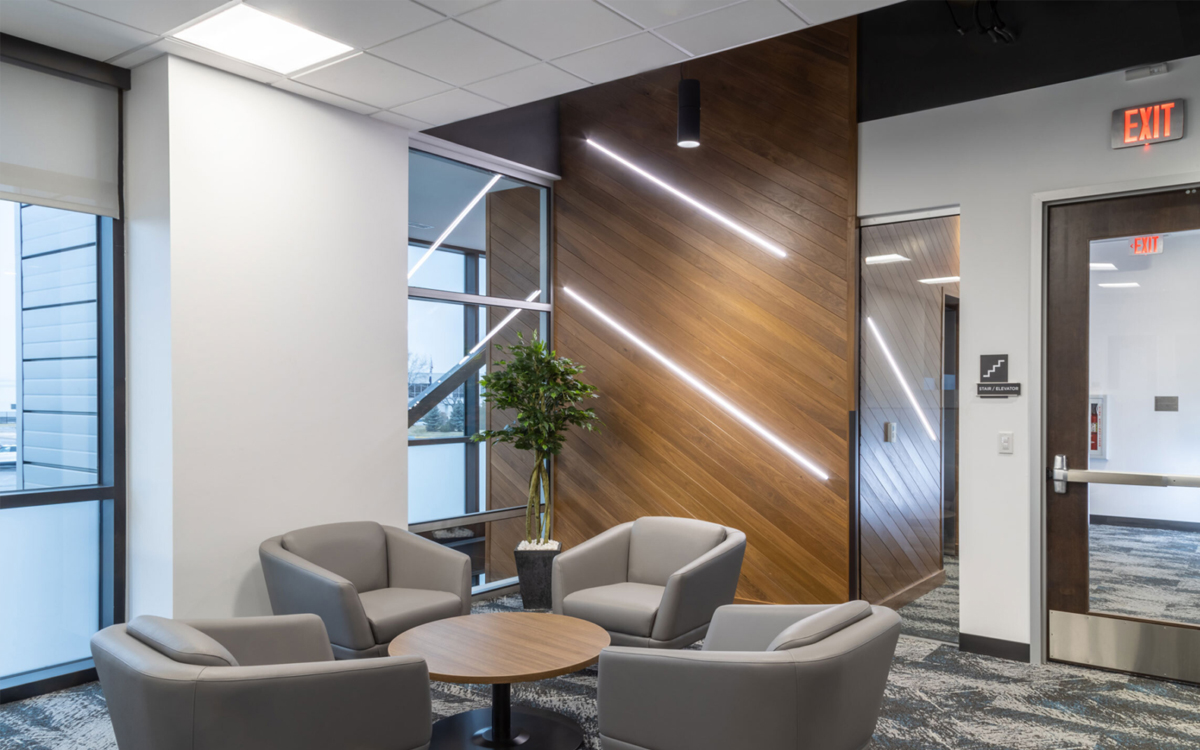

Sculpt Wall is part of Axis’s highly versatile Sculpt linear lighting family, designed to empower lighting designers with maximum creative freedom. With a slender 1 ½" wide profile, Sculpt Wall enables the creation of refined, trace-like lines of light across vertical surfaces, offering aesthetic precision without sacrificing visual comfort. The system is designed for modularity and scalability, with segment lengths available up to 12 feet and the option for continuous runs, allowing seamless integration into walls for dynamic, layered illumination in architectural spaces.
Crafted with a strong extruded aluminum housing and die-cast aluminum end caps, Sculpt Wall fixtures are engineered for durability and elegance. Interior components like white powder-coated reflectors and extruded acrylic lenses with injection-molded precision ensure a clean, uniform light output. The system uses quick-connect cable grips and sliding aircraft cable suspension for flexible installation. Axis also provides a robust joiner system, allowing long, uninterrupted light runs by combining standard and custom-length segments into unified assemblies.
Sculpt Wall supports a wide range of advanced control options, including 0-10V dimming, DALI (Types 6 and 8), DMX, and Lutron EcoSystem. Tunable white drivers and BIOS SkyBlue® dynamic spectrum technology are also available, offering circadian-friendly illumination with bio-dimming features. These BIOS drivers can maintain consistent light output while reducing correlated color temperature (CCT) from 4000K to 2700K by dimming the SkyBlue component, and full tunability from 4000K–2700K or 3500K–2700K with TW drivers. Color consistency is ensured with tight 3-step MacAdam ellipse control across all CCTs.
Engineered for energy-efficient performance, Sculpt Wall delivers high efficacy and long LED life, exceeding 50,000 hours with 85% lumen maintenance at 25°C ambient temperatures, backed by IES LM-80 testing compliance. Thermal management is optimized through the aluminum housing, which acts as a passive heatsink to ensure maximum lifespan and performance stability.
Sculpt Wall is also compatible with PoE systems from MOLEX, IGOR, and SmartEngine, and supports UL2108 remote or integral drivers. Emergency lighting support is offered via optional battery backup or emergency circuit integration. Rated for dry and damp locations, the fixture is suitable for interior use across a variety of architectural applications, including corporate interiors, hospitality spaces, educational environments, and public buildings.
Ultimately, Sculpt Wall brings light to architecture with precision, flexibility, and refined design, enabling dynamic wall lighting installations that integrate seamlessly into creative, modern interiors.
