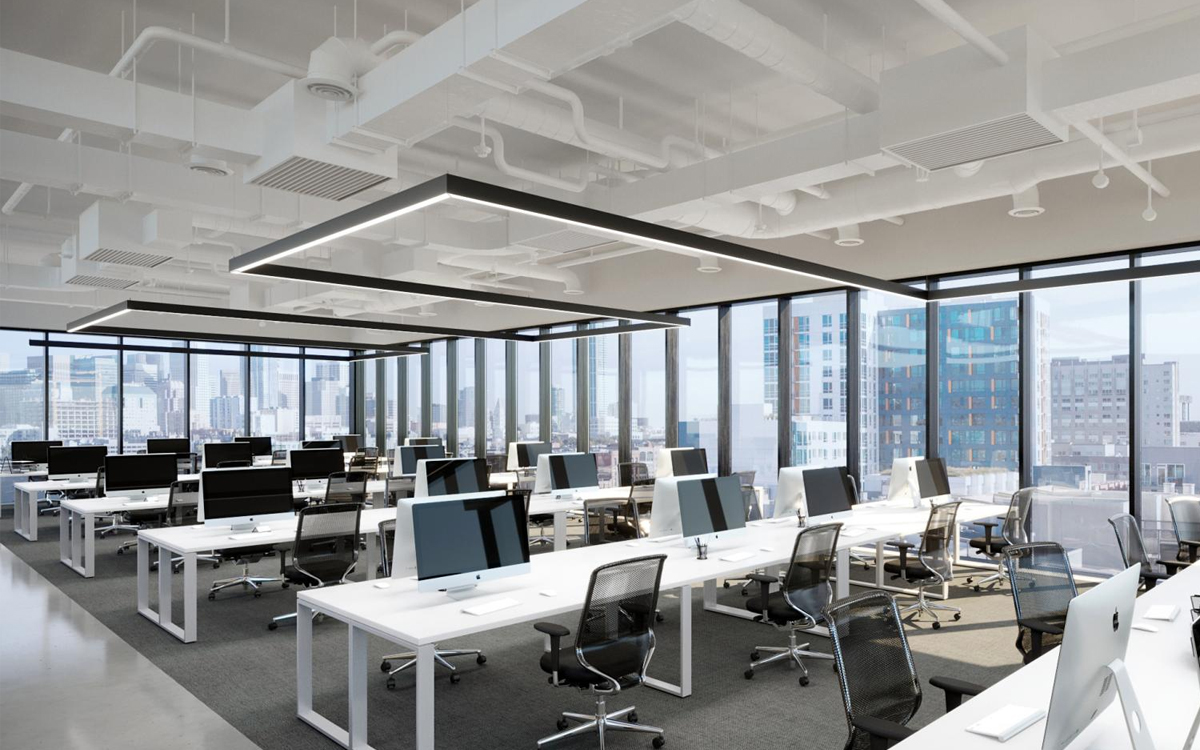

The Tunnel Systems™ suspended continuous luminaire reinvents a classic functional form with a graceful incurved enhancement, combining refined style with exceptional functionality. This design not only elevates the fixture’s visual appeal but also delivers output and efficacy levels that surpass typical standards, meeting rigorous specification requirements. Offering a wide range of component alternatives, Tunnel Systems allows designers to customize the luminaire precisely to suit the unique needs of each space. Its luxurious finishes and smooth lines create a sophisticated lighting solution that does not compromise on performance. The Systems option further enables a cleaner, more integrated lighting layout that seamlessly follows the architecture and interior design of any environment.
Constructed with a robust aluminum body and finished with a durable powder coating, Tunnel Systems ensures both longevity and elegance. The fixture is suspended using steel cables complemented by a silver braided power cable, delivering a streamlined and polished aesthetic. It features integral high power factor (HPF) electronic drivers compatible with 120-277V and 347V in North America, as well as 240V in Europe, all housed within the fixture to simplify installation and maintenance.
The diffuser is made of opal acrylic with a width of 2.4 inches, providing uniform, soft illumination. Tunnel Systems supports integration into modern data networks through Power over Ethernet (PoE) connectivity, enabling advanced smart lighting controls. For circadian lighting applications, the fixture is compatible with BIOS systems; detailed information can be obtained by consulting the factory. Additionally, a tunable white feature is available, offering a color temperature range from 2700K to 6500K for customizable ambiance. An RGBW option is also available, allowing for dynamic, full-spectrum color control upon factory consultation.
The system includes an integral emergency lighting option that provides 1.5 hours of backup illumination in North America and 3 hours in Europe. This self-contained emergency system incorporates an inverter module, NiCad batteries, an LED charge indicator, and a test switch (available in North America only). However, this option is not available with a 347V power supply. Tunnel Systems is compatible with various sensor and control platforms, including Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, and Philips, among others, ensuring broad integration possibilities.
Mechanically, Tunnel Systems luminaires mount directly over a J-box, which is supplied by others, streamlining the installation process. Fixture lengths can be customized in 1-inch increments, allowing precise adaptation to architectural requirements; inquiries for specific configurations should be directed to the factory. The fixture offers impressive longevity, with a reported L70 lifespan exceeding 60,000 hours at 25°C (77°F) at 2000 lumens per foot (6000 lumens per meter), and an estimated L70 extending beyond 165,000 hours under the same conditions.
Delivered lumens and efficacy ratings are based on LEDs at 4000K with a minimum color rendering index (CRI) of 80, ensuring bright, high-quality light output. Rated for damp locations, Tunnel Systems is suitable for environments with moisture exposure. For projects requiring seismic compliance, bracing kits are available; interested parties should consult the factory for details. This luminaire was designed by Serge Cornelissen, reflecting a commitment to blending aesthetic elegance with high-performance architectural lighting solutions.
