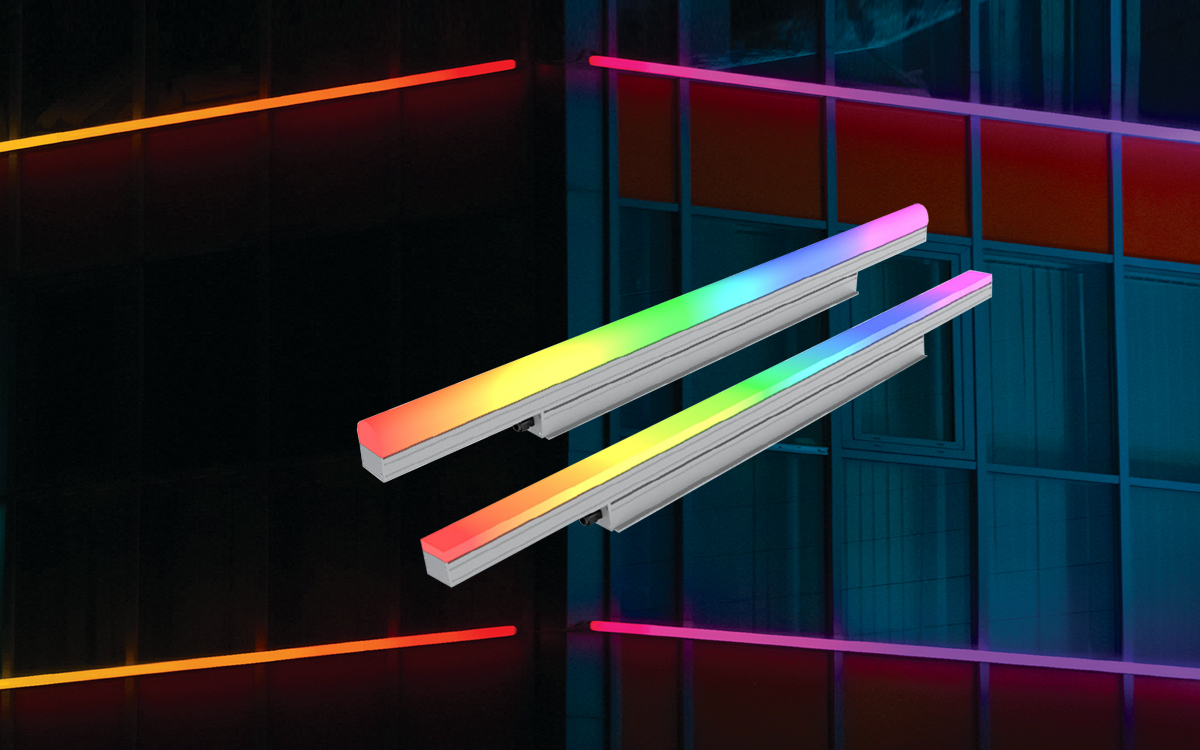

The Pixel Bar is a high-performance RGBW lighting fixture designed for dynamic color-changing effects in architectural applications such as façades, bridges, and decorative installations. Engineered for seamless illumination, it delivers striking visual impact without visible diodes thanks to the choice of square or rounded acrylic lenses that provide smooth light diffusion. With individually addressable pixels, the Pixel Bar allows precise DMX control for creating intricate patterns, flowing sequences, and vibrant effects tailored to any environment.
This versatile lighting bar is available in three standard sizes—23.62 inches (600 mm), 35.43 inches (900 mm), and 47.24 inches (1200 mm)—making it adaptable to a variety of installation scales. Designed for both interior and exterior use, it features a rugged IP66-rated housing with a quick-connect plug, ensuring reliable performance even in demanding outdoor conditions. The fixture operates on 100–277V AC input and offers mounting flexibility with options for fixed installation or a tiltable stand for adjustable aiming.
Performance is optimized for both output and efficiency. The Pixel Bar delivers up to 219.28 lumens per foot (719.25 lm/m) with the square lens and up to 216.97 lumens per foot (711.67 lm/m) with the round lens. Beam control is defined by lens choice, with the square version offering a 140° x 110° distribution and the round version providing a wider 180° x 110° spread. With a low energy consumption of just 7.9 watts per foot (26 W/m), the Pixel Bar provides powerful RGBW illumination that is both efficient and visually impactful.
Whether used to highlight architectural structures, enhance decorative details, or create vibrant media façades, the Pixel Bar combines durability, precision control, and seamless light output in a compact, versatile form.
