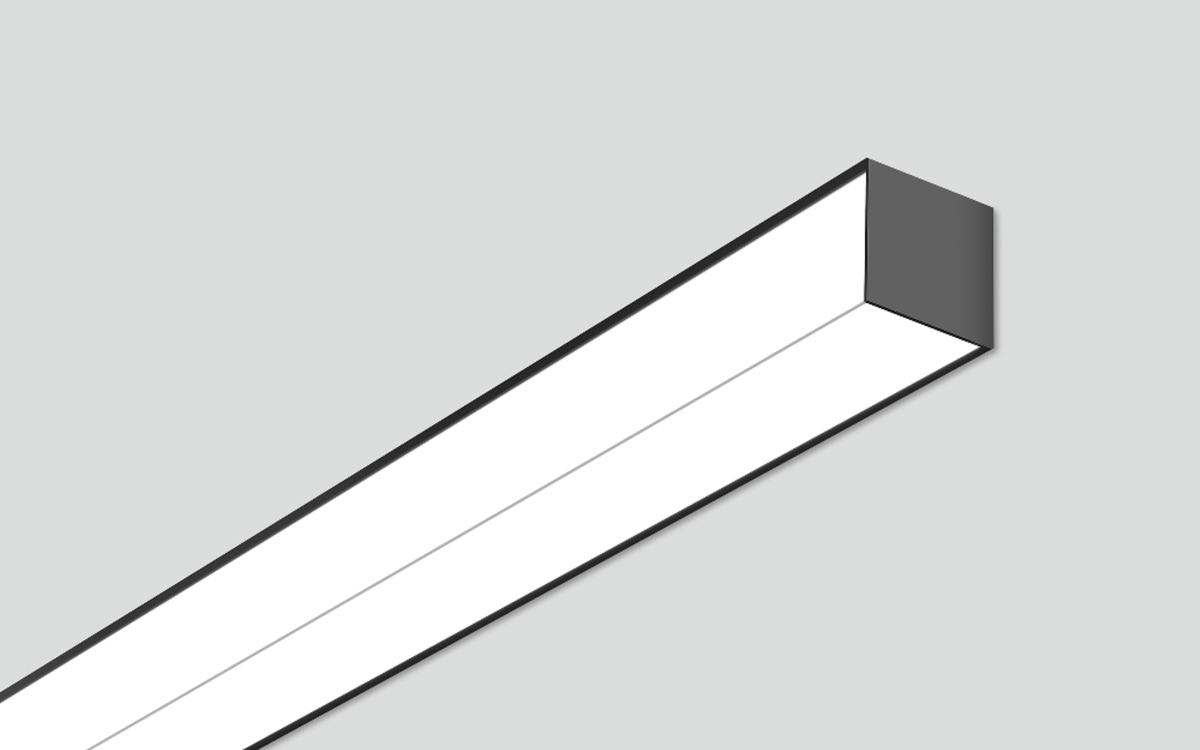

Edge 2 Wall is a versatile linear ambient lighting solution designed to enable creative and original wall-mounted lighting configurations. With its two-sided lens, Edge 2 allows for striking vertical, horizontal, and corner installations, offering architects and designers the freedom to form signature lighting patterns that enhance any space. This flexibility extends to complex corner arrangements and continuous wall-mounted runs, making it ideal for both bold design statements and refined architectural accents.
The system is built from durable extruded aluminum with a nominal thickness of 0.075 inches and incorporates up to 70% recycled content, supporting sustainable design goals. Cast aluminum end caps and die-formed interior steel brackets ensure a robust structure, while white powder-coated reflectors and extruded acrylic lenses provide efficient light distribution with a polished finish.
Edge 2 Wall luminaires feature integral driver technology with standard 0–10V dimming, and they are compatible with a wide range of control systems, including Power over Ethernet (PoE) platforms such as Molex, IGOR, and Smartengine. The fixture is UL2108 certified for either integral or remote driver configurations. Emergency options include remote battery packs or circuits, while the system operates across input voltages of 120V, 277V, 347V, or universal configurations.
Lighting quality is maintained with a minimum CRI of 80 or 90, and the luminaire supports color temperatures of 2700K, 3000K, 3500K, and 4000K, all with exceptional consistency within a 3-step MacAdam ellipse. The LED system ensures a minimum of 50,000 hours of life with at least 85% lumen maintenance at a 25°C ambient temperature, in compliance with IES LM-80 standards. The aluminum housing also serves as a heat sink to optimize thermal management and fixture longevity.
Edge 2 Wall is dry and damp location rated, designed for indoor environments with operating temperatures ranging from 0°C to 40°C (32°F to 104°F). For added layout flexibility, the system supports continuous runs with near-seamless connections. Standard lengths include 2', 3', 4', 8', and 12', with custom lengths also available. System runs over 12 feet are assembled onsite from 4', 8', and/or 12' modules using a precision joining system that ensures structural and aesthetic cohesion.
Altogether, Edge 2 Wall offers a powerful combination of form, function, and flexibility—delivering people-centric lighting that adapts beautifully to contemporary architectural needs.
