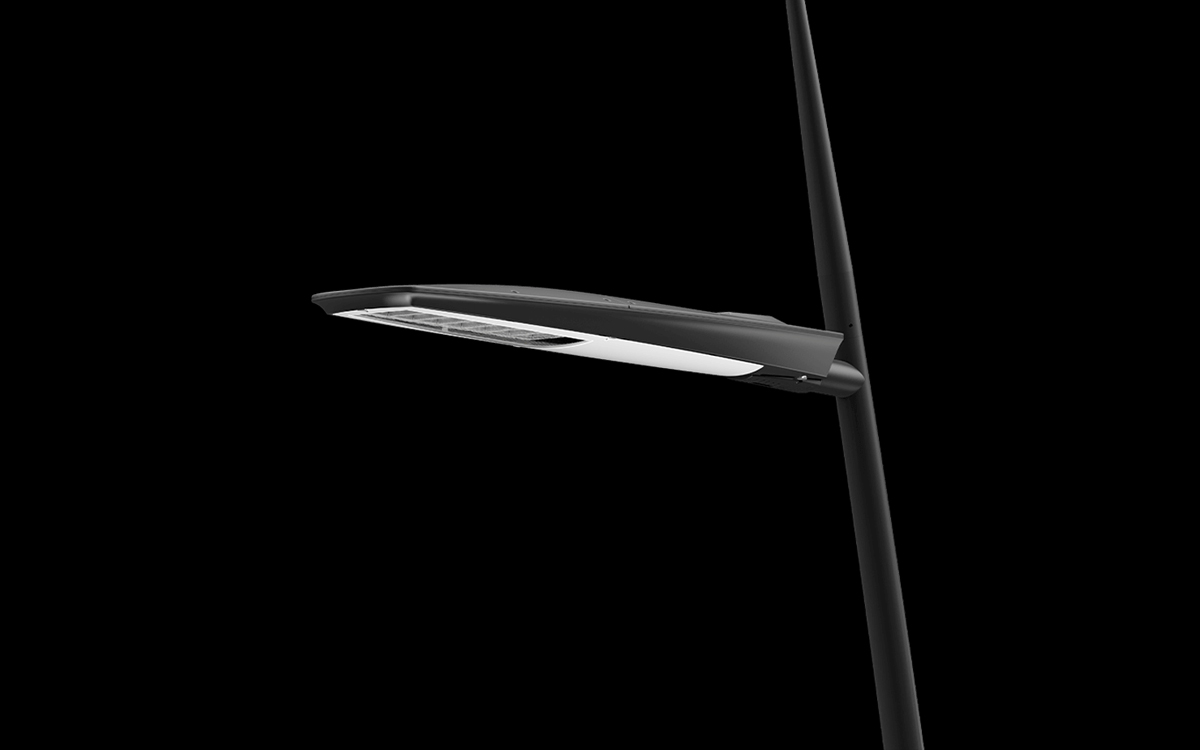

STYLO represents the perfect fusion of design excellence and technical precision, earning the prestigious Red Dot Design Award for its remarkable contribution to urban and street lighting. This LED street light stands out for its elongated shape, defined lines, and avant-garde style, creating a recognizable and elegant presence in any urban landscape. The product combines aesthetic appeal with functional performance, ensuring both high visual comfort and energy-conscious operation while enhancing the character of surrounding spaces.
The contemporary design of STYLO is ideal for cities seeking to elevate the usability and appeal of streets, squares, and pedestrian areas. Beyond energy considerations, the luminaire provides opportunities to improve urban spaces, offering visually comfortable and well-distributed light. Its architecture allows for a perfect balance between practical illumination and a distinctive stylistic identity, transforming streets and urban areas into engaging and safer environments.
STYLO is equipped with a wide range of optics to meet diverse lighting needs. The asymmetrical optics include STE-M/S for suburban streets, STU-M/S for urban streets and cycle paths, STW for wide urban and suburban roads including wet asphalt surfaces, SV and SV2 for very narrow streets or highway entrance/exit turns, S05 for streets, urban, and green areas, and STA/STA1 for long interdistance roads or wide V and P-class routes. Colour temperature is available at 4000K, with an optional 3000K, and the CRI is ≥70. The luminaire has a total luminous output ratio of 100% with zero upward light emission, ensuring minimal light pollution, and it belongs to the photobiological safety EXEMPT GROUP. The LED source efficiency reaches 168 lm/W at 525mA, Tj=85°C, 4000K.
The luminaire can be equipped with a diffusive screen to soften light output, supporting up to six modules with either glass or polycarbonate options. STYLO has a protection degree of IP66 and IK08 impact resistance with a polycarbonate screen, or IK07 with a glass screen. The weight is a maximum of 11.5 kg, with an exposed surface of 0.09 m² on the side and 0.25 m² on top, while the projected SCx and SCy areas measure 0.043 m² and 0.18 m² respectively. Mounting is versatile, with brackets accommodating Ø42-65mm poles or spigot entries of 100mm, and tilt angles adjustable at 0°, -5°, -10°, and -15°.
STYLO includes removable and replaceable LED modules and a removable gear tray for maintenance flexibility. It operates in temperatures ranging from -40°C to +50°C and supports a rated voltage of 220–240V at 50/60Hz. The luminaire maintains a power factor greater than 0.95 at full load for all control modes (F, DA, DAC), with optional on-load switch integration and cable connections supporting up to 4mm². Surge protection is available up to 10kV, with optional SPD up to 10kV/10kV CM/DM or 10kV-10kA type 2+3, including an LED signal and thermo fuse to disconnect the load at end of life.
Control systems are extensive and include fixed power (F), automatic dimming (DA) with a default virtual midnight profile, custom DA profiles (DAC), constant light flux (FLC), wireless single-point communication (WL), and DALI digital dimming. Sockets include 7-pin NEMA (ANSI C136.41) and 4-pin ZHAGA (Book 18), allowing for broad compatibility with smart city networks.
The construction of STYLO uses die-cast aluminium (UNI EN1706) powder painted for the body, canopy, and fixing components. The optic is made of 99.85% aluminium with a surface finish of 99.95% achieved through vacuum-sealed deposition, meeting class A+ standards (DIN EN 16268). Screens are available in 5mm flat tempered glass with high transparency or UV-resistant polycarbonate as an optional choice. Cable glands are plastic, M20x1.5 standard or M25x1.5 optional, both IP68 rated, and polyurethane gaskets ensure durability and protection against environmental factors.
STYLO combines award-winning design, technical versatility, and smart control capabilities, making it an ideal choice for modern urban and suburban street lighting projects.
