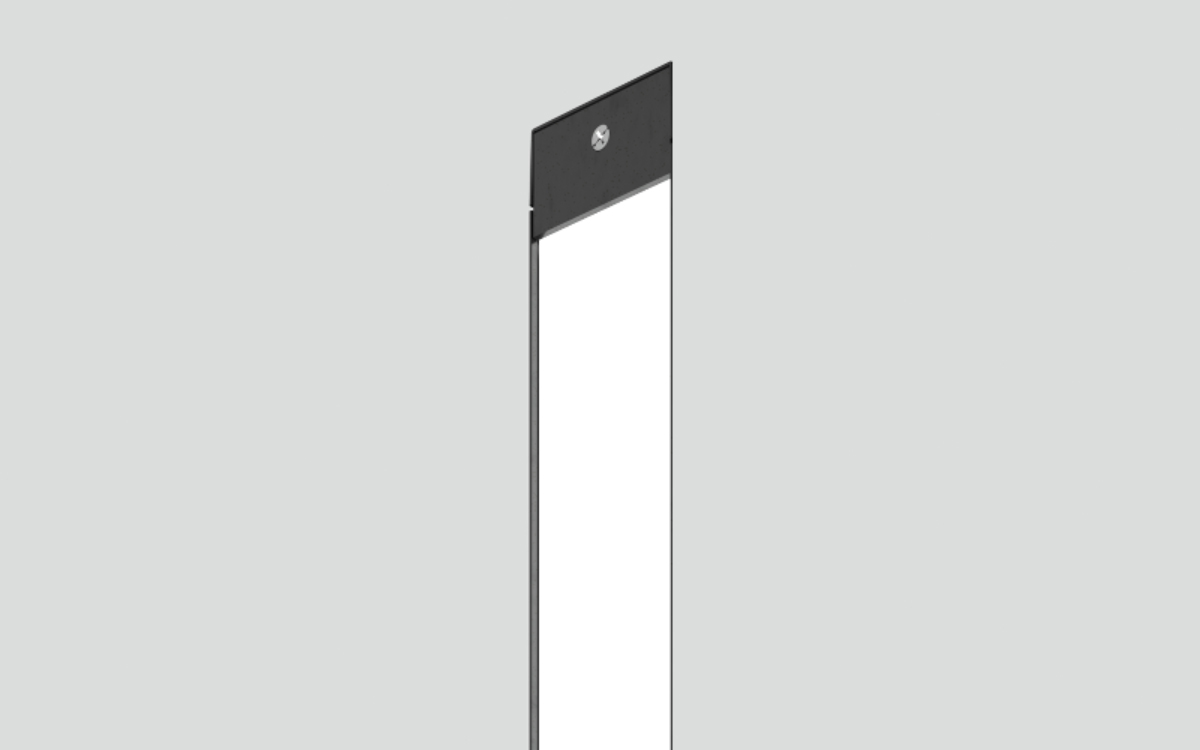

The Wet Beam 4 Vertical luminaire is a purpose-built LED lighting solution engineered for wet locations and harsh environments. Its robust construction begins with an extruded aluminum housing that contains up to 70% recycled content, ensuring both sustainability and durability. The fixture is sealed with die-cast zinc end caps and molded elastomer gaskets to resist moisture ingress, making it ideal for installation in exterior soffits, canopies, and institutional facilities like hospitals and shopping malls. The satin lens, crafted from extruded polycarbonate, is protected by additional extruded elastomer gaskets, while internal brackets are formed from 16-gauge sheet steel for added structural integrity.
This fixture supports a wide range of driver technologies to meet diverse project requirements. It comes standard with Lutron’s LDE1 Hi-lume 1% EcoSystem with Soft-on, Fade-to-Black dimming, and is also compatible with DALI, DMX, Xitanium SR for wireless sensors, Power over Ethernet (PoE) systems, MOLEX, IGOR, and SMARTENGINE. Both integral and remote driver configurations are UL2108 certified. An optional emergency circuit or integral battery pack ensures uninterrupted operation in the event of power loss. The fixture accommodates input voltages of 120V, 277V, 347V, and universal (UNV) voltage configurations.
The Wet Beam 4 Vertical delivers exceptional light quality and efficiency. It is available in multiple correlated color temperatures—2700K, 3000K, 3500K, and 4000K—with a minimum CRI of 80 or 90, offering excellent color rendering and consistency within a 3-step MacAdam ellipse across fixtures. The LED modules are engineered to maintain 85% of their initial lumens for a minimum of 50,000 hours in 25°C ambient conditions, verified by IES LM-80 testing. Thermal management is provided by the aluminum housing, which doubles as a high-performance heat sink to extend the longevity of the LEDs.
The fixture is sealed to meet wet location standards and certified to both UL and CSA requirements. Its modular design allows for the creation of continuous rows using 4' and 8' sections, with custom lengths up to 12' also available. Light output reaches up to 1000 lumens per foot with an efficacy of up to 87 lumens per watt. Available in lengths from 2' to 8', either as standalone units or system runs, the Wet Beam 4 Vertical is a high-performance solution for outdoor architectural applications demanding reliability, flexibility, and energy efficiency.
