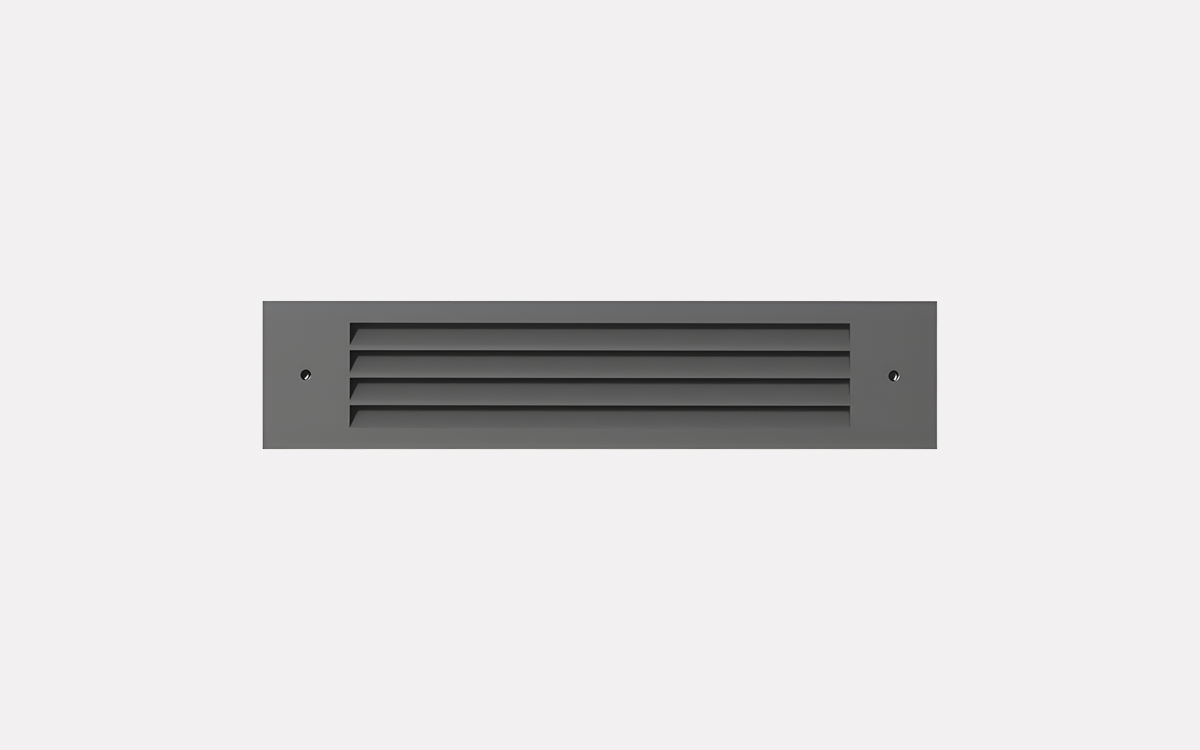

The STL134 LED is a compact, high-performance recessed wall luminaire engineered for outdoor and semi-outdoor environments. Designed with durability and reliability in mind, it features a marine-grade die-cast aluminium alloy body treated with 5CE superior corrosion protection and secured with PCS polymer-coated stainless steel hardware. With an IP66 rating for ingress protection and IK07 impact resistance, this luminaire delivers long-term performance in challenging conditions such as public walkways, commercial facades, or coastal developments.
The fixture is equipped with a robust polycarbonate main lens and a high-grade silicone rubber gasket to ensure a secure, weatherproof seal. The luminaire is factory-sealed to eliminate the need for opening during installation, enhancing both convenience and longevity. Two cable entries are included for flexible wiring access.
An integral EC electronic converter is built into the STL134, supporting a power factor greater than 0.9 and operating on a 220–240V, 50–60 Hz power supply. Surge protection of 1–2/2 kV further safeguards internal components from voltage fluctuations. The luminaire also incorporates advanced thermal management, ensuring efficient heat dissipation and optimal lumen output from the 6W LED source.
To ensure proper alignment and secure mounting, a pre-installation blockout is recommended, especially when installing into concrete surfaces. The STL134 is available in a variety of architectural RAL colours including Signal Black (RAL9004), White Aluminium (RAL9006), Grey Aluminium (RAL9007), Anthracite Grey (RAL7016), and Traffic White (RAL9016), providing design flexibility for integration into a wide range of environments.
Combining minimalist aesthetics with rugged construction and efficient LED performance, the STL134 is ideal for low-level illumination in pathways, stairways, entryways, and architectural accent lighting.
