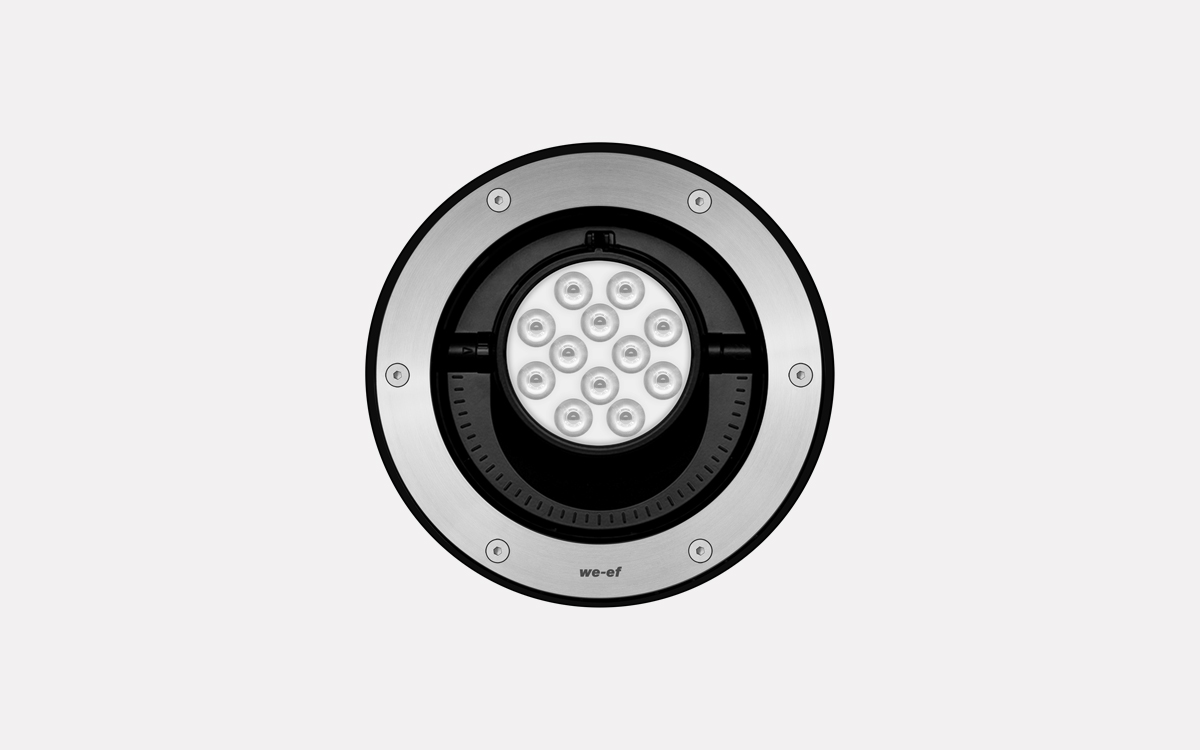

The ETC130-GB-TW LED is a high-performance gimbal inground luminaire featuring advanced Tunable White technology for precise control over color temperature and ambience. Designed for demanding outdoor environments, this fixture boasts a robust stainless steel construction with PCS polymer-coated stainless steel hardware, ensuring excellent corrosion resistance and long-term durability. A silicone rubber gasket and safety glass lens provide additional protection, with the luminaire engineered to withstand mechanical loads of up to 5 tonnes—making it suitable for areas where occasional vehicular traffic may occur at low speeds.
Engineered for reliability, the ETC130-GB-TW LED carries an IP67 protection rating, with further testing certifying it to IP66, IP68 (0.1 bar for 3 hours up to 1 meter depth), and IP69K at 80°C in accordance with DIN standards. The factory-sealed termination chamber includes a cable gland and 1.5 meters of flexible PVC-free cable with spiral cable bending protection to enhance durability during installation. The integral EC electronic converter is housed in a thermally separated compartment to optimize heat dissipation and performance.
The fixture’s factory-installed LED circuit board incorporates OLC® One LED Concept and Tunable White technology, allowing dynamic white color adjustment through a DALI interface. Precision optics, optimized using CAD, deliver superior illumination with excellent glare control. The gimbal-mounted system offers 360° rotation and 30° tilt, allowing precise aiming and flexibility for architectural and landscape lighting applications.
Light distribution options include symmetric wide and medium beams, asymmetric wallgrazer, and wallwash, providing flexibility for various project needs. The system supports a power supply of 220-240V at 50-60 Hz with a power factor greater than 0.9, and includes surge protection rated at 1/2 kV, with an optional SP10 upgrade for enhanced electrical resilience.
For installation, an optional mounting blockout is recommended and must be ordered separately. Additionally, the luminaire can be specified with an anti-slip ceramic coating (ASC) compliant with DIN 51130 Trip Classification 10, offering added safety in pedestrian zones. The fixture is not intended for permanent underwater use and must be powered down in the event of flooding.
