Adjustable Beam LED Track Lighting Head with Dimming Controls for Forward Phase, Reverse Phase, and Electronic Low Voltage Systems

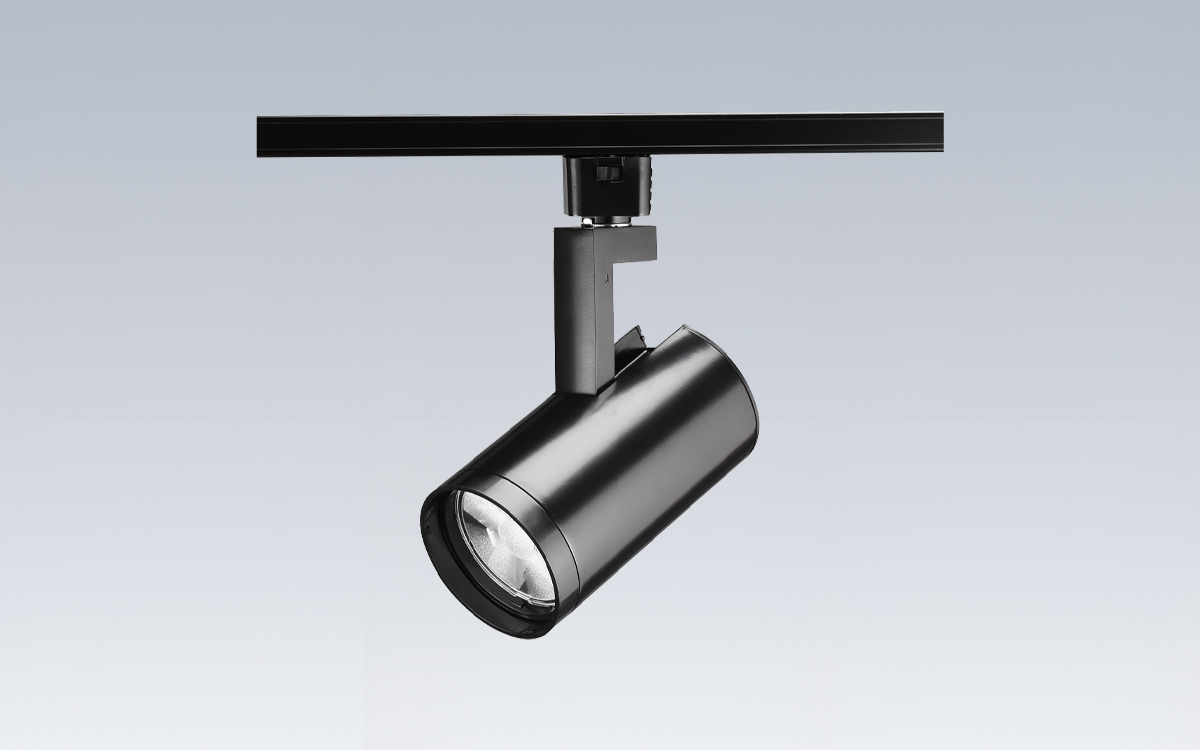

The R620L Series 15W adjustable beam LED track spotlight offers an economical and versatile lighting solution with a simple, timeless cylindrical aesthetic suitable for a variety of commercial and retail applications. Its proprietary, patented optical system enables continuous beam adjustment from 17° to 53° simply by rotating the front bezel, without the need for tools or additional accessories. This innovative feature allows the fixture to accommodate a wide range of beam patterns, making it ideal for applications where the exact beam distribution is unknown at the time of specification or purchase. The R620L is available in 2700K, 3000K, 3500K, and 4000K color temperatures, with a minimum 80 CRI, while optional high CRI versions provide 90 CRI for enhanced color rendering. An optional bayonet-mount accessory holder is also available, accommodating one accessory if desired. The fixture is compatible with Juno Trac-Lites™ and Trac-Master® track systems, and can also be specified with various factory-assembled alternate adapters to fit practically any competitive 120V track system.

Construction of the R620L spotlight employs robust die-cast aluminum housing, which provides excellent thermal management for the LED, yielding 70% lumen maintenance at 50,000 hours of operation. The simple cylindrical design blends seamlessly with surrounding décor and is offered in white, black, and silver finishes. The integrated LED array delivers reliable, consistent color quality, with chromaticity within a 3-step MacAdam Ellipse. Standard versions provide 80 CRI, while optional high CRI versions reach 90 CRI minimum with an R9 value greater than 50. The driver is integrated into the fixture housing behind the LED engine, featuring an insulating air gap and thermal potting compound for optimized thermal performance and quiet operation. The fixture is dimmable using factory-approved high-quality dimmers, including Acuity nLight controls with nPP PCD EFP ELV Phase Adaptive Power Pack at the track input, providing a dimming range from 100% down to as low as 1% typical, with a minimum load of one fixture and a maximum load of 1920W at 120V AC. Forward and reverse phase dimming options are also supported for incandescent and magnetic low voltage applications.

The R620L’s patented optical system offers continuous beam adjustment, maintaining lumen output within a narrow 40-lumen band throughout the full adjustment range. The optional accessory holder attaches directly to the front bezel without tools, allowing field installation or factory installation of one accessory for further beam shaping. Horizontal aiming covers 360°, while vertical aiming reaches 95° in either direction, with locking set screws and aiming scales for precise, repeatable positioning.

The R620L includes Juno Universal Track Adapter, compatible with Trac-Master 1- or 2-circuit tracks, Trac-Lites tracks, monopoints, and special mountings. Copper alloy contacts provide reliable spring action with no arcing, while the spring-loaded positive latch and patented embossed polarity arrows ensure secure track attachment and proper grounding. Alternate track adapters, including TEK, GTYPE, HTYPE, and LTYPE, are also available, allowing compatibility with multiple competitive track systems.

The R620L Series 15W adjustable beam LED track spotlight is UL and C-UL listed, union-made, and assembled in the U.S.A. It qualifies under the Buy America(n) Act and the Build America Buy America Act for government procurement. This combination of flexible beam control, dimming compatibility, robust construction, and aesthetic versatility makes the R620L a highly adaptable and reliable option for track-mounted accent and task lighting applications.
