The WarmDim retrofit LED trim modules combine patented WarmDim technology (Patent US 8,710,754) with efficient LED performance to offer a practical and economical upgrade for existing 6-inch housings. These modules emulate the warmth and dimming characteristics of traditional incandescent fixtures while producing 600 lumens of LED light using less than 12 watts, representing less than a quarter of the energy consumption of standard incandescent lamps. IC-rated construction allows installation in housings fully covered with insulation, and a wide variety of interchangeable baffle and cone trim inserts enable customizable fixture aesthetics directly in the field.

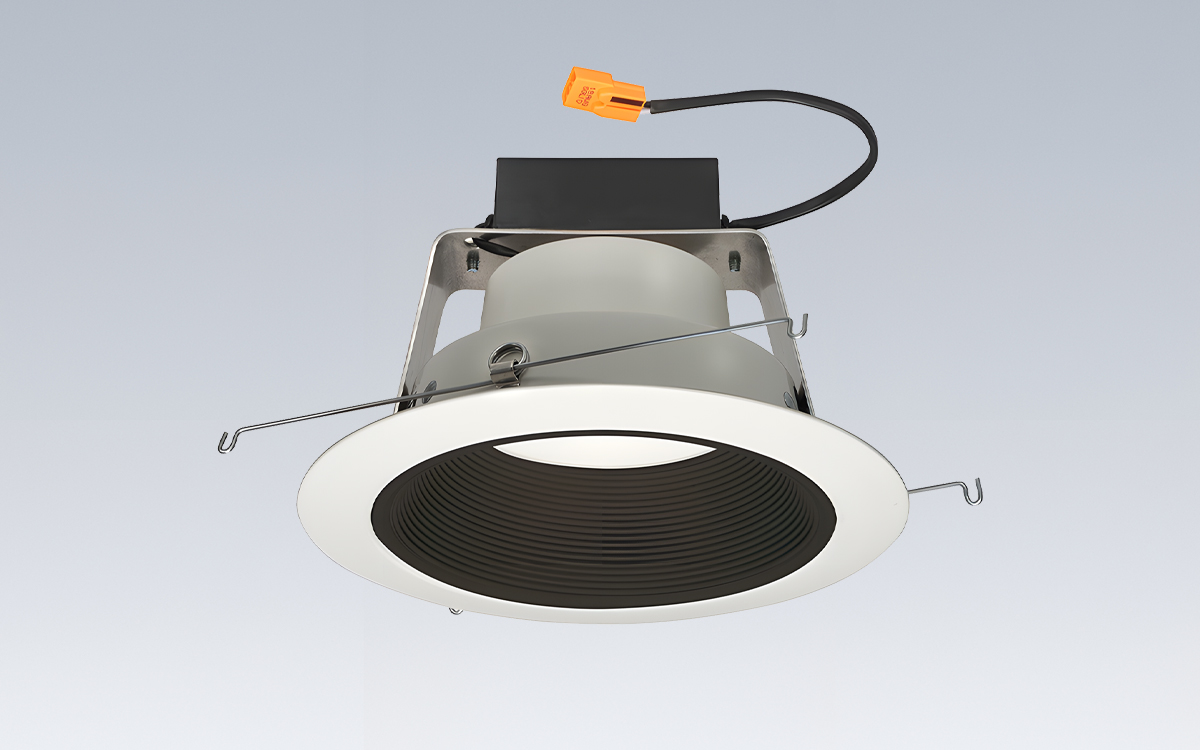

The trim modules feature an all-in-one design where the LED light engine is mounted directly to an aluminum housing with a white painted flange. A quick release slot facilitates field changes of trim inserts, while torsion springs are included as standard for secure installation. An accessory kit is available for housings that lack torsion spring retaining brackets, ensuring broad compatibility with standard 6-inch incandescent housings and Juno QC6 or QC6R quick-connect recessed housings.
The LED light engine integrates a proprietary, microprocessor-controlled system that replicates the dimming performance of incandescent light sources. Mounted directly to a high-purity aluminum housing, the engine provides efficient heat transfer to maintain long LED life. At full lumen output, the light engine produces a 3000K color temperature, with a minimum 90 CRI maintained throughout the dimming range. The system operates with a dedicated 120-volt driver featuring a power factor greater than 0.9 and compatibility with most incandescent, magnetic low voltage, and electronic low voltage wall box dimmers. A comprehensive list of compatible dimmers is available to ensure proper operation.
The optical system utilizes a computer-optimized reflector with a high-reflectance white finish, paired with a high-transmission diffusing lens to conceal the LEDs while producing over 600 lumens at only 12 watts. Trim inserts are available in baffle or cone designs, with a range of finishes pre-installed in the trim and the ability to interchange in the field. Additional inserts can be ordered as accessories to expand customization options.
Electrical connections include a quick-connect plug for use with QC6 and QC6R housings and a medium base socket adapter whip for installation into 6-inch incandescent housings. Products shipped to California do not include the socket adapter. The retrofit module is compatible with most 6-inch recessed housings measuring at least 5-1/4 inches high with an inside diameter of 6 to 6-3/4 inches, although removal of the housing socket plate or bracket may be required for proper fit. For housings without torsion spring brackets, the V6RLTRB accessory is recommended.
Compatible housings include Juno IC2, TC2, IC22, IC23, and IC21 Series; VuLite V6IC and V6TC Series; Halo H7 Series; Thomas PS1 and PS3 Series; Capri QL1 Series; and Lithonia L7X and LC6 Series. With patented WarmDim technology, long-life LEDs, and flexible trim options, these modules provide a practical solution for upgrading 6-inch recessed housings while maintaining the warmth and aesthetic appeal of traditional incandescent dimming.
