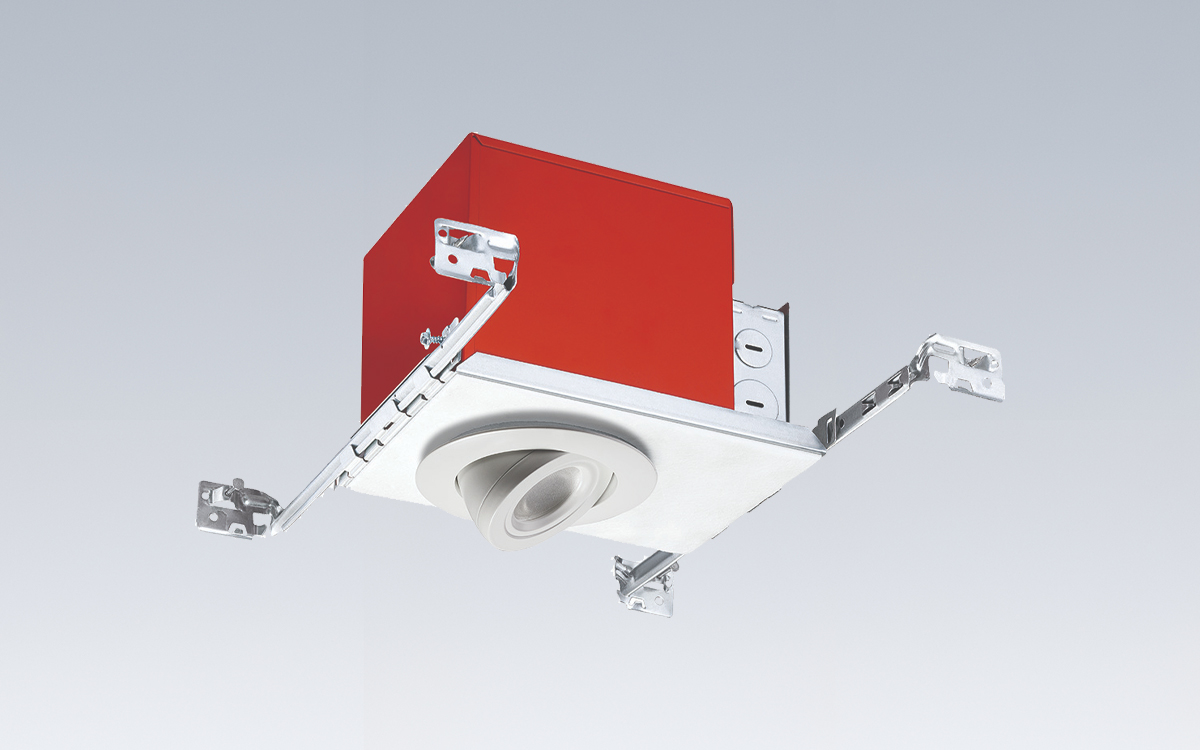

The IC1FW LEDT24 FireWall™ 4-inch fire-rated quick connect LED housing offers a highly efficient, plug-in solution for retrofit LED trim modules. This 120V non-screw base connector enables simple installation and facilitates a clean, secure connection without additional fasteners. The housing’s innovative, patent-pending mechanical design has been rigorously tested to meet UL263 and ASTM E119 standards, providing protection against the spread of heat and flames into the ceiling cavity for both one-hour and two-hour fire-rated assemblies. Its shallow profile allows installation in 2 x 6 construction and permits complete insulation coverage, while the Air-Loc® sealing minimizes air infiltration and exfiltration, contributing to reduced heating and cooling costs. The IC-rated fixture is suitable for both residential and commercial applications, including multi-family housing, hotels, assisted living, dormitories, and other multi-level construction projects with shallow plenums and new construction environments.
The IC1FW LEDT24 housing is constructed from powder-coated steel with an integrated, patent-pending low smoke intumescent barrier. This single-layer fire-resistant barrier eliminates the need for additional housing assemblies to meet fire codes and simultaneously reduces sound transmission between floors. The vertically adjustable housing accommodates ceilings up to 1 ½ inches thick. The low-profile design measures less than six inches in height and weighs only four pounds, making handling and installation straightforward. For wood joist installations, the housing incorporates the patented Real Nail® 3 telescoping bar hanger system (US Patent D552,969), allowing rapid positioning anywhere within 24-inch on-center joist spacing and offering a removable nail for repositioning when necessary.
Electrical connections are simplified with the 120V plug-in connector, compatible with all Juno retrofit LED trim modules. The pre-wired junction box includes six ½-inch and one ¾-inch knockouts, four knockouts for 12/2 or 14/2 NM cable, and provisions for a ground wire. The junction box is UL and cUL listed for through-branch wiring with a maximum of six #12 branch circuit conductors. Removable access plates and pryout-equipped knockouts enable fast, secure installation using the included quick-connect electrical connectors.
Fire resistance specifications confirm the housing meets UL263, ASTM E119, and CAN/ULC-S101 standards for both U.S. and Canadian installations. It is suitable for one-hour floor/ceiling and roof/ceiling gypsum assemblies under UL Design No. L500 and P500, as well as two-hour assemblies under UL Design Nos. L500, L505, L511, L536, L538, L541, L556, L577, M500, M510, M521, and M543. The fixture may be used in fire-resistant floor-ceiling and roof-ceiling designs as documented in the UL Fire Classified Directories CDHW and CDHW7. The housing is ASTM E283 Air-Loc® certified and has STC/IIC sound ratings for effective acoustic performance.
The IC1FW LEDT24 housing is compliant with the 2019 Title 24 Part 6 JA8 high efficacy LED light source requirements. When paired with the RLD trim module, the housing is suitable for wet location installations in indoor covered ceilings. UL and cUL certifications ensure compatibility with U.S. and Canadian electrical codes, and the product maintains superior safety and performance standards in damp locations. With its shallow design, fire-rated integrity, and Air-Loc sealing, the IC1FW LEDT24 housing provides a reliable and code-compliant solution for both new construction and retrofit LED downlight installations.
