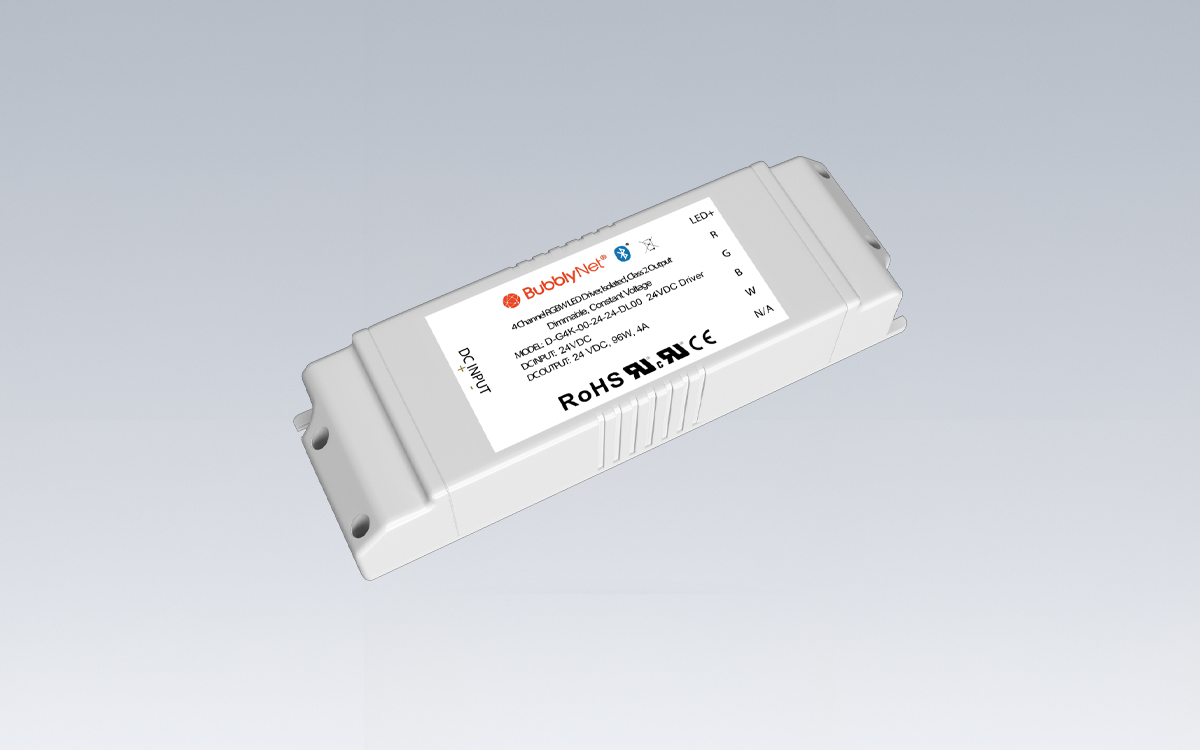

The D-G4K-00-24-24-DL00 is a four-channel LED driver designed to provide an efficient and reliable solution for constant voltage RGBW applications, including LED strip lights, LED panel lights, and linear light fixtures with power requirements of up to 96W. Its versatility makes it suitable both for standalone installations and as an integral component in complex Bluetooth® Mesh networks, providing a robust foundation for scalable lighting systems.
This LED driver operates on a 24VDC input and delivers a 24VDC output with a maximum current of 4,000mA. It is built to withstand a wide range of operating conditions, functioning effectively within temperatures from -10° to 50°F (-23° to 10°C). To ensure safe and reliable operation, the driver incorporates multiple protection mechanisms, including safeguards against overcurrent, short circuits, overvoltage, and overheating. The compact form factor, measuring 5.875 inches by 1.75 inches by 1.125 inches (149.2 x 44.5 x 28.6 mm), allows for flexible installation in a variety of environments.
Installation is straightforward. Once powered with 24VDC, the D-G4K-00-24-24-DL00 automatically broadcasts its identification code, signaling its readiness for commissioning via the Bubblynet App. The device can be installed as a standard non-dim four-channel driver, and immediately upon power-up, it begins broadcasting non-provisioned advertising messages to alert the provisioning app that a new device is available to join the network. Through the app, users can connect to the LED driver, configure security keys, assign addresses, and input necessary network data, enabling the driver to integrate seamlessly into the Bluetooth® Mesh network. Once joined, the driver can be configured for data publishing and subscribing, allowing for coordinated control across multiple devices.
For optimal network performance, it is recommended that the LED driver be installed within 30 feet of the nearest device in the Mesh network. Signal strength may be reduced if devices are enclosed in metal housings or positioned near large metal barriers. The driver supports programmable dimming curves, including soft on/off transitions and linear or logarithmic dimming profiles, enabling precise control of lighting effects. As a Class 2 device, the D-G4K-00-24-24-DL00 offers safe and efficient operation, with wireless 2.4 GHz connectivity providing reliable performance for both individual and networked lighting applications.
