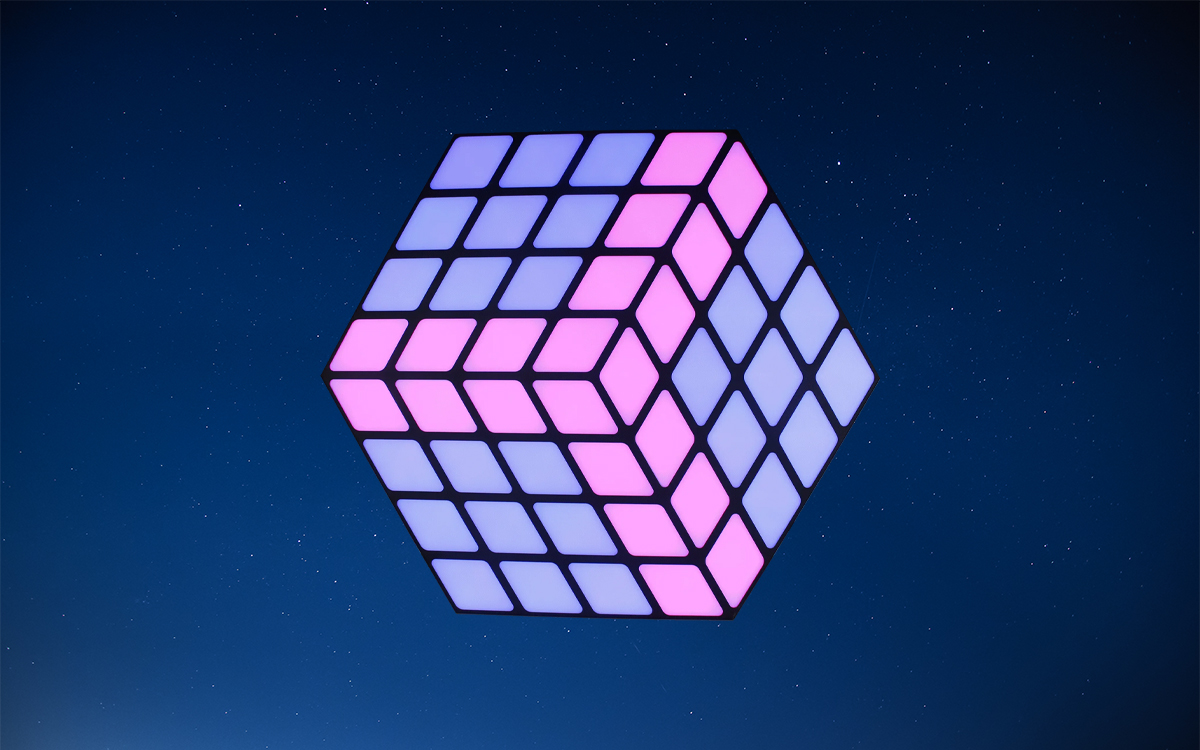

The Squarodox 3D RGB LED effect panel is a large-format, highly versatile lighting fixture designed for immersive visual experiences in live events, concerts, installations, and architectural displays. Measuring 23.6 inches by 19.7 inches by 3.2 inches, this panel features a unique three-dimensional cube layout that allows for dynamic 3D light shows, pixel-mapped video playback, and fully customizable visual effects. Each unit contains 192 3-in-1 RGB 5050 LEDs, offering precise color mixing and high-intensity output suitable for creating captivating walls of light or intricate modular designs. Individual LED control enables advanced pixel mapping for custom animations, moving graphics, and synchronized visual sequences.
The Squarodox 3D panel offers multiple operational modes, including DMX512, master/slave, auto, and sound-active programs, providing flexible control for a wide range of applications. Users can choose from 5, 8, 41, 144, or 149 DMX channel modes to meet different complexity and pixel-mapping requirements. Standard USITT DMX-512 protocol support, along with 3-pin DMX in/out connections, ensures compatibility with professional lighting control systems. Additional control is available through the four-button LED menu panel, which allows for rapid configuration of built-in programs, color presets, strobe effects ranging from 1 to 25 Hz, and synchronization across linked fixtures.
The fixture’s modularity is emphasized by its innovative mounting design. A centered rear omega bracket and six perimeter mounting points allow multiple Squarodox 3D panels to be linked together, creating expansive walls of light or custom geometric structures. Each cube weighs just 12.8 pounds, making it easy to assemble large-scale installations without extensive rigging. PowerCON-compatible input and output connections provide reliable AC power distribution, while the fixture operates on 90–260 VAC at 50–60 Hz with a power draw of 48W, 0.66A, and a power factor of 0.62.
With its combination of advanced pixel mapping, sound-activated effects, built-in programs, and robust modular design, the Squarodox 3D RGB LED effect panel is ideal for live performance venues, concerts, stage shows, digital art installations, and creative architectural applications where dramatic, customizable visual effects are required. Its high-density RGB LEDs, flexible DMX control, and scalable modular layout make it a professional-grade solution for producing immersive 3D lighting environments.
