3-in-1 RGB LED Strobe/Blinder/Wash Light with Built-In Pulse, Ramp, and Random Strobe Effects via DMX

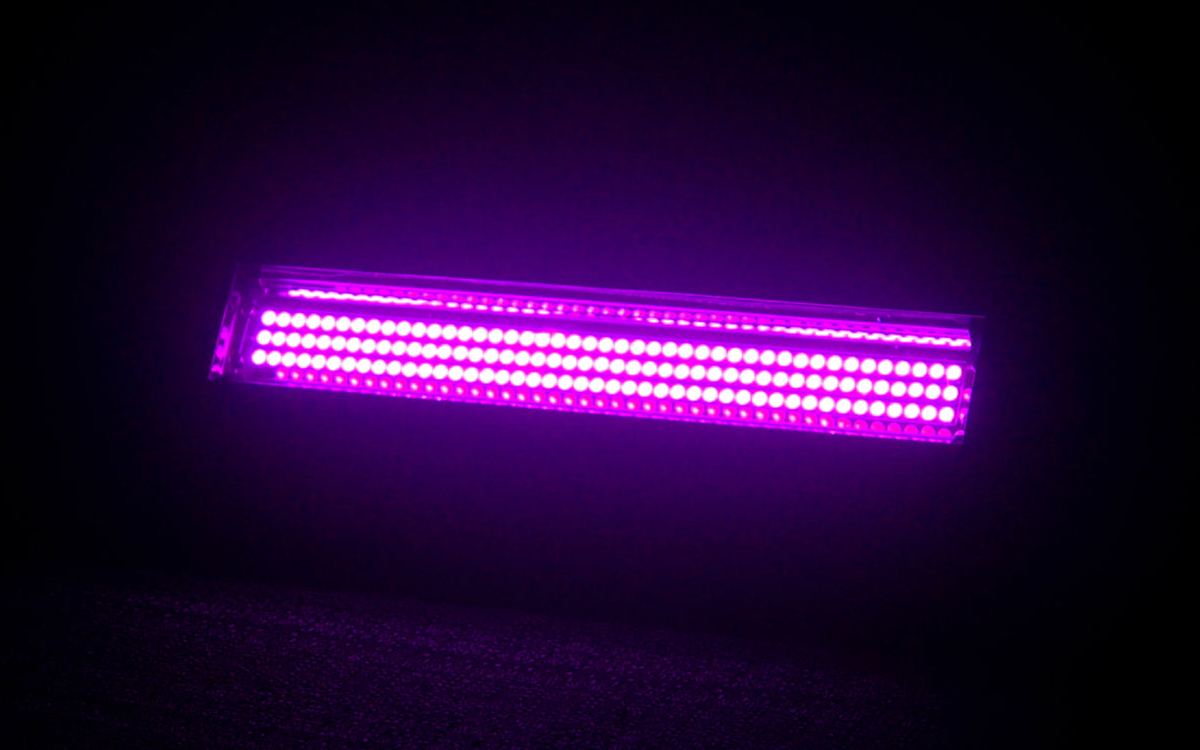

The MAX L™ is a versatile 3-in-1 RGB LED strobe, blinder, and wash effect light, part of the Blizzard Mixtape Series of affordable, high-quality lighting effects. Equipped with 132x 0.2W SMD 5050 RGB LEDs, it produces vibrant colors and dynamic visual effects suitable for concerts, stage shows, and entertainment venues. Its 80° wide beam angle allows broad coverage, creating immersive lighting experiences for audiences in both intimate and larger spaces. The fixture is ideal for applications requiring a combination of strobe, blinder, and wash effects in a single, compact unit.

Optically, the MAX L™ combines RGB color mixing with 15 ready-to-use color presets and built-in programs, including color jump and fade sequences. Strobe effects are adjustable from 1–30 Hz with options for pulse, ramp, and random patterns. The flash duration is controllable from 0–510 ms via DMX, allowing precise synchronization with music or show cues. Flicker-free, constant-current LEDs ensure smooth operation for video and live performance applications, producing luminous intensity of 220 lux at 1 meter and 64 lux at 2 meters.

Control of the MAX L™ is achieved through USITT DMX-512 protocol, supporting 1/2/3/4/6 channels for full versatility. A user-friendly LED control panel provides quick access to settings, while DMX functions include master/slave, auto, and sound-active modes. The fixture features a built-in microphone with adjustable sensitivity, enabling interactive sound-responsive effects. DMX connectivity is provided through 3-pin XLR input and output connections, and the fixture also operates in standalone mode for flexible deployment.

The MAX L™ is housed in a compact metal enclosure with a mounting bracket for easy installation. Power requirements are 100–240 VAC at 50–60 Hz, consuming 30W at 0.35A with a power factor of 0.61. Protection is ensured with a 2A, 250V fuse and IEC power input. The combination of strobe, blinder, and wash effects, along with broad beam coverage, RGB color mixing, and programmable effects, makes the MAX L™ a highly adaptable solution for professional stage, concert, and entertainment lighting applications.

https://www.blizzardpro.com/products/max-l
Click to expand...
Splendor
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with 132x 0.2W SMD 5050 LEDs and 80° Wide Coverage
  • RGB LED Strobe, Blinder, and Wash with Flicker-Free Constant-Current LEDs and Multiple Built-In Color Macros
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with 15 Color Presets and Adjustable 0-510ms Flash Duration
  • RGB LED Strobe, Blinder, and Wash with Built-In Pulse, Ramp, and Random Strobe Effects via DMX
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Auto, Standalone, Master/Slave, and Sound Active Modes
  • RGB LED Strobe, Blinder, and Wash with LED Control Panel and Variable 1-30Hz Electronic Strobe Frequency
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Flicker-Free LEDs and Smooth Operation for Video and Stage Applications
  • RGB LED Strobe, Blinder, and Wash with Adjustable Flash Duration and RGB Color Mixing for Live Shows
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Compact Metal Housing and Dual Mounting Brackets for Easy Installation
  • RGB LED Strobe, Blinder, and Wash with Built-In Microphone and Adjustable Sound Sensitivity for Interactive Performances
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Wide 80° Beam and Room-Filling Coverage for Clubs and Theaters
  • RGB LED Strobe, Blinder, and Wash with 132 High-Output SMD 5050 LEDs and Bright RGB Color Mixing
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Auto Programs and Smooth Constant-Current LED Driver for Flicker-Free Effects
  • RGB LED Strobe, Blinder, and Wash with Built-In Color Jump and Fade Programs for Dynamic Stage Lighting
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Multiple DMX Channels and Full Control Over LED Pixels
  • RGB LED Strobe, Blinder, and Wash with Adjustable Flash Frequency and Duration for Precise Strobe Effects
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with 132x 0.2W LEDs and Flicker-Free Constant-Current Driver
  • RGB LED Strobe, Blinder, and Wash with Sound Active Programs and DMX Auto Mode for Versatile Stage Shows
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Compact Metal Housing and Reliable IEC Power Input and Fuse Protection
  • RGB LED Strobe, Blinder, and Wash with Wide Beam Angle and RGB Color Mixing for Club, Theater, or Stage Use
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Built-In Strobe Effects and Color Macros for Dynamic Visuals
  • RGB LED Strobe, Blinder, and Wash with Auto, Master/Slave, Standalone, and Sound Active Programs for Flexible Control
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with 132 High-Output RGB LEDs and Smooth DMX Operation for Stage Shows
  • RGB LED Strobe, Blinder, and Wash with Variable Electronic Strobe from 1-30Hz and Adjustable Flash Duration Settings
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Compact Metal Housing, Mounting Bracket, and Flicker-Free LED Driver
  • RGB LED Strobe, Blinder, and Wash with RGB Color Mixing, 15 Color Presets, and Built-In Fade and Jump Programs
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Adjustable Flash Duration and Variable Strobe Frequency for Video and Stage
  • RGB LED Strobe, Blinder, and Wash with Built-In Microphone and Adjustable Sound Sensitivity for Interactive Stage Effects
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Auto, DMX, and Sound Active Modes for Maximum Lighting Flexibility
  • RGB LED Strobe, Blinder, and Wash with Bright 132x 0.2W SMD 5050 LEDs and Wide 80° Beam Coverage
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Multiple Built-In Color Macros and Smooth Constant-Current Flicker-Free LEDs
  • RGB LED Strobe, Blinder, and Wash with Adjustable Strobe Speed, Flash Duration, and Built-In Jump and Fade Programs
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Wide 80° Coverage, Flicker-Free LEDs, and Multiple DMX Channel Options
  • RGB LED Strobe, Blinder, and Wash with Compact Metal Housing, Dual Mounting Brackets, and Reliable Power Input
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Flicker-Free LEDs, Smooth DMX Operation, and Bright RGB Color Effects
  • RGB LED Strobe, Blinder, and Wash with Auto Programs, Standalone Mode, and Master/Slave DMX Operation for Stage
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with 132x 0.2W High-Output LEDs and Room-Filling Stage Coverage
  • RGB LED Strobe, Blinder, and Wash with Built-In Color Macros, Fade and Jump Programs, and Adjustable Sound Sensitivity
  • 3-in-1 RGB LED Strobe, Blinder, and Wash with Variable Electronic Strobe, RGB Color Mixing, and 80° Wide Beam
  • RGB LED Strobe, Blinder, and Wash with Auto, DMX512, Master/Slave, and Sound Active Modes for Flexible Shows
