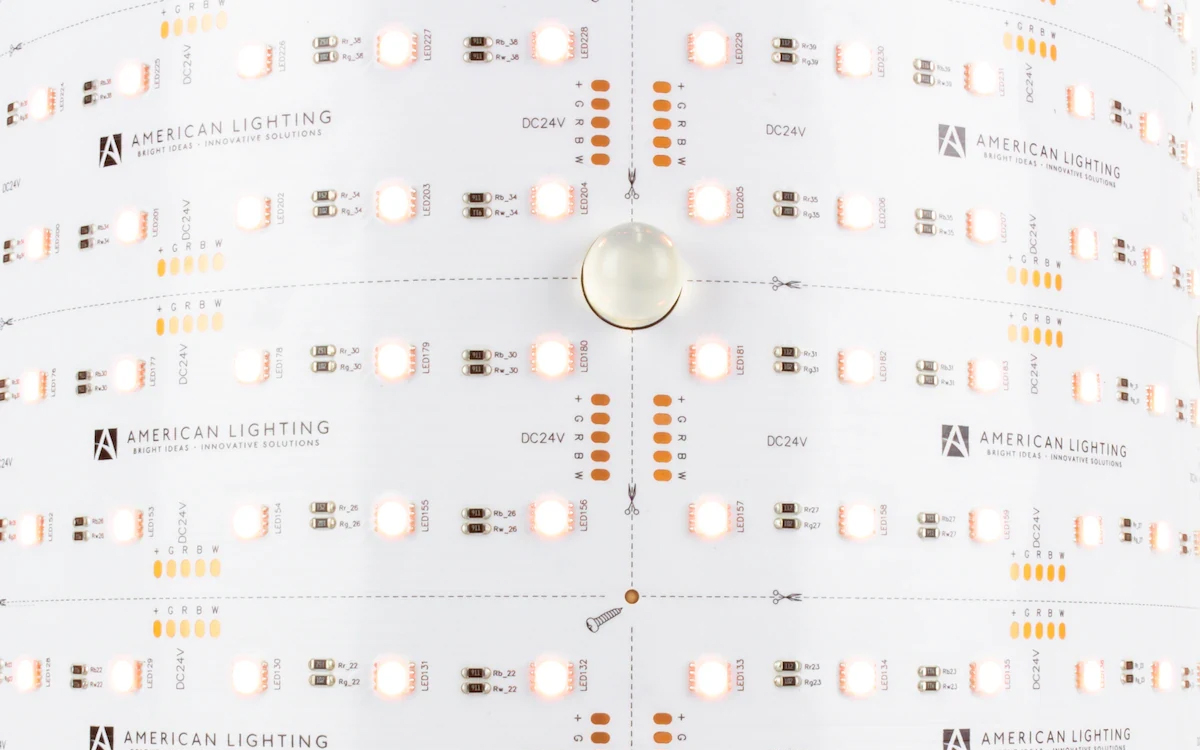

The Canvas Light Sheet with 4-in-1 RGB plus 3000K warm white capability is a versatile backlighting solution designed to bring vibrant, dynamic illumination to semi-transparent countertops, decorative panels, and architectural features. Its 12-inch by 24-inch format can be easily cut on-site in 6-by-2-inch increments, allowing installers to achieve a precise fit for custom layouts and unique design applications. Built-in half-inch spacers elevate the illuminated surface, creating a leveled and diffused glow that enhances visual uniformity and reduces glare, making it ideal for high-end design projects.
With its integrated RGB and warm white LEDs, the Canvas Light Sheet delivers both colorful effects and soft, ambient lighting from a single fixture. This flexibility makes it suitable for a wide range of applications, from hospitality and retail spaces to residential accent lighting. The sheet produces up to 1,000 lumens per panel with a high CRI of 90+, ensuring vivid, true-to-life color rendering whether in dynamic color-changing mode or steady warm white illumination. The 120-degree beam angle provides broad, even light distribution across the surface being backlit.
Engineered for straightforward installation, the Canvas Light Sheet features 3M peel-and-stick backing for quick mounting, along with built-in terminal ports that allow power input from any side to accommodate various wiring configurations. Integrated ½-inch stand-offs, spaced every 6 inches, are rated to hold up to 35 pounds each, giving the sheet a total load capacity of 220 pounds for structural stability in architectural settings.
Operating at 24V DC and consuming 20 watts per sheet, this fixture supports a maximum run of 96 watts and offers smooth PWM dimming from 5% to 100% for complete lighting control. The unit is IP54 rated for protection against dust and splashing water, cULus listed for safety compliance, and approved for damp location use. Weighing just 1.9 pounds with a slim 0.47-inch profile, the Canvas Light Sheet is easy to handle and install, and its 50,000-hour rated life with a 5-year limited warranty ensures long-lasting performance in both commercial and residential environments.
