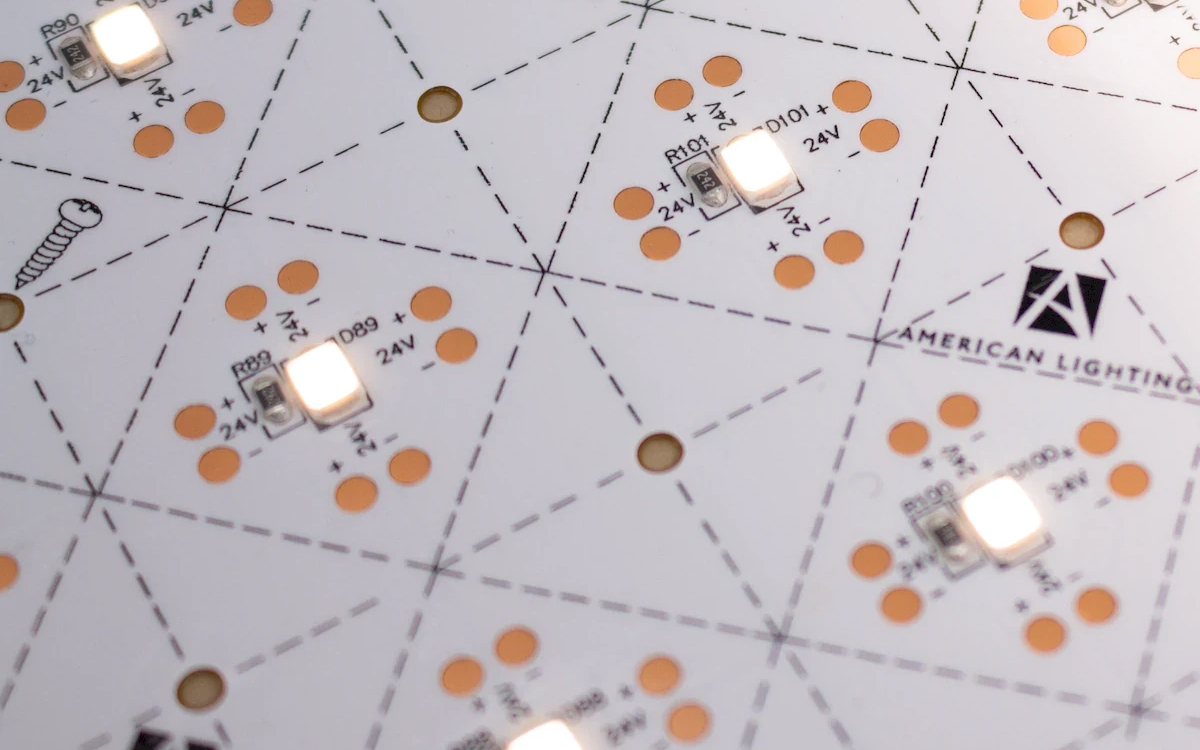

The Canvas Light Sheet is a high-performance lighting solution specifically designed for backlighting semi-transparent countertops, architectural features, and other decorative elements where even illumination and a clean aesthetic are essential. Measuring 12 inches high by 24 inches wide, each sheet can be easily field-cut on-site in 1-inch by 1-inch increments, allowing for a precise fit to match custom project dimensions. This flexibility ensures seamless integration into a wide variety of applications without the need for complex modifications. Built-in spacers elevate the illuminated surface by half an inch, creating a leveled, diffused effect that enhances the natural beauty of semi-translucent materials.
Engineered for versatility and ease of installation, the Canvas Light Sheet features 3M peel-and-stick backing for quick mounting, as well as integrated terminal ports that allow power to be run from any side of the sheet. Sturdy ½-inch stand-offs are spaced every 8 inches and are rated to support up to 35 pounds each, giving the sheet a total load-bearing capacity of 220 pounds. This makes it both a functional and durable solution for demanding architectural and design environments.
With an impressive light output of up to 2,050 lumens per sheet and color temperature options of 3000K, 4000K, or 5000K, the Canvas Light Sheet delivers bright, high-quality illumination with a CRI of 90+ for excellent color rendering. Its 120-degree optics ensure wide light distribution, while the 24V DC input voltage and 20W power consumption provide energy-efficient performance. The sheet is rated for a maximum run of 96W, offers a 50,000-hour rated life, and comes with a 5-year limited warranty for long-term reliability. Operating within a temperature range of -20°C (4°F) to 45°C (113°F), it is cULus listed for safety compliance, making it suitable for a wide range of residential and commercial installations.
