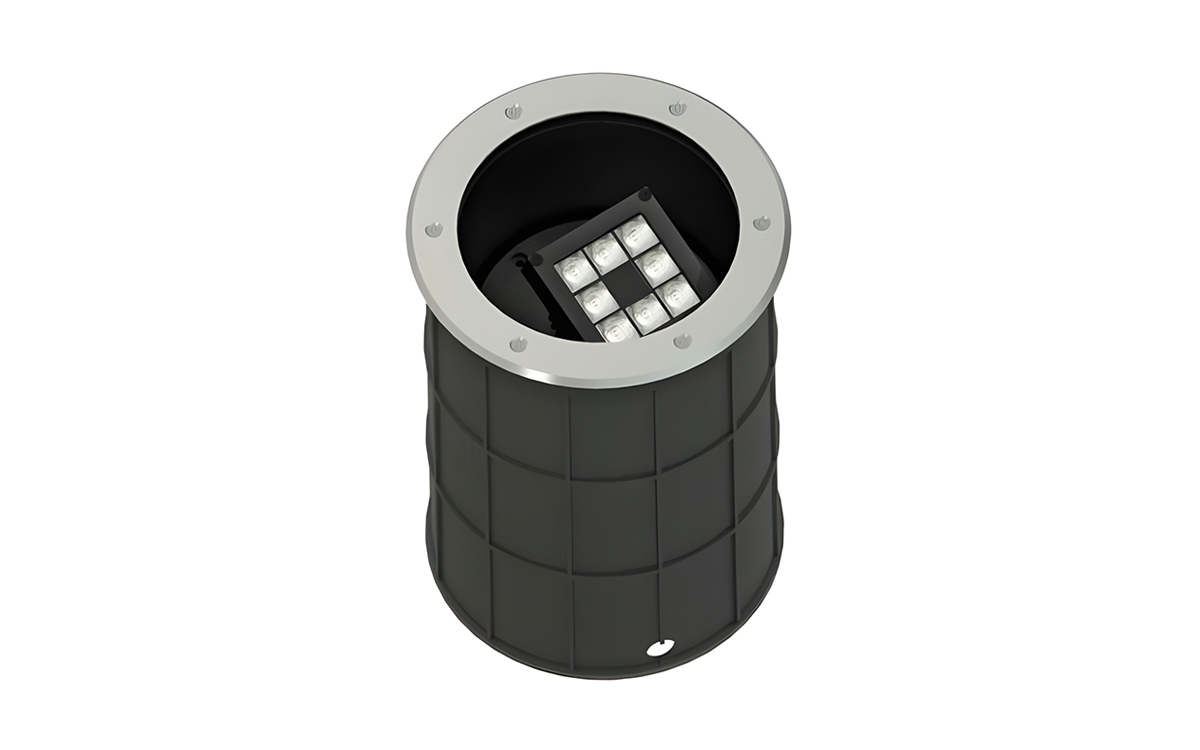

The Revo Inground is a high-performance, sustainable lighting fixture designed for demanding outdoor environments. With more than 200 different configuration options, it offers exceptional flexibility, making it easy to find the ideal setup for architectural, landscape, and public space applications. Its robust design and advanced features ensure both lasting performance and visual impact.
At the core of its performance is a powerful 20-watt high-output LED delivering up to 2000 lumens, housed in a durable IP67-rated body. The fixture features a marine-grade 316 stainless steel front ring, ABS anti-corrosion housing, and a die-cast aluminum body, making it well-suited for wet, damp, and coastal environments. It also includes a gel mold set to guarantee a waterproof connection, ensuring long-term reliability.
One of the standout features of the Revo Inground is its beam adjustability. Thanks to an internal solid ball joint, the light direction can be adjusted vertically up to 50°, even after installation—ideal for fine-tuning illumination on-site. The optics are easily interchangeable, allowing users to modify beam angles (from narrow 8º to wide 80º or elliptical 12x46º) to suit specific lighting effects or coverage requirements.
The fixture supports a wide selection of LED colors, including static whites from 2200K to 4000K, as well as amber, blue, red, green, and limegreen, allowing designers to create dynamic and atmospheric lighting schemes. With a CRI of ~80, the fixture ensures faithful color rendering in architectural applications.
Built for efficiency and longevity, the Revo Inground uses internal drivers and supports dimming via mains or Casambi control. A ventilation gland with a Gore-Tex membrane minimizes the risk of condensation, further enhancing durability. The future-proof modular design allows for part replacements and upgrades, ensuring the fixture remains up to date over time.
Rated IK10 for impact resistance and certified to CE standards, the Revo Inground operates within ambient temperatures from -10°C to 40°C. It includes a 200 cm open-end cable for flexible connection and is compatible with a wide input voltage range from 200 to 277 VAC. With sustainability, adaptability, and rugged performance at its core, the Revo Inground is an ideal solution for modern exterior lighting projects.
