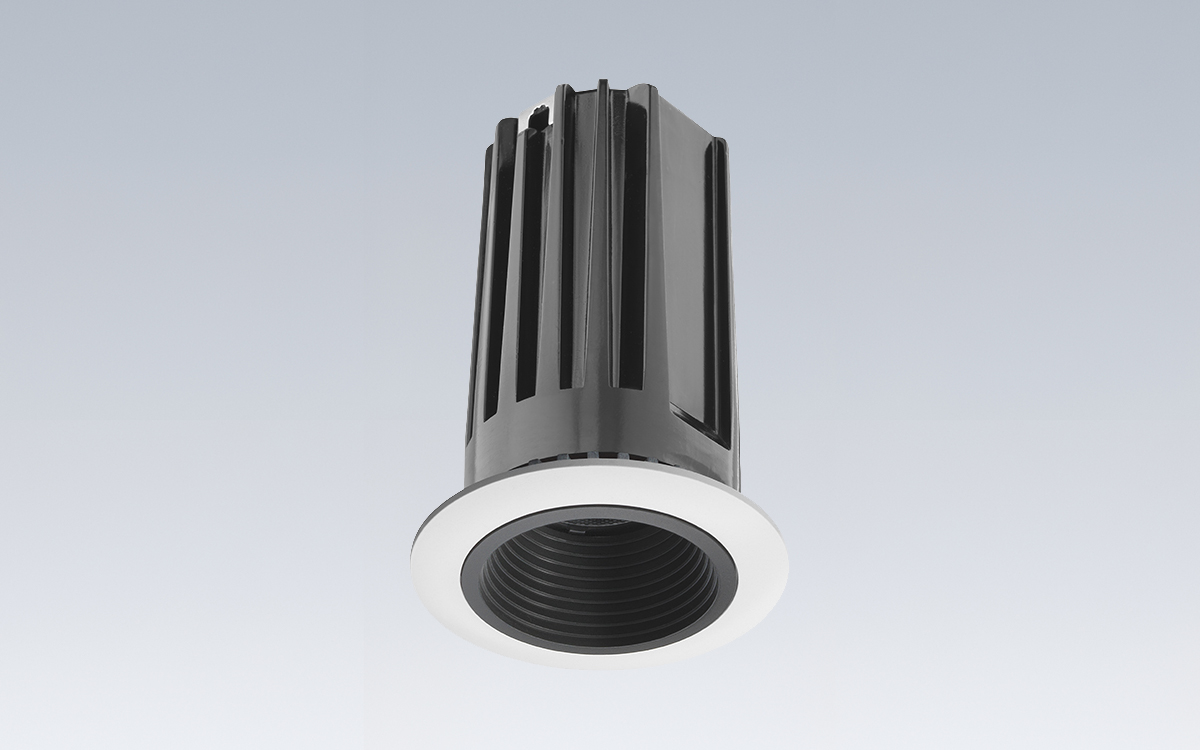

2-Inch Recessed LED Downlight for Wet Locations with UL and cUL Listings and Air Leakage Compliance

The 2-inch aperture recessed LED downlight is IC-rated for installation in both insulated and non-insulated ceilings, making it suitable for a variety of residential and commercial applications. With a compact, low-profile form factor, the fixture fits seamlessly into 2 x 6 construction while delivering up to 1000 lumens of bright white light, approximating the optical performance of a 75W MR16 halogen lamp. The fixture is rated for 50,000 hours of operation and includes a five-year limited warranty on the LED components, ensuring long-term reliability.

The LED light engine provides exceptional fixture-to-fixture color consistency within a 3-step MacAdam ellipse, with color temperature options of 2700K, 3000K, 3500K, and 4000K. A minimum CRI of 80 or 90 ensures accurate color rendering for all applications. Modular optics are available and field-interchangeable, with 18° spot, 24° narrow flood, or 40° flood distributions to accommodate different lighting requirements. The trim offers a clean ceiling interface with a die-cast beveled knife-edge design, available in white, black, satin nickel, or brushed bronze finishes. Die-cast baffles are also available in matching finishes.

The LED driver can be a dedicated 120-volt unit or a universal MVOLT driver compatible with 120–277V AC at 50/60 Hz, with a power factor greater than 0.9. The dedicated 120V driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers, while the universal driver is compatible with most 0–10V dimmers. The downlight is rated for 50,000 hours at 70% lumen maintenance. Fixtures with 90 CRI comply with California Title 24 JA8-2019 high-efficacy requirements, meet air leakage standards per ASTM E283, and are UL and cUL listed for wet locations. The 2NCHSG option is compatible with spray foam insulation up to an R-value of 3.2 per inch.

The junction box includes two ½-inch knockouts with pryout slots and push-in electrical connectors for easy field connections. Remodel-style plaster frames install from below the ceiling and accommodate thicknesses from ½” to 1”. For ceilings up to 1½”, the 2JCTA150 model is recommended. The new construction mounting frame, 2NCMFLP, incorporates the patented Real Nail 3® telescoping bar hangers, allowing precise fixture placement and secure wiring prior to ceiling installation. These bars include a removable nail for repositioning in wood joist construction and integral T-bar notch and clip for suspended ceilings. The Real Nail 3 system supports 2x8 construction and simplifies placement within 24-inch O.C. joists or suspended ceiling grids.

The 2-inch LED trim modules complement these housings with a sophisticated, upscale aesthetic that enhances modern residential and commercial interiors. Ultra-efficient, the trim modules produce up to 1000 lumens while consuming as little as 10 watts. A wide range of trim styles and finishes—including baffle and open designs in black, nickel, unfinished, or white—ensures design flexibility. The modules are compatible with 2-inch Juno driver housings (2LEDDRIVER), supporting recessed installation with voltage ratings from 120 to 277V. Dimming is possible through forward-phase, reverse-phase, Triac, or 0–10V protocols, providing adaptable lighting control for any application.

With a small aperture, low-profile housing, versatile trim options, and precise color rendering, the 2-inch recessed LED downlight offers a designer-quality appearance with exceptional efficiency and long-term reliability for both wet and dry locations.
